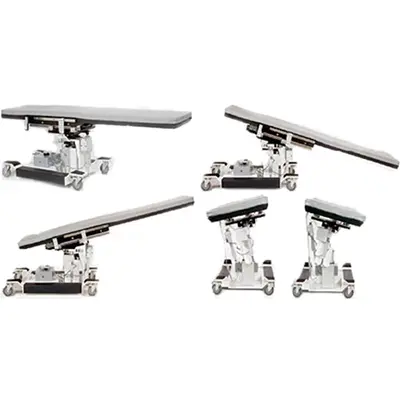

Morgan Positioning Pro Imaging Table

Morgan Positioning Pro Features

The Morgan MEDesign Positioning Pro Imaging Table was designed for C-arm and fluoroscopy uses. The table comes with a high-density foam pad. The Positioning Pro table has a durable metal frame that can hold patients who weigh up to 650 lbs.

Motorized Motions FLTLT-FW

• Height adjustment (nominal 10″ of travel, 33″ low to 43″ high)
• Lateral Roll (L and R) (nominal 12 – 15 degrees)
• Trendelenburg & reverse Trendelenburg tilts (nominal 12 – 15 degrees)
• Extend-retract – head-to-foot travel (nominal 12″) – obtain the perfect fluoro view within seconds, minimizing the movement of the C-Arm
• Side-to-side transverse top (nominal 8″) travel allows for a 4-way powered “floating” top regardless of tilt orientation.

Motorized Motions EXLT-FW

• Height adjustment (nominal 10″ of travel, 29″ low to 39″ high)
• Lateral tilt (nominal 12 – 15 degrees)
• Trendelenburg & reverse Trendelenburg tilts (nominal 12 – 15 degrees)
• Extend-retract – head-to-foot travel (nominal 12″) – extend-retract
• functions regardless of tilt orientation, minimizing the movement of the C-Arm

Rectangular-shaped radiolucent carbon-fiber composite top

• Chamfered radiolucent edge treatment
• 96″ L x 22″ W with cantilevered 48″ metal-free imaging
