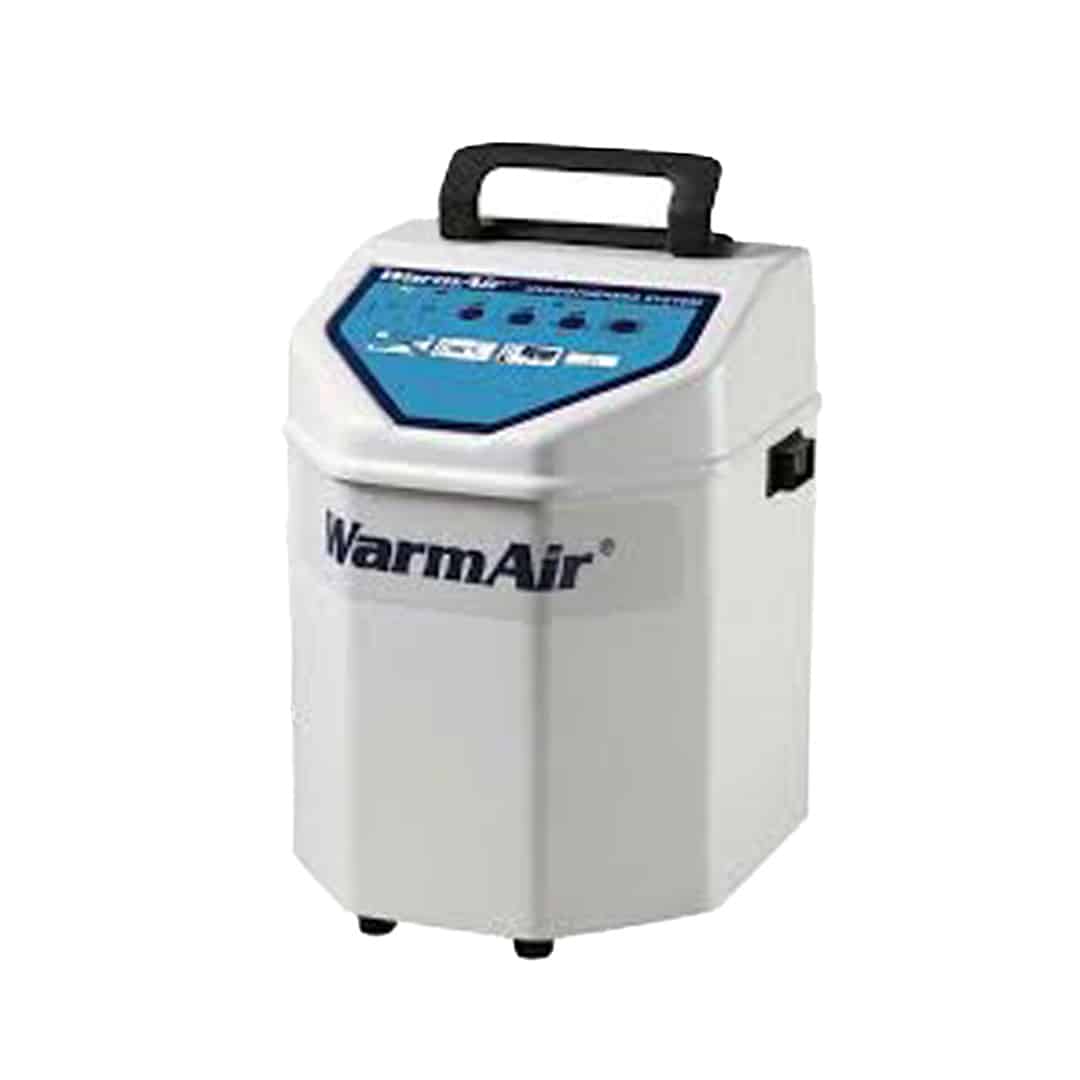

CSZ WarmAir Model 135
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
CSZ WarmAir Model 135 Features
The CSZ WarmAir Model 135 patient warmer is a compact system that is designed to help maintain the patient’s body temperature and reduce the risk of hypothermia during surgical procedures, recovery, or in a critical care setting. This is a convective warming device that delivers a controlled flow of warm air through a flexible hose to blankets in turn providing a consistent and safe heat transfer. With an easy-to-use interface, durable build, and built-in safety measures, the Model 135 is well-suited for hospitals, surgical centers, and other healthcare environments.
- Multiple temperature modes provide four settings, Fan Only, Low, Medium, and High, for adaptable patient warming needs.
- Integrated safety alarms offer audible and visual alerts for over-temperature and under-temperature conditions to help prevent injury.
- High-efficiency air filtration uses a 0.2-micron filter to maintain clean airflow and support patient safety.
- Durable construction combines impact-resistant plastic with an aluminum substructure for long-lasting use in busy clinical settings.

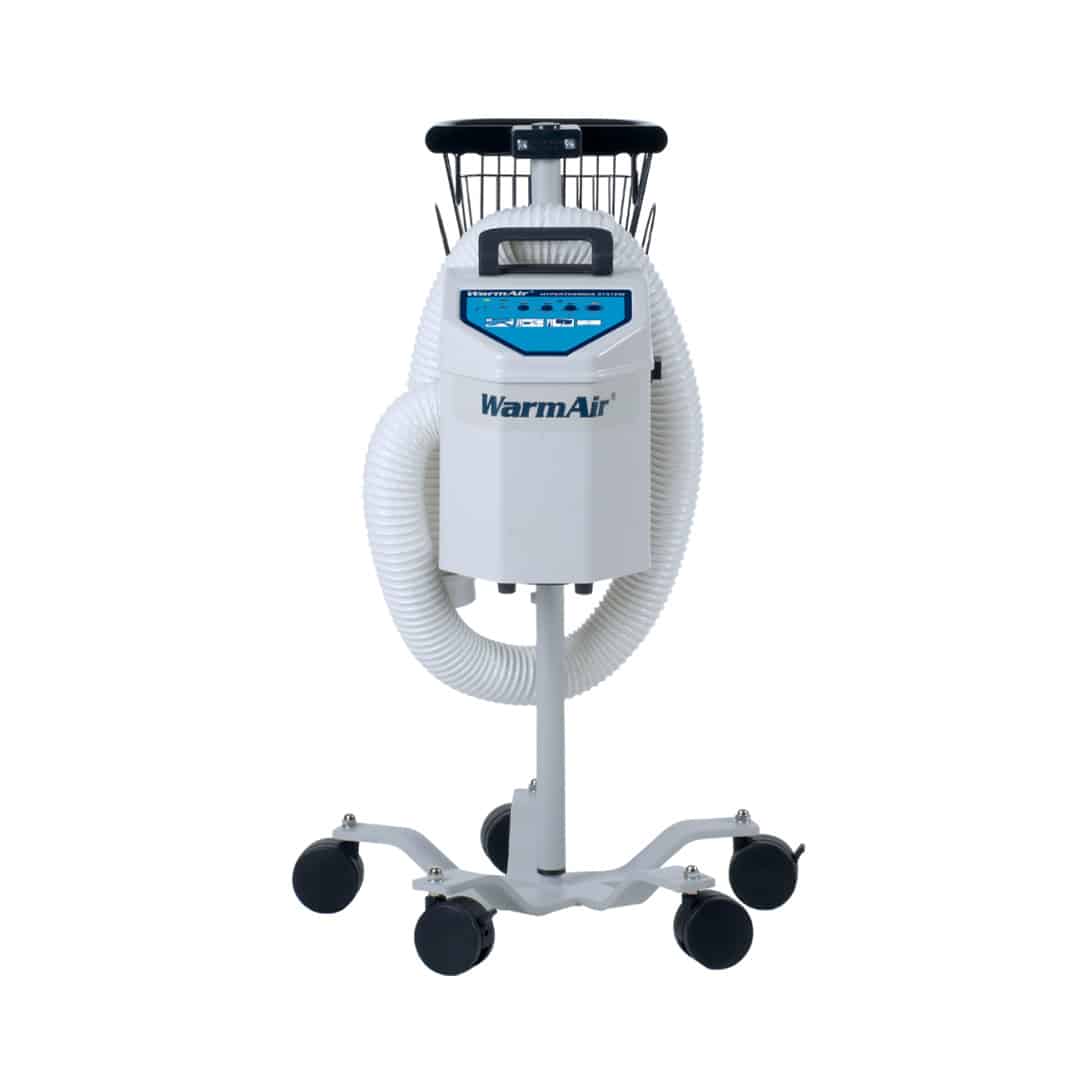

- Flexible mounting options allow attachment to IV poles, bed rails, or stands for convenient placement in various care areas.
CSZ WarmAir Model 135 Specifications
Dimensions
- Height: 13.5 in (34.3 cm)
- Width: 8.75 in (22.2 cm)
- Depth: 8.75 in (22.2 cm)
- Weight: 13.5 lbs (6.1 kg)
Power
- Voltage Options:
- 100V/50-60Hz (15A)
- 110-120V/50-60Hz (15A)
- 220-240V/50-60Hz (7A or 13A for British models)
- Power Cord: 15 ft (4.6 m) hospital-grade, with ground resistance ≤0.2Ω.
- Earth Leakage Current: <300 µA.
Environmental Conditions
- Operating Temperature: 15°C to 30°C (59°F to 86°F).
- Storage Temperature: -40°C to 50°C (-40°F to 122°F).
- Humidity Range: 20%–95% (non-condensing).
Performance
- Heating Time: Reaches 37°C (98.6°F) from 23°C in ~3 minutes.
- Hose Length: 6 ft (1.8 m) flexible hose.
- Service Life: 7 years with proper maintenance.
Safety Systems
- Primary Over-Temperature Limit: 52°C ±3°C (hose outlet).
- Secondary Over-Temperature Limit: ≤64°C (hose outlet).
- Under-Temperature Limit: ≤29.4°C (85°F).
Refurbished CSZ WarmAir Model 135 Patient Warmer
Soma Tech Intl offers the CSZ WarmAir Model 135 Patient Warmer up to 50% below OEM prices with the same service and warranty as new. The Model 135 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the WarmAir Model 135, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on patient warmers. If necessary, parts are replaced to ensure that all aspects of the Model 135 meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the Model 135 is functioning like new, it undergoes a specialized cosmetic restoration. The Model 135 is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Model 135 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished patient warmer, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase patient warmers. If you or your facility are looking to sell your CSZ WarmAir Model 135, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
