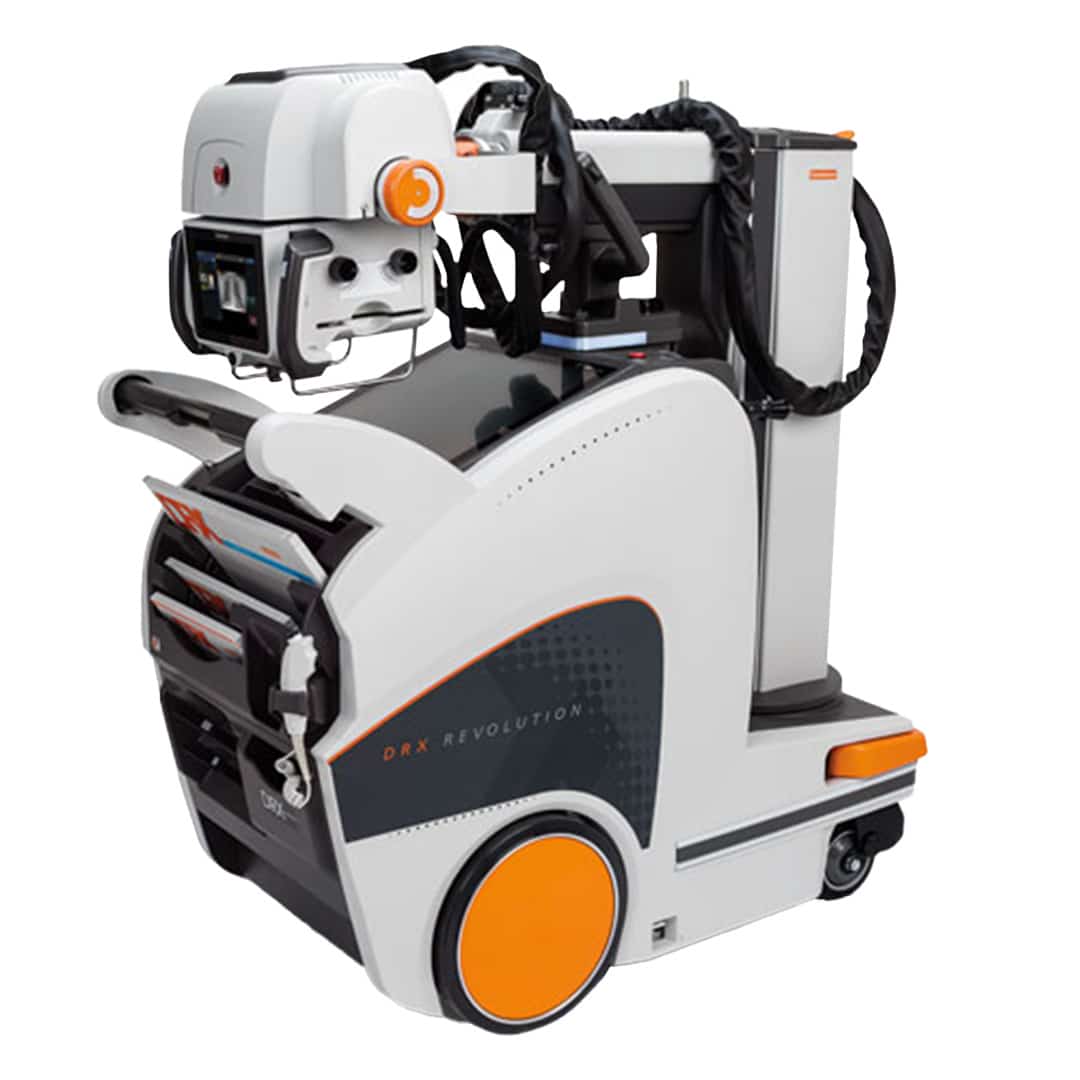

Carestream DRX-Revolution

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Carestream DRX-Revolution Features

The Carestream DRX-Revolution is a mobile X-ray System with many features setting it apart from other X-ray systems. The DRX-Revolution allows for better navigation across rooms and hallways, better quality, faster images, and faster workflow with its intuitive design, versatility, and even more compatibility.

  • DRX-Revolution has great maneuverability and visibility
  • Its Dual motor drive makes moving the DRX-Revolution effortless
  • A 32kW generator, dual focal spot tube, and EVP Plus provide superb image quality
  • Touchscreen monitors at both the tube head and main display
  • On-board storage at your fingertips

Carestream DRX-Revolution Specifications


  • Height (column collapsed): 51.0 in (129.5 cm)
  • Height (column extended): 77.0 in (195.6 cm)
  • Width: 22.7 in (57.6 cm)
  • Depth: 48.0 in (121.9 cm)
  • Weight: 1268 lbs (575 kg)


  • Maximum Power Output: 32kW
  • kVp Range: 40 to 150 kVp
  • mAs Range: 0.1 to 320 mAs

X-ray Tube

  • Focal Spot Size: 0.6 mm / 1.2 mm
  • Target Angle: 14 degrees
  • Anode Heat Capacity: 300 kHU (212 kJ)

Tube Head Movement

  • Maximum SID to Floor: 79.6 in. (202.2 cm)
  • Minimum SID to Floor: 26.9 in. (68.3 cm)
  • Tube Arm Reach: 53.2 in. (135.1 cm)
  • Column Rotation Range: +/- 270 degrees
  • Tube Rotation: +180 degrees CW/ -135 degrees CCW
  • Tube Tilt: -10 to +90 degrees
  • Collimator Rotation Range: +/- 90 degrees

Refurbished Carestream DRX-Revolution Portable X-Ray Machine

Soma Tech Intl offers the Carestream DRX-Revolution Portable X-Ray Machines up to 50% below OEM prices with the same service and warranty as new. The Carestream DRX-Revolution is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Carestream DRX-Revolution, it is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on Portable X-ray machines. If necessary, parts are replaced to make sure that all aspects of the Carestream DRX-Revolution are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Carestream DRX-Revolution Portable X-Ray Machine is working like new it undergoes a special cosmetic restoration process. The Carestream DRX-Revolution is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the X-ray machine is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Carestream DRX-Revolution Portable X-Ray Machine contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Carestream DRX-Revolution. If you or your facility is looking to sell your Carestream DRX-Revolution Portable X-Ray Machine, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Carestream DRX-Revolution to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our Portable X-Ray Machines?

Soma Tech Intl offers a wide range of portable X-ray machines. If you have any questions about our X-ray machines or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your portable X-ray machines? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.

Contact Us
