Masimo Rad-67
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.

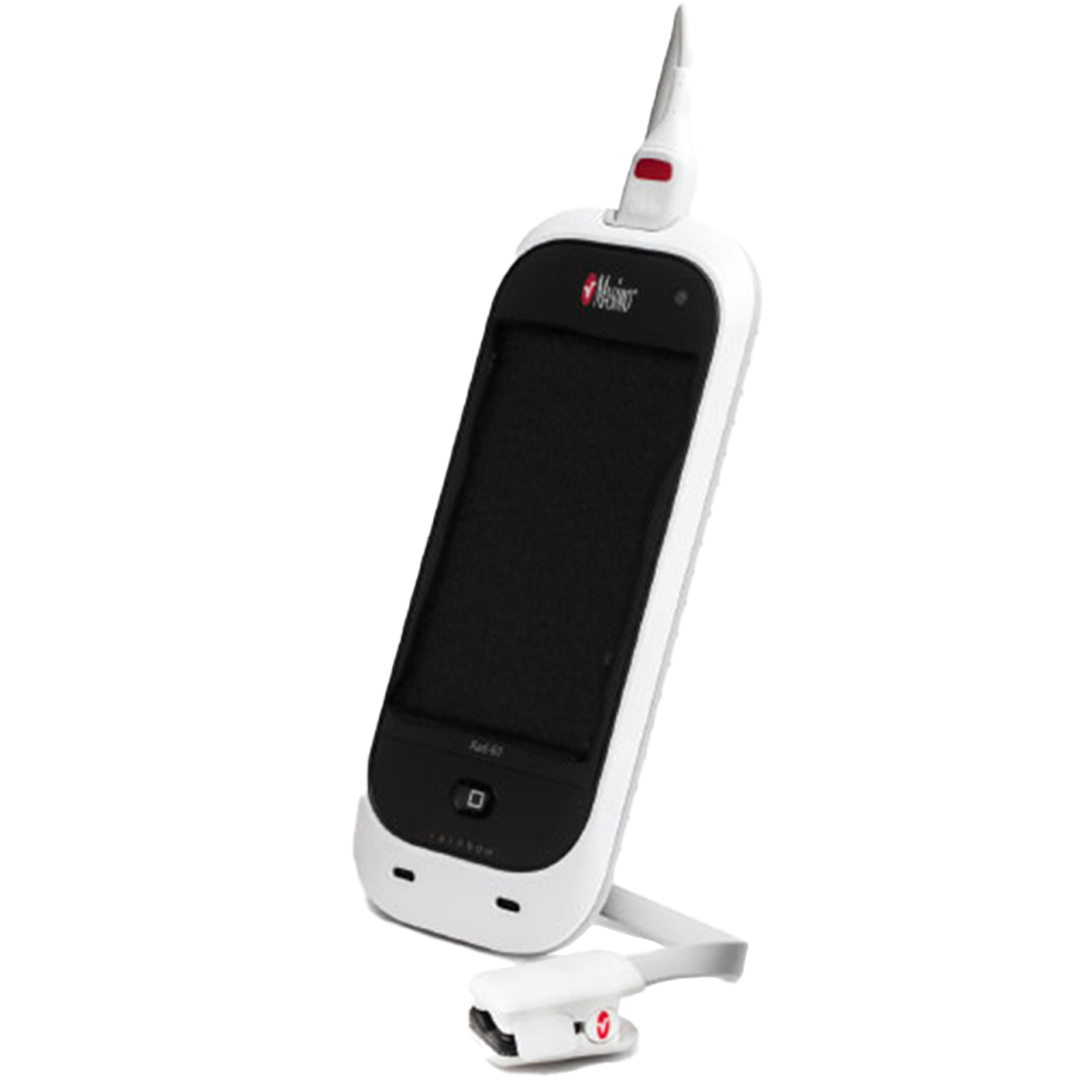

Masimo Rad-67 Pulse Oximeter Features
The Rad-67 Pulse co-oximeter is designed to non-invasively measure the functional oxygen saturation of arterial hemoglobin (SpO2), pulse rate (PR), and perfusion index (Pi). In addition, it offers the option for non-invasive measurement of total hemoglobin (SpHb). With the inclusion of special technology, the Rad-67 showcases its exceptional performance. It is capable of accurately measuring SpO2 and pulse rate even in challenging conditions such as motion and low perfusion environments. Moreover, the device allows for convenient spot-check monitoring of SpHb, providing an easy way to keep track of total hemoglobin levels. The Rad-67 is also equipped with wireless radio technology, enabling seamless transfer of parameter data and connection to wireless printers.
- Exclusive cutting edge technology only by Masimo.
- SpO2 and pulse rate measurements in dynamic and low perfusion settings.
- Utilization of wireless radio for transmitting parameter data and linking to wireless printers.
Masimo Rad-67 Specifications
Dimensions
- Height: 7.6 in (19.4 cm)
- Length: 3.2 in (8.2 cm)
- Width: 0.9 in (2.4 cm)
- Title: 0.81 lbs (.37 kg)
Environmental
- Operating Temperature: 0°C to 35°C (32°F to 95°F)
- Storage/Transport Temperature: -20°C to 60°C [8] (-4°F to 140°F)
- Operating Humidity: 10% to 95%, non-condensing
- Storage/Transport Humidity: 10% to 95%, non-condensing
- Operating Atmospheric Pressure: 540 mbar to 1,060 mbar (540 hPa to 1060 hPa)
Battery
- Type Lithium ion
- Capacity 6 hours [6]
- Charging Time 6 hours [7]
Electrical
- AC Power (Power Supply) requirements 100-240Vac, 50/60Hz, 0.5A
- Power consumption <15W
Display Indictators
- Display Update Rate: 1 Second
- Type Backlit Active Matrix: TFT LCD
- Pixels: 720 dots x 1280 dots
Wireless Specifications
- Type WLAN Radio: IEEE 802.11 a/b/g/n
- Frequency: 2.4 GHz – 802.11b/g/n: 2412-2472 MHz 5.0 GHz – 802.11a/n: 5150-5250 MHz, 5250-5350 MHz, 5470-5725 MHz, 5725-5825 MHz
- Max Peak Output Power: 2.4 G: 17.1 dBm (Conducted); Max Peak Output Power 2.4 G: 17.2 dBm (EIRP); 5 G: 15.3 dBm (Conducted); 5 G: 16.9 dBm (EIRP);
- Available Data Rates:
802.11a – 6, 9, 12, 18, 24, 36, 48, 54 Mbps.
802.11b – 1, 2, 5.5, 11 Mbps.
802.11g – 6, 9, 12, 18, 24, 36, 48, 54 Mbps.
802.11n – MCS 0-7 HT20/HT40
Refurbished Masimo Rad 67 Pulse Oximeter
Soma Tech Intl offers Refurbished Rad 67’s up to 50% below OEM prices with the same service and warranty as new. The Masimo Rad 67 pulse oximeter is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts the Masimo pulse oximeter, it’s carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on the Rad 67. If necessary, parts are replaced to make sure that all aspects of the pulse oximeter are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Masimo Rad pulse oximeter is working like new it undergoes a special cosmetic restoration process. The Masimo pulse oximeter is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the pulse oximeter functions and looks like new. Soma Tech is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the pulse oximeter is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Masimo Rad-67 pulse oximeter contact soma at [email protected] or call us at 1-800-438-7662.
Soma Tech Intl is also actively looking to purchase a Masimo Rad-67 pulse oxiemter’s. If you or your facility is looking to sell your Masimo pulse oximeter, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Masimo Pulse Oximeter to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Tech is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
