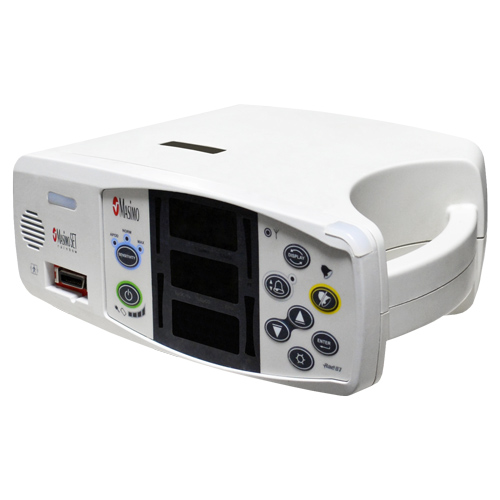

Masimo Rad-87

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download Specifications

Masimo Rad-87 Features

The Masimo Rad-87 pulse oximeter with Masimo Rainbow SET technology. It’s a noninvasive pulse co-oximeter that monitors and displays SpO2, SpCO, SpMet, PI, PVI, and pulse rate. The Optional features on the Rad 87 are the SpCO, SpMet, and PVI. The Masimo Rad-87 comes in four different models that include horizontal, vertical, and with or without radio. Using the same basic principles for measuring the oxygen saturation in the blood with spectrophotometry, the Masimo Radical 87 can also calculate SpCO and SpMet.

  • Uses multi-wavelength spectrophotometry to calculate SpO2, SpCO, SpMet, PI, PVI, and pulse rate.
  • Bar graph displays for quick visual identification of SIQ, perfusion index, and pleth variability index.
  • Full Masimo SET technology.
  • Multicolored LED display.

Masimo Rad-87 Specifications

Dimensions

  • Height: 3 in (7.6 cm)
  • Width: 8.2 in (20.8 cm)
  • Depth: 6 in (15.2 cm)
  • Weight: 2.1 lb (0.908 kg)

Measurement Range

  • SpO2: 0 -100%
  • SpMet: 0 – 99.9%
  • SpCO: 0 – 99%
  • Pulse Rate: 25 – 240 (bpm)
  • Perfusion Index: 0.02% – 20%
  • Pleth Variability Index: 0 – 100%

Arterial Oxygen Saturation Accuracy

  • Saturation 60% to 80%
    • No Motion: Adults, Infants, Pediatrics ±3%
  • Saturation 70% to 100%
    • No Motion: Adults, Infants, Pediatrics: ± 2%; Neonates * ± 3%
    • Motion: Adults, Infants, Pediatrics, Neonates: ± 3%
    • Low Perfusion: Adults, Infants, Pediatrics, Neonates: ± 2%

Pulse Rate Accuracy

  • No Motion
    • Adults, Infants, Pediatrics, Neonates: ± 3 bpm
  • Motion
    • Adults, Infants, Pediatrics, Neonates: ± 5 bpm
  • Low Perfusion
    • Adults, Infants, Pediatrics, Neonates: ± 3 bpm

SpCO Accuracy (Carboxyhemoglobin saturation)

  • Adults, Infants, Pediatrics: 1% – 40% ± 3%

SpMet Accuracy (Methemoglobin Saturation)

  • Adults, Infants, Pediatrics, Neonates: 1% – 15% ± 1%

Resolution

  • Arterial Oxygen Saturation (SpO2): 1%
  • Carboxyhemoglobin Saturation (SpCO): 1%
  • Methemoglobin Saturation (SpMet): 0 .1%
  • Pulse Rate (bpm): 1 bpm
