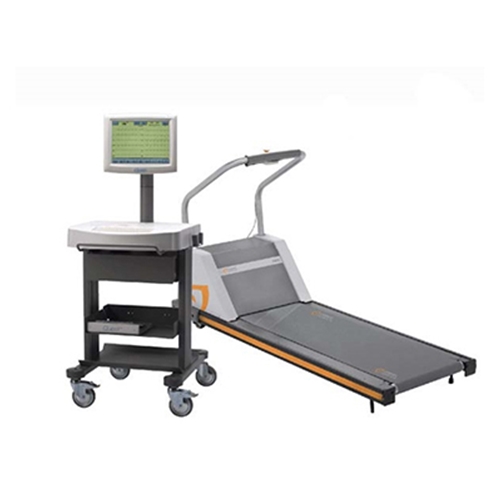

Burdick Quest Stress Test System
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included. Download Specifications
Burdick Quest Stress Test System Features
The Quest system is right for offices looking for value, simplicity, and increased patient throughput. The system is easy to use because it features a touch screen with convenient pull-down menus for intuitive workflow. Burdick’s proprietary Logistep guide walks users through the test by highlighting the next step. We put everything you need on one screen, so there’s no need for toggling among screens. And to save you time, we added an easy way to correct unintentional phase changes without having to start all over again.
- The easy, intuitive touch screen lets you focus on the patient
- Performs both resting 12-lead ECGs and stress tests on one system
- Accurate ECG data acquired at the patient eliminating non-cardiac electrical noise
- Flexible programming means you choose the protocol
- Generous storage, enhanced online data editing, and several data management options
- Full-range reporting offers over 15 different report configurations
- Digitally controlled treadmill maximizes system reliability
Burdick Quest Stress Test System Specifications
Dimensions
- 60” x 25” x 34” (152 cm x 63 cm x 86 cm)
Weight
- <170 lbs. (78 kg)
Monitor
- Type:15” High-resolution color with integrated touchscreen
- Mount: User-adjustable tilt (•15°) and swivel (•90°)
- Content: 3, 4, or 6 ECG channels, real-time; information and alphanumeric data
- Displayed leads: User-selectable during a test; (3-, 4- and 6-channel)
- Waveform display: •8 seconds per lead of ECG in 3-channel mode
Keyboard
- Main keyboard: QWERTY layout
- Ergometer control: Dedicated keys for ergometer speed, grade, start and stop
X-ray Power Control
- Auto and Manual Mode
Input/output
- Digital I/O: RS-232 interfaces to a treadmill, bicycle ergometer, and optional automatic blood pressure monitor
- TTL pulse for QRS detection, 50 msec. delay
- Analog output: 4 user-selectable outputs
Power Requirements
- 115/230V AC +/- 10%, 2.5/1.25 A, 50/60 Hz nominal 300 VA max
Chart Recorder
- Paper type: Pre-grided thermal paper, Z-fold, 8.5” x 11” (US letter) or 210 mm x 300 mm (A4)
- Printout device: 216 mm thermal dot array
- Paper speed: 10, 25, 50 mm/sec. +/- 2%
- Printing options: Multiple format ECG waveform and alphanumeric printing, diagnostic quality; Gain: 5, 10, 20 mm/mV +/- 5%
- Frequency response: 0.05 Hz to 150 Hz +/- 10%
- Muscle artifact filter: User selectable: Off, 20 Hz or 40 Hz; Baseline filter User-selectable: Off, 0.12 Hz or STABLE (meets or exceeds all 1990 AHA recommendations)
- Calibration signal: 1.0 mV for 200 msec. +/- 5%
ECG Computations
- Heart rate computation: 8-beat average, 30 bpm to 250 bpm, updated every second
- ST measurements: 20 sec. moving window with 10 sec. updates to the display and to reports
- ST parameters: Level, and slope for 12 leads simultaneously
- QRS detection channels: II, V2 and V5 with switching; Ectopic detection: Ventricular arrhythmias, unclassified
- ST reference points: User-selectable: E-point (QRS onset), J-Junction (QRS offset), ST point (0 msec. to 100 msec., 5 msec. interval) with display/printout annotation
Protocols
- Preprogrammed: Manual, Bruce, Modified Bruce, Balke, Naughton, Ellestad, Kattus, Ramp, Astrand, Modified Astrand, Pharmacological
- User-defined: 20 protocols with up to 30 stages each plus
- Warmup and Recovery phases
Patient Module
- Dimensions: 1.3″ x 4.3″ x 3.8″ (3.3 cm x 10.92 cm x 9.65 cm)
- Weight: <1 lb. (0.5 kg)
- Frequency response: 0.05 Hz to 150 Hz, +10% to -30% (maximum)
- Defibrillation protection: To 360 J, 5 kV
- Common mode rejection: >120 dB at 60 Hz
- Electrode offset tolerance: +/- 300 mV
- Line frequency filters: User-selectable 50 Hz, 60 Hz, or off
- Noise: <30 µVpp
- Pacemaker pulse indication: Per EC13
- Input channels: Simultaneous acquisition of 8 leads plus 4 derived leads
- Defibrillation recovery: Maximum recovery time is 8 seconds
- Patient connection: 10 replaceable leads
