Stryker 1000 Stretcher
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

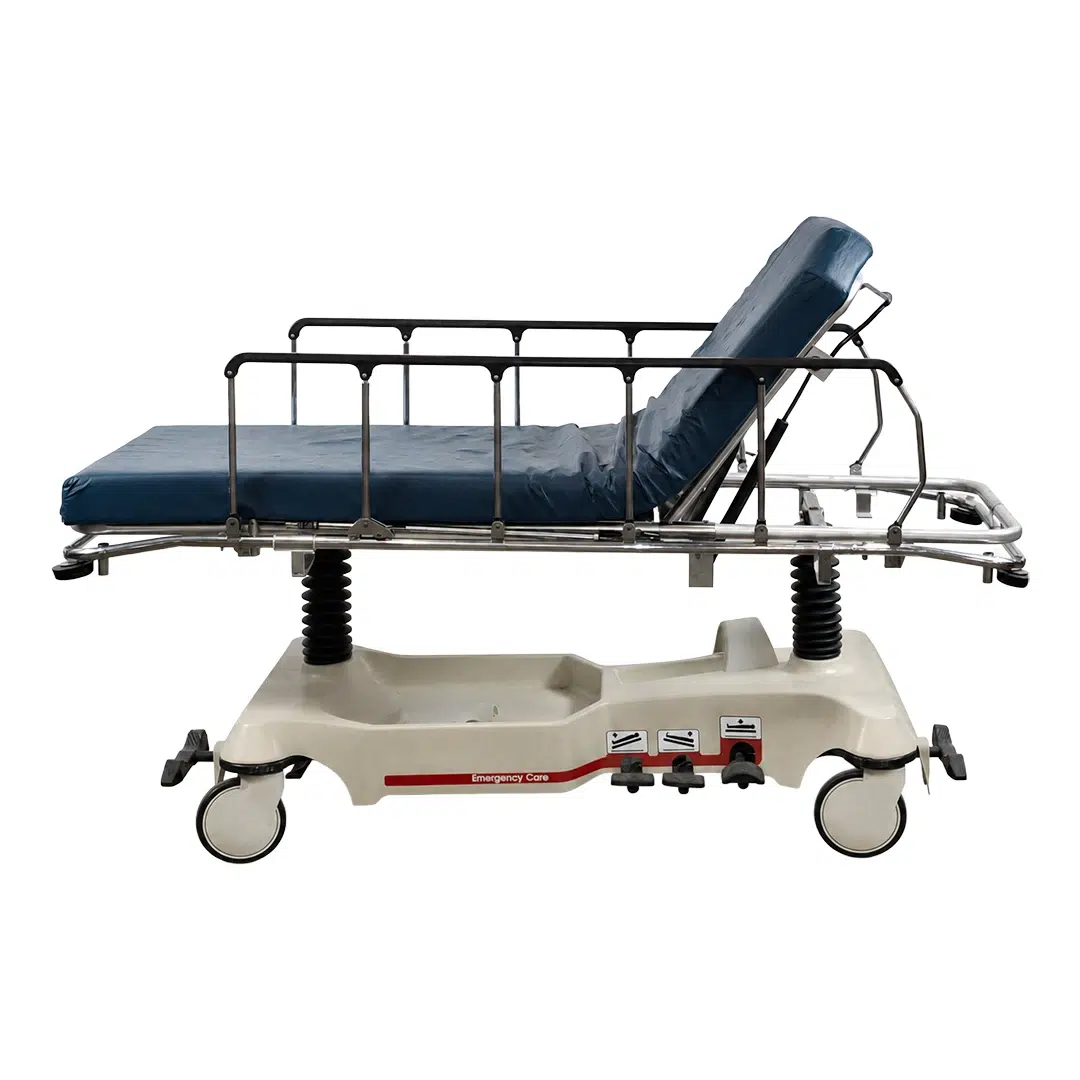

Stryker 1000 Emergency Care Stretcher
The Stryker 1000 is a manual emergency care stretcher that uses a hydraulic pump base and a pneumatic-assisted Fowler section for positioning. Height is adjusted with foot pedals connected to a hydraulic jack at each end of the base, moving the stretcher through a range of roughly 22″ to 35″. The Fowler backrest adjusts from flat to 90 degrees, the knee gatch section raises up to 35 degrees, and the base can be tilted into Trendelenburg or reverse Trendelenburg between +12 and -18 degrees. The Stryker 1000 carries a rated weight capacity of 500 pounds on a 78″ x 28″ bed surface.
- Hydraulic Height Adjustment: Foot pedal-operated hydraulic jacks raise and lower the stretcher between approximately 22″ and 35″.
- Pneumatic Fowler Section: Backrest adjusts from flat to 90 degrees using a gas-assisted Fowler mechanism.
- Knee Gatch and Trendelenburg: Knee gatch adjusts up to 35 degrees, with base tilt from +12 to -18 degrees for Trendelenburg and reverse Trendelenburg.
- 500-Pound Weight Capacity: Rated for a maximum patient weight of 500 pounds on a 78″ x 28″ bed surface.
Stryker 1000 Stretcher Specifications
Dimensions
- Overall Length: 78 in (198.1 cm)
- Overall Width: 28 in (71.1 cm)
- Height Range: 22 in (55.9 cm) – 35 in (88.9 cm)
Weight Capacity
- Maximum Weight Capacity: 500 lb (226.8 kg)
Positioning
- Fowler Angle: 0° – 90°
- Knee Gatch Angle: 0° – 35°
- Trendelenburg / Reverse Trendelenburg: +12° to -18°
Refurbished Stryker 1000 Stretcher
Soma Tech Intl offers the Stryker 1000 Stretcher up to 50% below OEM prices, with the same service and warranty as new equipment. This stretcher goes through both technical and cosmetic refurbishment so it performs and looks like new. During the refurbishment of the 1000, our in-house biomedical engineers, who are trained and certified to work on stretchers, carefully inspect and test the frame and mechanisms and replace parts as needed so every aspect of the unit meets the original manufacturer’s engineering specifications. Once it’s fully operational, the Stryker 1000 moves into a detailed cosmetic restoration process: thorough cleaning, correction of minor scratches and dents, surface refinishing where needed, and decal replacement if required. After all of that, it functions and presents like new.
Soma Tech Intl is ISO 13485:2016 certified, so strict quality control standards apply to every piece of capital medical equipment we sell. Before the Stryker 1000 is labeled patient-ready and prepared for shipment, it goes through a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl’s procurement team is also always looking to purchase Stryker 1000 stretchers and other used Stryker equipment. If your facility has a Stryker 1000 or similar model to sell, get in touch and our purchasing department will walk you through the process from start to finish. Selling directly to Soma cuts out the middleman, so your facility gets the best possible value for its used or pre-owned equipment. We’re 100% HIPAA compliant as well, meaning your equipment arrives at our facility in the same condition it left yours. Soma also offers trade-in credit, so if you have a Stryker 1000 or any other used medical equipment to sell, just send us a message.
