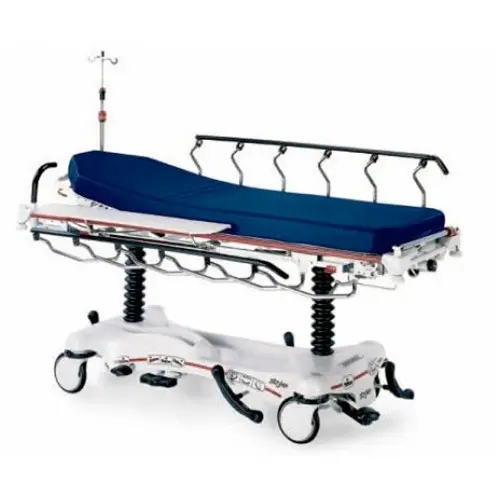

Stryker 1710 Renaissance Series
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included. Download Specifications
Stryker 1710 Features
The Stryker 1710 Renaissance Stretcher is available in four different models. Each stretcher comes with
a durable patient handling system. Standard fifth-wheel steering and pop-up handles allow for easy
maneuverability. Steel-ring brakes with optional four-sided brake controls ensure a firmly locked working
surface.
- 3” (8 cm) Ultra Comfort mattress with sealed seams
- 6” (15 cm) Omni Surface™ casters
- 78” (198 cm) patient surface
- Quadra Channel™ stabilizing lift system
- Siderails enable fluoro clearance
- Four IV receptacles
- Four-wheel, steel-ring brakes with dual side activators
- The backrest raises to 80°
- Removable foot section (0°- 50°)
- 20° Trend./15° reverse Trend
- Ultraview litter top for unobstructed fluoroscopic access
- Three-sided foot controls for lift/lower functions
- Retractable fifth-wheel steering
- Low profile base with thermoformed hood
- Full-length surgery accessory rails
Stryker 1710 Specifications
Dimensions
- Overall Length: 84” (213 cm)
- Overall Width:
- Siderails Up: 34.5” (88 cm)
- Siderails Down: 34.5” (88 cm)
- Weight Capacity: 500 lbs (228 kg)
- Height Range: (to litter top)
- High: 35.5” (90 cm)
- Low: 22” (56 cm)
- Litter Positioning:
- Backrest: 0°- 90°
- Knee Gatch: 0°-30°
- Trend./Reverse Trend:t: ±18°
- Patient Surface: 29” x 76” (74 x 193 cm)
- Siderails: 13” x 55” (33 x 140 cm)
- Caster Diameter: 8” (20 cm)
