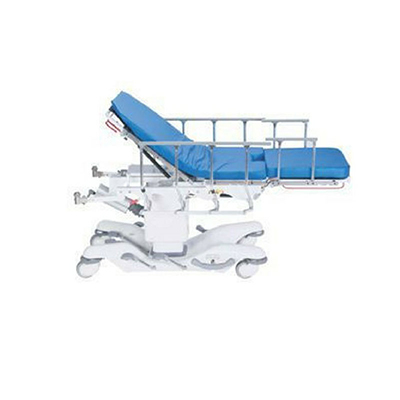

Stryker Trio
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Stryker Trio Features
The Trio is a fusion of a surgical stretcher, mobile operating table, and recovery platform in one unit. With the Stryker Trio, the patient remains on the same surface for pre-op, surgery, and post-op. By doing so this greatly reduces patient handling and improves patient and staff safety. All while increasing case efficiency turnover time.
- 3” (8 cm) Ultra Comfort mattress with sealed seams
- 6” (15 cm) Omni Surface™ casters
- 78” (198 cm) patient surface
- Quadra Channel™ stabilizing lift system
- Siderails enable fluoro clearance
- Four IV receptacles
- Four-wheel, steel-ring brakes with dual side activators
- The backrest rises to 80°
- Removable foot section (0°- 50°)
- 20° Trend./15° reverse Trend
- Left and right lateral tilt ±15°
- Ultraview litter top for unobstructed fluoroscopic access
- Three-sided foot controls for lift/lower functions
- Retractable fifth-wheel steering
- Low profile base with thermoformed hood
- Full-length surgery accessory rails
Stryker Trio Specifications
Dimensions
- Overall Length: 80” (203 cm)
- Overall Width:
- Siderails Up: 33” (84 cm)
- Siderails Down Or Without: 30” (76 cm)
- Weight Capacity: 500 lbs (228 kg)
- Patient Surface: 27” x 78” (69 x 198 cm)
- Siderails: 12” x 49” (30 x 124 cm)
- Caster Diameter: 6” (15 cm)
Litter Positioning
- Backrest: 1°- 80°
- Foot Section: 0°-50°
- Trend/Reverse Trend: +20°/-15° Trend
- Lateral Tilt: ±15°
Height Range
- High: 40” (102 cm)
- Low: 26” (66 cm)
