TransMotion TMM5

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

TransMotion TMM5 Features

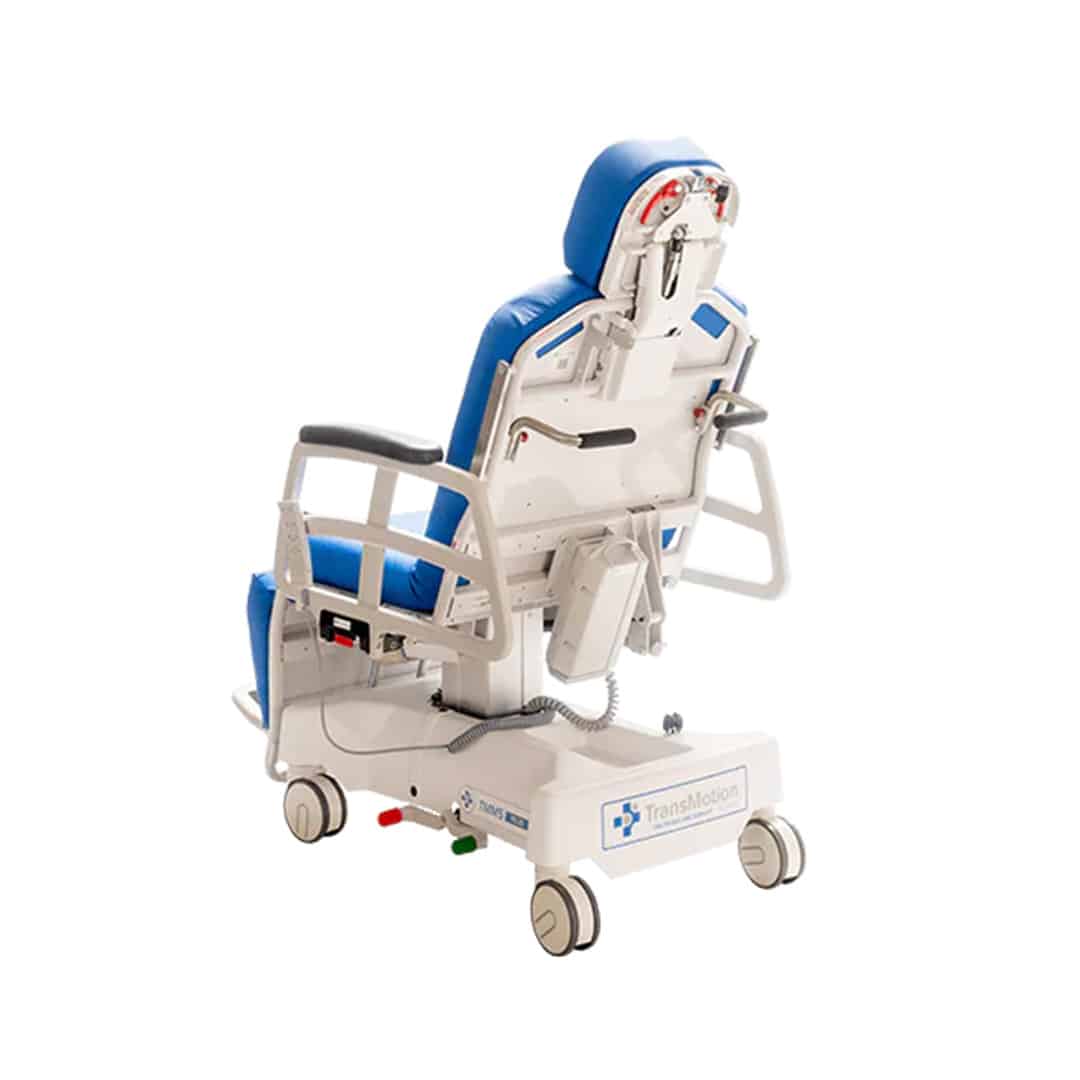

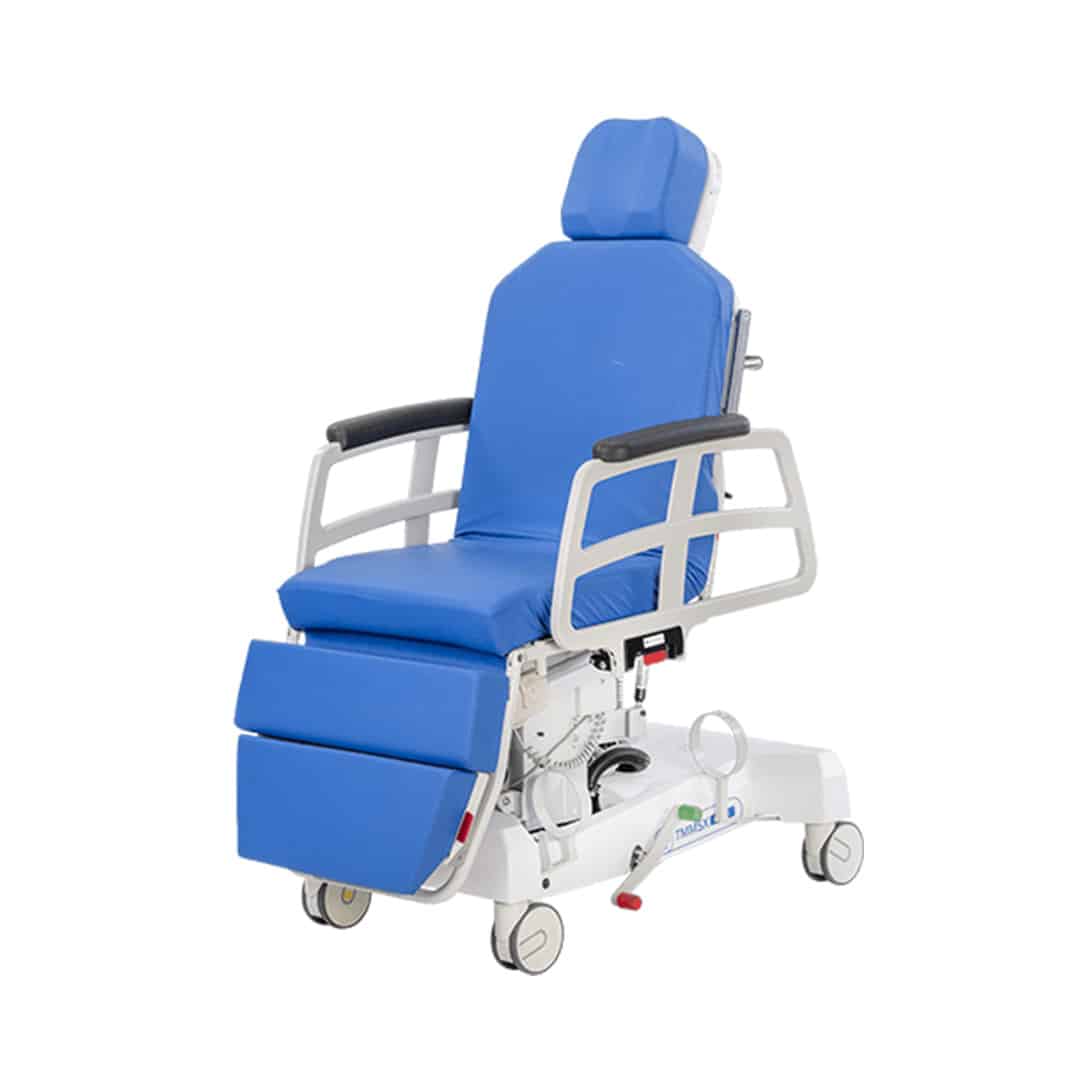

The TransMotion TMM5 Stretcher combines the functionality of a stretcher and surgical chair for seamless patient handling in diverse clinical settings. Its adjustable positions, robust design, and advanced features make it an ideal choice for improving patient care and workflow efficiency. With a wide range of configurations and options, the TMM5 adapts to meet various medical needs.

  • Multi-Functional Design: Functions as both a stretcher and a surgical chair for versatile use.
  • Electric Positioning: Pendant controls adjust seat height, backrest, and leg sections for maximum patient comfort and clinical accessibility.
  • High Weight Capacity: Supports patients up to 500 lbs (227 kg).
  • Battery and AC Options: Operates on integrated battery packs or AC power for reliable functionality.
  • Enhanced Mobility: Equipped with central locking casters and steer-locking modes for secure and efficient transport.
  • Optional Features: Includes wide width, tall height, folding footrests, and export-specific configurations.
  • Durable Construction: Designed with a robust frame and easily cleanable materials for long-term use.

TransMotion TMM5 Specifications

Dimensions

  • Height: 22 in (56 cm) to 34 in (86 cm) (adjustable).
  • Length: 78 in (198 cm)
  • Width: Standard 24 in (61 cm), optional 28 in (71 cm) with the “W” option.
  • Weight: Approximately 250 lbs (113.4 kg).
  • Maximum Capacity: 500 lbs (227 kg).

Power

  • Power Source: AC or integrated rechargeable battery.
  • Battery Life: Up to 8 hours of operation.
  • Charge Time: 6-8 hours to full charge.

Mobility

  • Casters: 5-inch casters with central braking and steer-lock functionality.
  • Braking Modes: Neutral mode, full brake mode, and steer mode.

Optional Features

  • Adjustable Width (W): 28-inch patient surface.
  • Adjustable Height (T): Extends height adjustment range.
  • Adjustable Height (L): Minimizes height adjustment range for accessibility.
  • Folding Footrest (F): Foldable design for patient comfort and space-saving storage.

Environmental Conditions

  • Operating Temperature: 10°C to 40°C (50°F to 104°F).
  • Storage Temperature: -20°C to 50°C (-4°F to 122°F).
  • Humidity Range: 10% to 90% (non-condensing).

Refurbished TransMotion TMM5 Stretcher

Soma Tech Intl offers the TransMotion TMM5 Stretcher up to 50% below OEM prices with the same service and warranty as new. The TMM5 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the TMM5, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on stretchers. If necessary, parts are replaced to ensure that all aspects of the TMM5 meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the TMM5 is functioning like new, it undergoes a specialized cosmetic restoration. The system is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the system is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished stretcher, contact Soma at [email protected] or call us at 1-800-438-7662.

Soma Tech Intl actively seeks to purchase stretchers. If you or your facility are looking to sell your TransMotion TMM5 Stretcher, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
