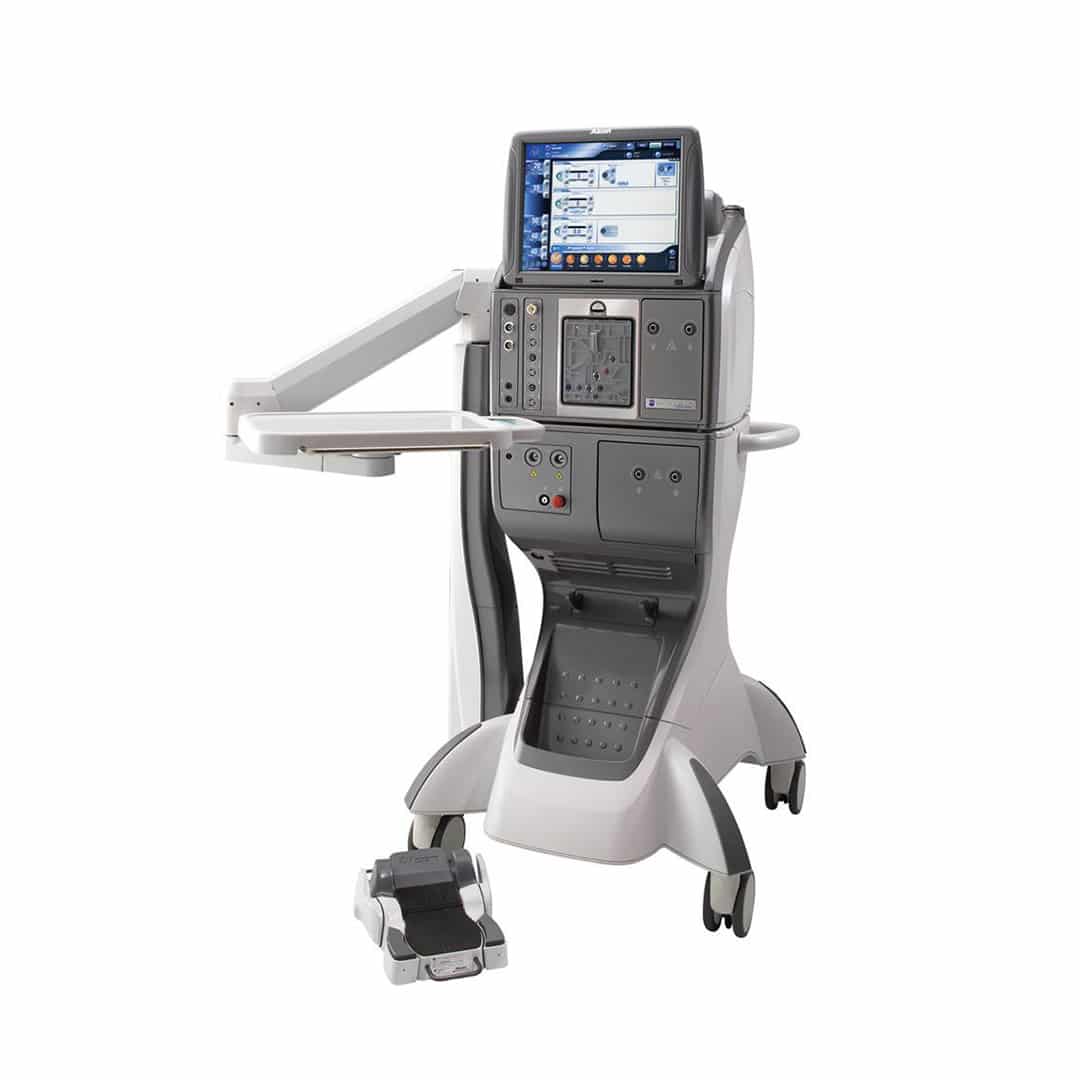

Alcon Constellation Vision System
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Alcon Constellation Vision System Features
The Alcon Constellation Vision System is a surgical platform for both anterior and posterior segment ophthalmic procedures. It brings together vitrectomy, phacoemulsification, illumination, diathermy, and laser treatment in one unit, giving surgeons precise control with tools designed to improve efficiency in the operating room.
- UltraVit High-Speed Vitrectomy: Cutting rates up to 5,000 cpm with duty cycle control for accurate flow management.
- Integrated PurePoint Laser: Built-in 532nm endolaser controlled directly from the system touchscreen.
- Advanced Fluidics Management: Pressurized infusion (0–120 mmHg) and aspiration control (0–650 mmHg) with rapid response.
- Phacoemulsification Capability: Torsional, longitudinal, and combination modes with adjustable pulse and burst settings.
- Xenon Illumination System: Provides up to 50 lumens through 20-gauge fiber optics for clear surgical visualization.
- V-LOCITY Efficiency Components: RFID-enabled disposable tracking, auto gas fill, and articulating tray arm to support workflow.
- Multi-Modality Platform: Integrates vitrectomy, fragmatome, diathermy, scissors, and viscous fluid control in one system.
Alcon Constellation Vision System Specifications
Physical Specifications
- Tabletop Dimensions:
- Height: 63.0 in (160.0 cm)
- Width: 30.0 in (76.2 cm)
- Depth: 30.5 in (77.5 cm)
- Base Dimensions:
- Height: 25.0 in (63.5 cm)
- Width: 21.0 in (53.3 cm)
- Depth: 22.5 in (57.2 cm)
- Tabletop Weight: 135 lbs (61.2 kg)
- Base Weight: 160 lbs (72.6 kg)
Power Requirements
- Voltage: 100-120V AC / 220-240V AC
- Frequency: 50/60 Hz
- Current: 12A max (100-120V) / 7.5A max (220-240V)
- Protection Class: Class I
Environmental Specifications
- Operating Temperature: 50°F to 95°F (10°C to 35°C)
- Storage Temperature: 14°F to 131°F (-10°C to 55°C)
- Relative Humidity: 10% to 95% (non-condensing)
- Operating Altitude: -410 to 6,562 ft (-125 to 2,000 m)
Performance Specifications
- Infusion Pressure: 0-120 mmHg (±2% accuracy)
- Aspiration Vacuum: 0-650 mmHg (±2% accuracy)
- Vitrectomy Cut Rate: 100-5,000 cpm (UltraVit 5000 probe)
- Phaco Frequency: 34-42 kHz
- Illumination Output: 50 lumens min (20GA, 0-200 hrs)
- Laser Output: 30 mW to 2W (532nm wavelength)
Refurbished Alcon Constellation Vision System
Soma Tech Intl offers the Alcon Constellation Vision System at up to 50% below OEM pricing, with the same service and warranty as new. Each Constellation unit is refurbished both technically and cosmetically so that it performs and looks like new.
The process begins with a full inspection and testing by our in-house biomedical engineers, who are trained and certified to work on ophthalmic vision systems. Any worn or damaged parts are replaced to ensure the system meets original manufacturer specifications. Once the unit is restored to full function, it undergoes cosmetic refurbishment—cleaning, scratch and dent repair, repainting, and new decals if needed. The result is a vision system that both works and appears like new.
Soma Tech Intl is ISO 13485 certified, guaranteeing strict quality standards. Before shipment, every Constellation system goes through a final quality control check to confirm it is patient-ready. For more information, contact Soma at soma@somatechnology.com or call 1-800-438-7662.
Soma Tech Intl also purchases vision systems. If your facility is looking to sell an Alcon Constellation, our experienced purchasing team will help you get the best value for your equipment. Soma is fully HIPAA-compliant and ensures secure handling from pickup to delivery. Trade-in credits are also available toward the purchase of other medical equipment.
