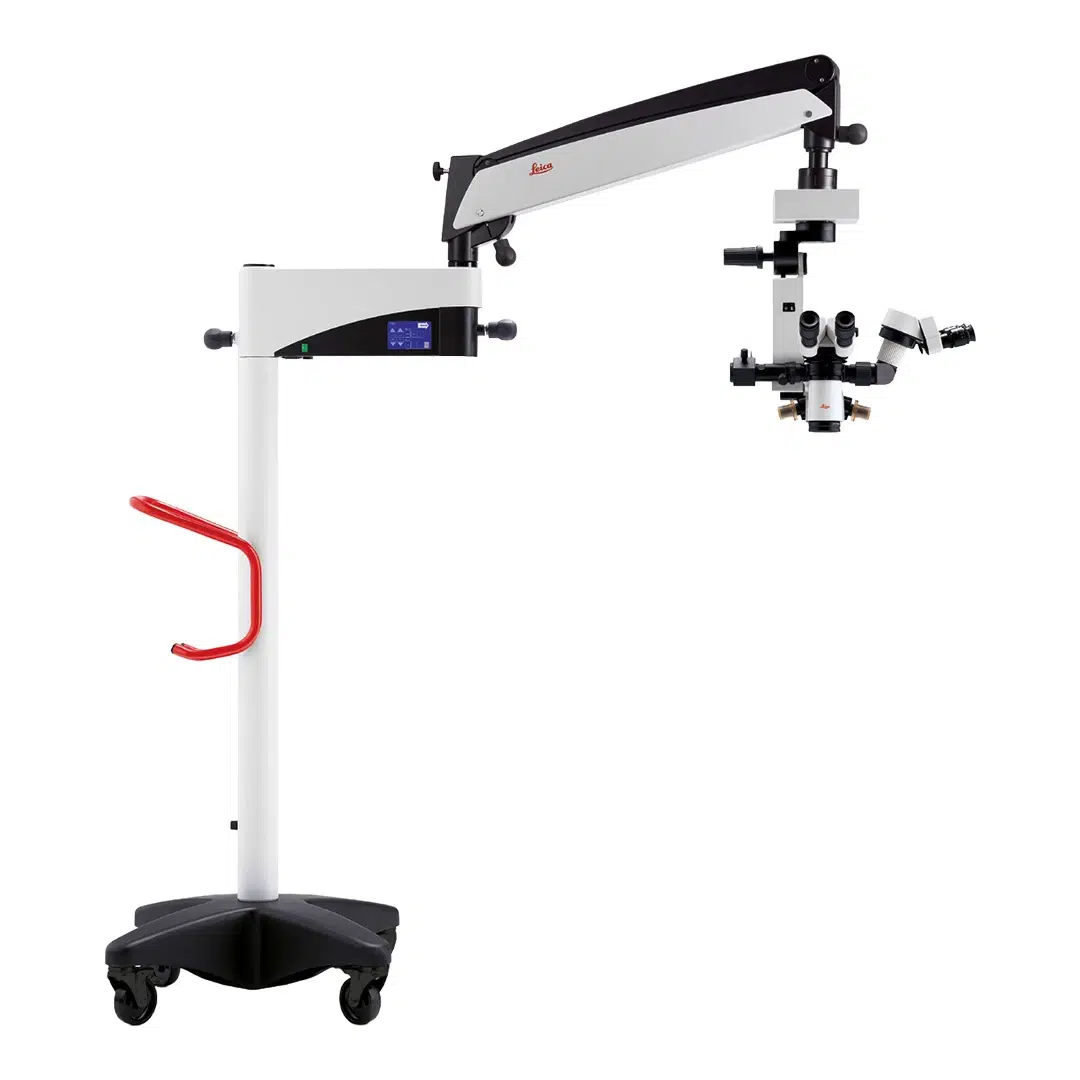

Leica M620 on F20
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Leica M620 on F20 Features
The Leica M620 surgical microscope on the F20 floorstand is designed to provide high-quality visualization and reliable performance for ophthalmic procedures. Featuring advanced optics and direct halogen illumination, the system delivers clear, high-contrast images with consistent lighting throughout surgery. The integrated control system allows clinicians to easily adjust focus, zoom, and illumination settings through an intuitive interface, improving workflow efficiency in the operating room. Mounted on the compact F20 floorstand, the M620 microscope offers smooth maneuverability and stable positioning, making it well suited for a variety of surgical environments.
- Advanced Optical System: Provides sharp, high-contrast imaging with natural color reproduction and enhanced depth of field.
- Direct Halogen Illumination: Delivers bright, uniform lighting with stable red reflex.
- Intuitive Control Interface: Integrated touchscreen and programmable settings.
- F20 Floorstand Mobility: Compact floorstand with smooth movement and long reach.
- Flexible Configuration Options: Compatible with various binoculars, video systems, and accessories.
Leica M620 on F20 Specifications
Dimensions
- Height (Minimum): 74.9 in (190.2 cm)
- Width: 23.9 in (60.8 cm)
- Depth (Reach): 56.9 in (144.4 cm)
- Weight: 463 lb (210 kg)
Optics
- Magnification Changer: 6:1 zoom, motorized, adjustable speed
- Focusing: Motorized, 50 mm, adjustable speed, with automatic reset
- Objective
- APO Leica WD = 175 mm, 200 mm
- Achromatic Leica f = 175 mm, 200 mm and 225 mm
- Eyepieces: Widefield eyepieces for those wearing glasses 8.33×, 10× and 12.5×; Diopter adjustment +/– 5 with adjustable eyecup
- Illumination
- Homogenous, coaxial illumination;
- Integrated Red Reflex illumination, light intensity adjustable via control unit and/or footswitch jalousie for continuous, situation-dependent reduction of ambient illumination via sterile controls;
- Quick-change lamp mount with 2 halogen lamps, 12V/50W filter changer with UV projective filter;
- 2 free openings for selectable filters diameter 32 mm
- Inclining Mechanism: +/– 5° manual fine adjustment, sterile operation
- XY-unit: Positioning range 50 mm in X and Y direction; Adjustable speed, reset button, automatic reset at power on
- Control Unit: Multifunctional display for brightness, magnification, reset and user selection, adjusting the speed of drives, individual user programming, Auto Reset
- Hand/Footswitch: 12-function footswitch with controls arranged longitudinally or transversally, wired or wireless; Optional: 6- and 16-function wired footswitch, 12- and 16-function wireless footswitch, 12-function handswitch
Refurbished Leica M620 on F20 Stand
Soma Tech Intl offers the Leica M620 Surgical Microscope up to 50% below OEM prices, providing the same service and warranty as a new. This Leica surgical microscope undergoes both technical and cosmetic refurbishment to ensure it performs and appears as if it were new. During the refurbishment of the M620 microscope, our in-house biomedical engineers, who are highly trained and certified to work on operating microscopes, carefully inspect and test the unit. If required, components are replaced to ensure all aspects of the Leica M620 meet the original manufacturer’s engineering specifications. This ensures the microscope delivers precise visualization and reliable performance in surgical environments just as it did when it originally left the manufacturer.
Once the M620 surgical microscope is fully operational, it proceeds through a detailed cosmetic restoration process. The Leica microscope is thoroughly cleaned, minor scratches and dents are addressed, surfaces are refinished when necessary, and decals are replaced if needed. After completing this refurbishment process, the Leica M620 both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the Leica M620 Surgical Microscope is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl is actively seeking to purchase Leica M620 surgical microscopes. If your facility is interested in selling an M620 or other Leica surgical microscopes, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned Leica equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have a Leica M620 or other surgical microscopes you would like to sell, send us a message.
