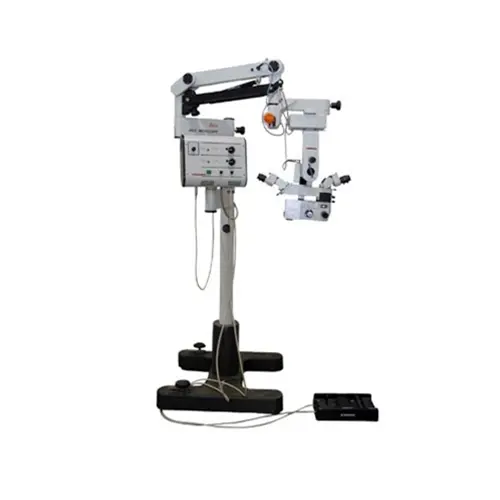

Leica Wild M690 on MSC Stand

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

The Leica Wild M690 Microscope Features

The Leica M-690 is an ophthalmic surgical microscope, that provides high contrast and detail imaging. The M-690 has a 1:5 zoom magnification changer and focusing system, both are driven by electrical motors and are controlled by foot pedals. The Leica system has built-in illumination technology that links the book magnification to the field of view. This fully illuminated the magnifications and increased the intensity of the light to help the surgeon keep focus.

The stand is 72 inches tall (183 cm) and enables the surgical microscope to be brought to the surgical table. With four double rollers underneath the stand, it makes moving easier. The Leica Wild M-690 surgical Microscope can be fully customized to fit your suit needs.

Leica Optics

  • Sharp Optical View
  • Excellent Depth of Focus
  • Red Reflex Enhancing Objective Lens
  • High Resolution, Internal, MotorizedFocus, and Zoom
  • 0-180 Degree Inclinable Binocular with 10 x 21 Widefield Eyepieces
  • 1:5 Magnification Ratio
  • Manual Override of Motorized Zoom
  • Variable Motorized Focus – 50mm Range
  • TiltableJoint for Varying Optical Angle
  • Two Bulb System for Immediate Back-up
  • Varying Rheostat for Illumination Levels
  • Reliable and Easy to Exchange Bulbs
  • Selector for 110V or 220V

Leica MSC stand

  • Stable, Movable Base
  • External Power Supply for Easy Repairs
  • Detachable Power Cord for Safety
  • Independent Speed Controls for Focus, Zoom & XY
  • Adjustable Spring Tension for Rotation of Arms
  • Locking Brakes to Secure or Level Base
  • Easy Maneuvering with Side Handles
  • Sturdy, Oversized Casters

Leica M-690 Surgical Microscope Specifications

Dimensions of Microscope

  • Minumum:183 cm (72 in)
  • Maximum: 212 cm (83.46 in)
  • Maximum distance from the objective lens to the column 115 cm (45.27 in )
  • Base of the stand: 75 x 75 cm ( 29.5 x 29.5 in)
  • Weight: 150 kg (330.5 libs)

Halogen Illuminator

  • Two Bulb System for Immediate Back-up
  • Varying Rheostat for Illumination Levels
  • Reliable and Easy to Exchange Bulbs
  • Selector for 110V or 220V

XY Function

  • Travel Range of 4 × 4 inches
  • Automatic Centering Button
  • Motorized Movement Activated by Joystick on Foot Control

Foot Controls

  • Electronic Controls with Durable Cord
  • Smooth Pedals for Motorized Focus and Zoom
  • Movable Joystick for Motorized XY
  • Detachable Cord for Moving and Storage


  • Zoom adjustment: from 2x to 14x
  • Magnification of the eyepieces: 10x
  • Inclinable binocular tube 0-180°
  • Objective lens: f=300 mm
  • Control unit:
  • Light adjustment
  • Adjustment of zoom and focus displacement speed
  • Main illumination: Halogen 12V/50W
  • Emergency lamp: Halogen 12V/50W
  • Power supply: 115/230V / 50-60 Hz


  • Binocular: 0-180 Inclinable ; f=170mm | Other options: 10-50 Degree ; f=170mm
  • Objective Lens: 175mm, 200mm with red reflex enhancer <?li>
  • Magnification: Motorized 1:5
  • Focus: Motorized with 50mm travel
  • Eyepieces: 10 x 21 Widefield
  • Pupillary Distance: 55mm – 75mm
  • Filter: Standard UV

Refurbished Leica M690 Surgical Microscope

Soma Tech Intl offers the Leica M690 Surgical Microscopes up to 50% below OEM prices with the same service and warranty as new. The Leica M690 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Leica M690, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on surgical microscopes. If necessary, parts are replaced to make sure that all aspects of the Leica M690 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Leica M690 is working like new it undergoes a special cosmetic restoration process. The Leica M690 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Leica M690 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Leica M690 Surgical Microscope contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Leica M690. If you or your facility is looking to sell your Leica M690, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Leica M690 takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
