Zeiss OPMI LUMERA S7 - Surgical Microscope - Soma Technology, Inc.
Zeiss

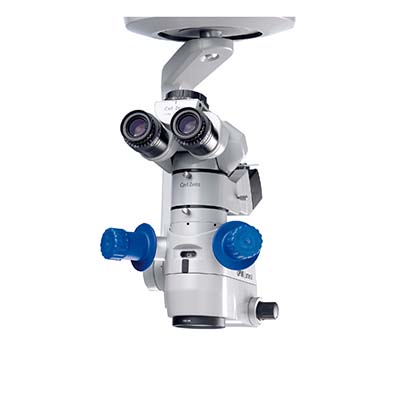

Zeiss OPMI LUMERA S7

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download Specifications

Zeiss OPMI LUMERA S7 Features

The Zeiss OPMI LUMERA S7 features more clarity, contrast, and stability than previous models. The LUMERA S7 allows you to see intricacies of the ocular anatomy that you have never seen before with the help of Stereo Coaxial Illumination (SCI). The contours appear razor-sharp. This microscope allows you to easily recognize different structures and fluidics, even with dense cataracts. The LUMERA S7 has the ability to equip a stereo co-observation tube allowing a second person to see the surgical field at the same magnification level.

  • The targeted surgical area shines brightly and vividly.
  • DeepView allows you to switch between maximum transmission and the maximum depth of field, whichever is required.
  • S7 manual floor stand that is compact and maneuverable.
  • Motorized zoom.
  • Zoom ratio: 1:6.
  • Apochromatic optics.
  • Focusing Range: 50 mm.
  • SCI: Red reflex illumination.

Zeiss OPMI LUMERA S7 Specifications

Surgical Microscope

  • Apochromatic optics
  • Motorized Zoom: 1:6 zoom ratio
  • Magnification Factors: 0.4 to 2.4
  • Focusing Range: 50 mm<
  • Eyepieces: 10x (12.5x optional)
  • Objective Lens: f = 200 mm (f = 175 mm optional)
  • DeepView: Depth of field management system

Illumination

  • SCI: red reflex illumination and surrounding field illumination, both are adjustable, patent pending
  • Integrated 408 nm UV barrier filter
  • Blue-blocking filter
  • Retinal protection device
  • Fiber optic illumination
  • Optional: Fluorescence filter

Light Source

  • 12V, 100W halogen Light Source with fully automatic bulb change in case of lamp failure

X Y Coupling

  • 61 mm x 61 mm adjustment range
  • Free programmable button for starting positions of X-Y coupling, focus, and zoom.

Weight

  • 18.74 lbs (8.5 kg) (With 180° inclinable binocular tube, objective lens and eyepieces).

Suspension System

  • Floor stand
  • Maximum load capacity: 14 kg (Complete microscope equipment, including accessories)
