Conmed Hall 50
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Conmed Hall 50 Features

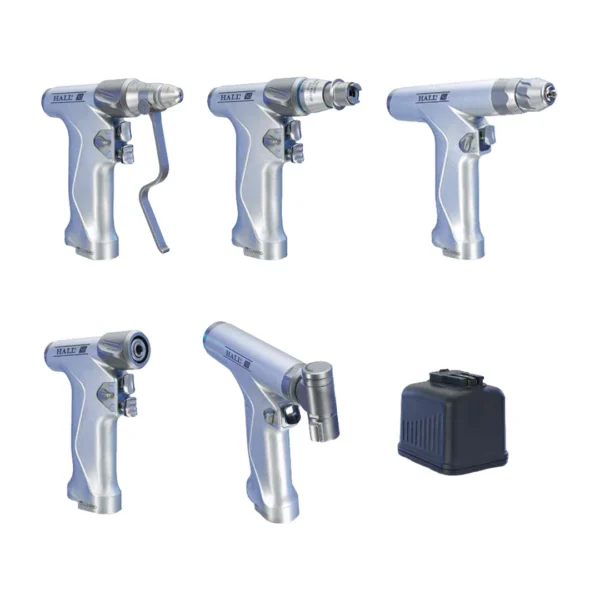

The Conmed Hall 50 is a modular surgical power tool system designed for a variety of orthopedic procedures. A shared lithium battery powers the different handpieces, allowing facilities to choose the drills, saws, and attachments they need without purchasing separate systems for large and small-bone procedures. The variable-speed trigger provides 400 levels of control for precise adjustment of blade or drill speed. Hall’s autoclavable, UL-approved lithium batteries can be sterilized in the same tray as the handpieces and attachments, eliminating an extra battery sterilization step. The handpieces also feature IPX6 and IPX8 protection against water jets and submersion during cleaning and reprocessing.
- Universal Handpieces: One handpiece platform covers both large and small bone procedures, so a facility can build a setup around the specific tools it needs.
- 400-Level Variable Speed: Trigger-based speed control gives fine adjustment over drill and blade speed during a procedure.
- One-Step Sterilization: Autoclavable lithium batteries let handpieces, batteries, and attachments run through the same sterilization tray together.
- IPX6/IPX8 Rated Handpieces: TRI-SEAL sealing technology protects against water jets and submersion during cleaning and reprocessing.
Conmed Hall 50 Specifications
Build the Package That Fits Your Facility
The Conmed Hall 50 system is a cordless battery-powered platform designed for orthopedic, arthroscopic, hand, and foot surgical procedures. Because every facility’s caseload and budget are different, we put together Hall 50 packages on a customized basis rather than a fixed, one-size-fits-all bundle. Whether you need a single handpiece to fill a gap in your current setup or a fuller multi-piece configuration, we’ll work with you to spec out the right combination of components.
Available components may include:
- Handpieces (available individually or in combination): PRO7100B Single Trigger Modular Handpiece, PRO7200B Two-Trigger Modular Handpiece, PRO7300B Oscillating Saw, PRO7400B Reciprocating Saw, PRO7450B Sternum Saw
- Battery Packs: L3000LG (13.2V), PRO3011 (12V), PRO3520 (12V), PRO3020 (12V), PRO3010 (9.6V), PRO3115 (9.6V)
- PowerPro Attachments (drill, reaming, and driver options)
Availability and final package contents depend on your facility’s specific order, contact us to discuss which handpieces and accessories make sense for your needs and we’ll put together a quote tailored to you.
System Features
- Ingress Protection: IPX6 and IPX8
- Sterilization: Steam autoclavable (pre-vacuum or gravity cycle); also compatible with washer/sanitizers
- Compatible Batteries: L3000LG (13.2V), PRO3011 (12V), PRO3520 (12V), PRO3020 (12V), PRO3010 (9.6V), PRO3115 (9.6V)
- Speed and torque figures below reflect standard 12V/13.2V battery packs; performance varies slightly with 9.6V battery packs
PRO7100B – Single Trigger Handpiece
- Height: 6.2 in (16 cm)
- Length: 4.1 in (10.4 cm)
- Weight: 1.58 lb (0.72 kg)
- Acoustic Noise: 80 dB
- Maximum Power: 0.37 hp (275 W)
- Drill Attachment Speed Range: 0 – 1500 rpm
- Drill Attachment Torque: 33 in-lb (3.7 Nm)
- 3:1 Reaming Attachment Speed Range: 0 – 500 rpm
- 3:1 Reaming Attachment Torque: 90 in-lb (10.2 Nm)
- 5:1 Reaming Attachment Speed Range: 0 – 300 rpm
- 5:1 Reaming Attachment Torque: 145 in-lb (16.4 Nm)
- Accepts most PowerPro attachments for reaming, drilling, wire/pin driving, and sawing (reciprocating and sagittal attachments only)
PRO7200B – Two-Trigger Handpiece
- Height: 6.2 in (16 cm)
- Length: 4.1 in (10.4 cm)
- Weight: 1.63 lb (0.74 kg)
- Acoustic Noise: 80 dB
- Maximum Power: 0.37 hp (275 W)
- Drill Mode Speed Range: 0 – 1500 rpm
- Drill Mode Torque: 33 in-lb (3.7 Nm)
- Screw Mode Speed Range: 0 – 250 rpm
- Screw Mode Torque (Forward): 14 – 22 in-lb (1.6 – 2.5 Nm)
- Screw Mode Torque (Reverse): 33 in-lb (3.7 Nm)
- Tap Mode Speed Range: 0 – 250 rpm
- Oscillating Drill Mode Speed Range: 0 – 750 rpm
- Oscillating Drill Mode Oscillation Range: 0° – 270°
- Accepts most PowerPro attachments; well suited to ACL and trauma procedures
PRO7300B – Oscillating Saw
- Height: 6.4 in (16.3 cm)
- Length: 6.7 in (17 cm)
- Weight: 2.18 lb (0.99 kg)
- Acoustic Noise: 85 dB
- Speed Range: 0 – 11,000 cpm
- Oscillation Range: 4.5°
- 8-position, 45° indexing rotating head for surgical access
PRO7400B – Reciprocating Saw
- Height: 6.4 in (16.3 cm)
- Length: 7.7 in (19.6 cm)
- Weight: 2.23 lb (1.01 kg)
- Acoustic Noise: 92 dB
- Speed Range: 0 – 14,500 cpm
- Stroke: 0.125 in (3.2 mm)
- 4-position, 90° blade rotation for surgical access
PRO7450B – Sternum Saw
- Height: 6.4 in (16.3 cm)
- Length: 7.3 in (18.5 cm)
- Weight: 2.08 lb (0.94 kg)
- Acoustic Noise: 92 dB
- Speed Range: 0 – 14,500 cpm
- Stroke: 0.125 in (3.2 mm)
- Designed for primary sternotomies (not intended for repeat sternotomy procedures)
Refurbished Conmed Hall 50
Soma Tech Intl offers the Conmed Hall 50 surgical power tools up to 50% below OEM prices, with the same service and warranty as new equipment. This system goes through both technical and cosmetic refurbishment so it performs and looks like new. During the refurbishment of the Hall 50, our in-house biomedical engineers, who are trained and certified to work on surgical power tools, carefully inspect and test each component and replace parts as needed so every aspect of the system meets the original manufacturer’s engineering specifications. Once it’s fully operational, the Hall 50 moves into a detailed cosmetic restoration process: thorough cleaning, correction of minor scratches and dents, surface refinishing where needed, and decal replacement if required. After all of that, it functions and presents like new.
Soma Tech Intl is ISO 13485:2016 certified, so strict quality control standards apply to every piece of capital medical equipment we sell. Before the Conmed Hall 50 is labeled patient-ready and prepared for shipment, it goes through a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl’s procurement team is also always looking to purchase Conmed Hall 50 units and other used Conmed surgical power tools. If your facility has a Hall 50 or similar model to sell, get in touch and our purchasing department will walk you through the process from start to finish. Selling directly to Soma cuts out the middleman, so your facility gets the best possible value for its used or pre-owned equipment. We’re 100% HIPAA compliant as well, meaning your equipment arrives at our facility in the same condition it left yours. Soma also offers trade-in credit, so if you have a Hall 50 or any other used medical equipment to sell, just send us a message.
