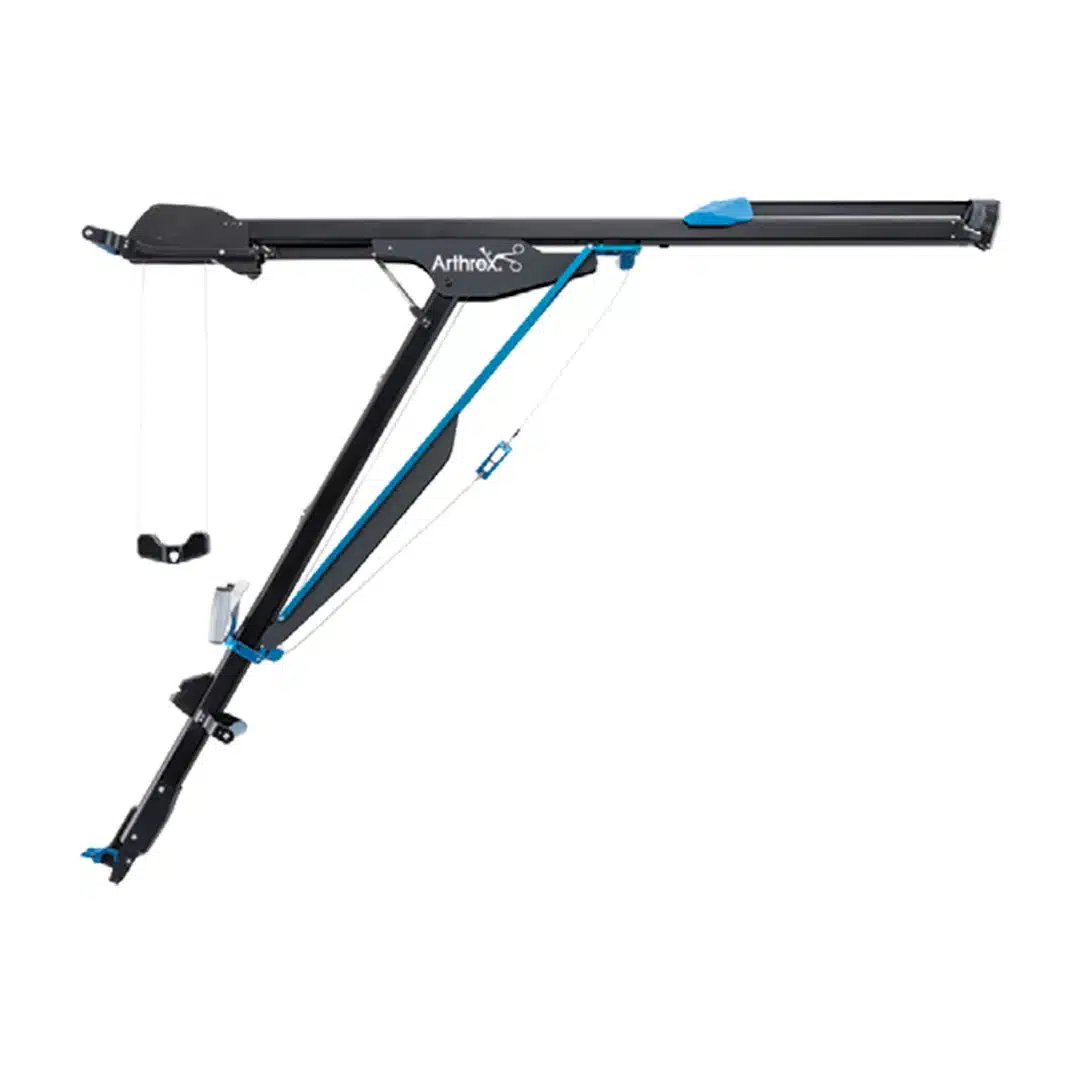

Arthrex Shoulder Suspension System S3
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Arthrex Shoulder Suspension System S3 Features
The Arthrex Shoulder Suspension System S3 is designed to support lateral shoulder arthroscopy by providing controlled patient positioning, arm support, and consistent joint distraction throughout the procedure. Built around a stable suspension tower, the system allows surgeons to fine-tune arm position and traction without interrupting workflow. Its mechanical design supports smooth adjustment during surgery, helping maintain visualization while reducing manual repositioning. The S3 system is commonly used across a wide range of shoulder procedures and is built for durability in high-volume operating rooms. When paired with the appropriate accessories, it offers a reliable solution for lateral positioning in arthroscopic shoulder cases.
- Lateral Shoulder Positioning Support: Designed specifically for lateral shoulder arthroscopy, allowing consistent access to the joint throughout the procedure.
- Controlled Traction and Manipulation: Cable-based suspension enables smooth application and adjustment of arm traction without abrupt changes.
- Stable Suspension Tower Design: The tower provides a secure mounting point at the surgical table, supporting precise arm positioning during complex cases.
- Wide Range of Motion: Horizontal and vertical cable travel allow surgeons to adapt positioning based on anatomy, procedure type, and surgeon preference.
Arthrex Shoulder Suspension System S3 Specifications
Tower Dimensions
- Tower Height (Opened): 62 in (157.5 cm) from tabletop to highest point
Cable Travel Range
- Horizontal Cable Travel: Approx. 26 in (66 cm)
- Vertical Cable Travel: Approx. 40 in (102 cm)
- Clamp-to-Max Horizontal Reach: 40 in (102 cm)
Patient & Arm Support
- Max Arm Length Supported: 34 in (86 cm)
- Max Patient Weight Capacity: 400 lb (181 kg)
Mounting
- Table-mounted via rail clamp
Refurbished Arthrex Shoulder Suspension System S3
Soma Tech Intl offers the Arthrex Shoulder Suspension System S3 patient positioning system at prices up to 50% below OEM levels, while providing the same service and warranty as new. This Arthrex positioning system is refurbished both technically and cosmetically to ensure reliable performance and a like-new appearance. When the refurbishment process begins on the Shoulder Suspension System S3, our in-house biomedical engineers, who are trained and certified to work on surgical patient positioning equipment, conduct a detailed inspection and functional evaluation. Any components that do not meet the original manufacturer’s engineering specifications are replaced to ensure the S3 system performs consistently in clinical environments.
Once the Arthrex S3 system is fully operational, it undergoes a comprehensive cosmetic restoration process. The shoulder suspension equipment is thoroughly cleaned, minor scratches and cosmetic wear are addressed, surfaces are refinished as needed, and labels or decals are replaced when applicable. After this process, the patient positioning system both functions and looks like new. Soma Tech Intl is ISO 13485 certified and maintains strict quality standards across all refurbished capital medical equipment. Before the Arthrex Shoulder Suspension System S3 is labeled patient-ready and prepared for shipment, it completes a final quality control inspection to confirm proper operation and overall condition.
Soma Tech Intl is also actively seeking to purchase Arthrex Shoulder Suspension System S3 units and related patient positioning systems. If your facility has an S3 or other Arthrex positioning equipment available for sale, Soma’s experienced purchasing department will guide you through the entire process. Selling your used or pre-owned Arthrex equipment directly to Soma removes the middleman and helps ensure your facility receives maximum value. Soma is 100% HIPAA compliant and ensures your equipment arrives at our facility in the same condition it left yours. Trade-in credit is also available. If you have an Arthrex S3 shoulder suspension system or other patient positioning equipment you would like to sell, contact Soma Tech Intl today.
