Schaerer Arcus 701 Features

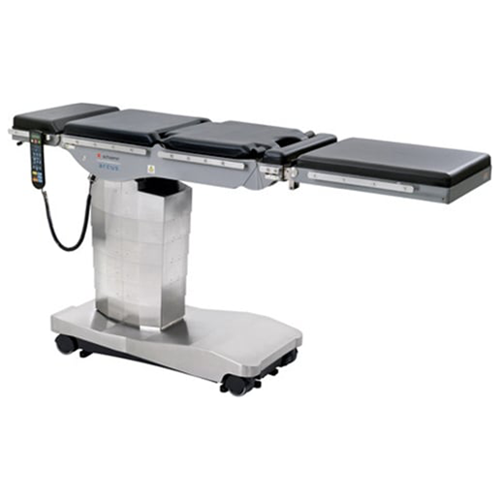

The Schaerer Arcus 701 is a surgical table from Schaerer Medical. Featuring an offset cantilevered base, it allows for maximum imaging access. The Arcus was designed for general surgery as well as specialty use like orthopedics and traumatology. It’s extremely easy to use and can support patient weights up to 800 lbs. in both normal and reverse orientation.

  • Static weight capacity of 1100 lb (800 lb dynamic)
  • 23” Low height for seated or bariatric patients
  • The cantilevered base provides an unsurpassed imaging area
  • Neuro Speed button for exact positioning
  • 5th wheel for 360° rotation
  • A wide range of accessories allows the Arcus to be transformed into a versatile table perfect for orthopedic, bariatric, urological, neurosurgical, or spine procedures.

Schaerer Arcus 701 Specifications


  • Weight without head and leg plates: 290kg
  • Length without head plate: 695 mm
  • Length with head plate: 990 mm
  • Width of Table Top: 520 mm
  • Total Width (with side Rails): 580 mm
  • Width with lateral table extension: 880 mm
  • Maximum patient weight: 360 kg
  • Height adjustment with patient weight up to 260 kg (top edge pad, blocked table): 595 – 1200 mm
  • Height adjustment with patient weight over 260 kg (top edge pad, blocked table): 595 – 1000 mm

Table Movements

  • Trendelenburg / Reverse Trendelenburg: 30°
  • Lateral tilting right/left: 20°
  • Seat plate up 65°
  • Seat plate down: 40°

Technical Data

  • Electrical mains connection
  • 100-120 / 200-240 V AC, 50-60 HZ Control voltage 24 V DC
  • battery charging time 6 – 8 hours
  • battery capacity: approx. 50 – 80 operations 4 maintenance-free special batteries with capacity indication on the display of the hand control (and low-battery acoustic signal)
  • Side rail dimensions 25 x 10 mm or 30 x 10 mm
  • Weight: 300kg
