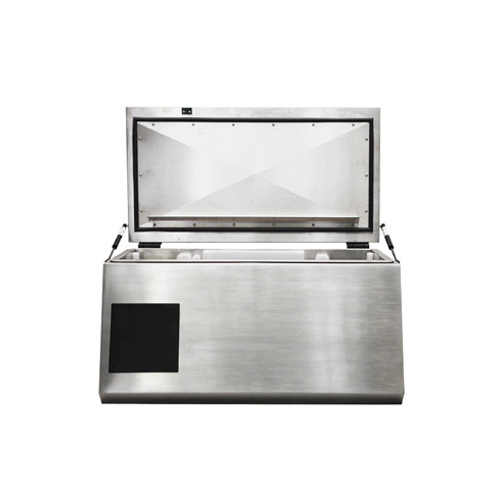

Steris InnoWave Ultra & Ultra+ Ultrasonic Cleaners Feature
The InnoWave Ultra & Ultra+ Ultrasonic Cleaners are a high-pressure flushing water disinfectors. They are intended to provide cleaning and thermal disinfection of surgical instruments. The cleaning process is a combination of sonic irrigation (ultrasonic cavitation ), and lumen flushing to remove all the impurities from the instrument placed within the tank. It is meant to speed up your workflow and improve the cleanliness of your surgical instruments.
- Precise and thorough cleaning, through the means of sonic irrigation and lumen flashing.
- Allows for cleaning of a variety of surgical instruments.
- Speeds up the cleaning process.
- Thermal Disinfection assures clean and sterile equipment.
- Ease of use and, compatibility with most common surgical instrument trays.
- Auto-Tuning Frequencies
- Easy-to-use Touch Screen Control
- One Chemistry Inlet
- Integrated USB Port
- Operator PINs
- Cycle Monitoring
Steris InnoWave PCF Ultrasonic Cleaner Specifications
DIMENSIONS – Ultra
- Dimensions, Lid Closed: 29.8” x 14.3” x 18.0”(757 mm x 364 mm x 458 mm)
- Dimensions, Lid Open: 29.8” x 27.9” x 18.0” (757 mm x 709 mm x 458 mm)
- Basket Dimensions: 24.6” x 10.2” x 5.6” (624 mm x 259 mm x 141 mm)
- Service Access Clearance: Minimum 2” (51 mm) sides; 3” (76 mm) rear
DIMENSIONS – Ultra+
- Dimensions, Lid Closed: 29.5” x 15.6” x 21.0” (748 mm x 379 mm x 534 mm)
- Dimensions, Lid Open: 29.5” x 29.0” x 21.0” (748 mm x 739 mm x 534 mm)
- Basket Dimensions: 19.0” x 10.0” x 3.0” (484 mm x 253 mm x 76 mm)
- Service Access Clearance: Minimum 2” (51 mm) sides; 3” (76 mm) rear
CAPACITY
- Capacity of Connected Instruments: 12 Lumened Instruments
- Maximum Load Weight: 11.0 lb (5 kg )
UTILITY – Ultra
- Drain: 3/4” Slip CPVC (trap and waste lines are not provided by STERIS). Note: Drain entry and entire drain hose must be below machine drain outlet, measured from Unit rear. Drainpipe ID must be at least 2” (50 mm).
- Drain Flow Rate: Rate: 4.0 US gal/min. (15 L/min.)
- Hot Water: 3/4” Stainless-Steel BSP; 30 psi to 70 psi (2 bar to 5 bar); +122 °F to +176 °F (+50 °C to +80 °C)
- Cold Water: 3/4” Stainless-Steel BSP; 30 psi to 70 psi (2 bar to 5 bar); +41 °F to +86 °F (+5 °C to +30°C)C)
- Flow Rate: 3 US gal/min. to 8 US gal/min. (11 L/min. to 30 L/min.)
- Heating Rate: 9 °F/min. (5 °C/min.)
UTILITY – Ultra
- Drain: hose tail outlet from the unit. The facility drain must be fitted with suitable traps. Drain hose supplied with Unit. Overflow: 1.9” (48 mm) OD outlet from the machine in the same as a drain. The overflow hose connection to the main drainage system must not be airtight.
- Drain Flow Rate: >8 US gal/min. (>30 L/min.)
- Hot Water: 3/4” BSP Connection; 30 psi to 70 psi (2 bar to 5 bar); +122 °F to +176 °F (+50 °C to +80 °C)
- Cold Water: 3/4” BSP Connection; 30 psi to 70 psi (2 bar to 5 bar); +41 °F to +86 °F (+5 °C to +30 °C)
- Flow Rate: 3 US gal/min. to 8 US gal/min. (11 L/min. to 30 L/min.)
- Heating Rate: 0.9 °F/min. (0.5 °C/min.)
CHEMISTRY
- Recommended Chemicals (North America )
- ProlysticaR HP enzymatic automated detergent, 2.5 US gal (9.4 L)
- Hinge-FreeTM WR, 10 L (2.6 US gal)
- Hinge-FreeR lubricant, 4 x 1.0 US gal (4 x 3.8 L)
- Recommended Chemicals (Other )
- 8E-Zyme multi-enzymatic cleaner, 10.0 L (2.6 US gal)
- Hinge-FreeTM lubricant, 2 x 5.0 L (2 x 1.3 US gal)
- Prolystica HP neutral automated detergent, 10.0 L (2.6 US gal)
- Prolystica HP enzymatic automated detergent, 10.0 L (2.6 US gal)
- ProlysticaTM HP multi-enzymatic cleaner, 10.0 L (2.6 US gal)
- Prolystica HP alkaline automated detergent, 10.0 L (2.6 US gal)
Refurbished Steris InnoWave Ultra & Ultra+ Ultrasonic Cleaners
Soma Tech Intl offers Refurbished Steris InnoWave Ultra & Ultra+ Ultrasonic Cleaner up to 50% below OEM prices with the same service and warranty as new. The Steris Ultrasonic Cleaner is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on Steris Ithe Ultrasonic Cleaner is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on Ultrasonic Cleaners. If necessary, parts are replaced to make sure that all aspects of the cleaner are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Steris InnoWave Ultra & Ultra+ Ultrasonic Cleaner is working like new it undergoes a special cosmetic restoration process. The Ultrasonic Cleaner is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the cleaner functions and looks new. Soma Technology is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the cleaner is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Steris InnoWave Ultra & Ultra+ Ultrasonic Cleaner contact soma at [email protected] or call us at 1-800-GET-SOMA.
Soma Tech Intl is also actively looking to purchase a Steris InnoWave Ultra & Ultra+ If you or your facility is looking to sell your Steris Ultrasonic Cleaner, be sure to contact Soma Tech. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Steris Ultrasonic Cleaner to Soma Technology takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Technology is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Technology also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
