GE Logiq 9

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

GE Logiq 9 Features

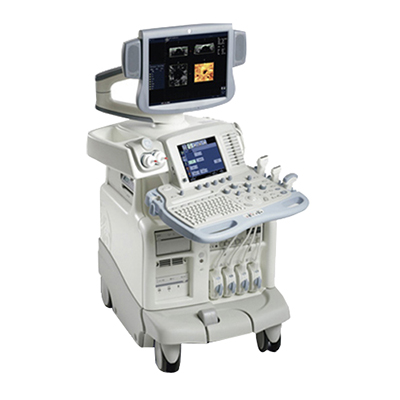

The GE Logiq 9 is an Ultrasound machine with 4D imaging. The GE Logiq 9 can be used for a wide range of applications, including pediatric, radiology, cardiac, and vascular. The system not only gets basic ultrasound imaging but also offers volume ultrasound capabilities. Constructing volumetric images and real-time images using a 4D transducer. The Logiq 9 can also provide volumetric calculations, volume contrast images, and an inversion mode. The Logiq system comes with a 17-inch, high-resolution monitor to show high-quality surface 3D and 4D images and long with a 10-inch color LCD touch screen for easy operation of the ultrasound. The system can store up to 40 MB of data in the system hard drive and comes with integrated CD-R and MO drives.

  • 3D digital processing and manipulation
  • Color and Power Doppler
  • integrated hard drive, CD-R drive, MO drive
  • 4-wheel swivel with front and back break locks
  • 17″ high-resolution monitor
  • Speaker and Microphone
  • Cable management system
  • B-Flow
  • Coded Harmonics
  • Harmonic Angio
  • Anatomical M-Mode
  • Spectral Wave Doppler

GE Logiq 9 Specifications


  • Height:55.25 – 63.25 in (140.3 – 160.7 cm)
  • Width: 25.2 in (64 cm)
  • Depth: 35.4in ( 89.9 cm)
  • Weight: 434 lb (196.8 kg)

Operator Keyboard

  • Floating keyboard adjustable in three dimensions:
  • Height: adjustable 76.2 – 96.5 cm( 30- 38 in)
  • Rotation: Adjustable +/- 75o from center
  • Extension: 31,8 cm (12.5in) from Console
  • Full-sized, backlit alphanumeric keyboard
  • Ergonomic hard key layout
  • interactive back-lighting
  • Integrated recoding keys for remote control of up to 4 peripheral or DICOM devices
  • Integrated gel warmer

Touch Screen

  • 10.4 in high-resolution color LCD screen
  • Interactive dynamic software menu
  • Brightness adjustment
  • User-configurable layout


  • 17″ high-resolution non-interlaced scan flat CRT
  • Center of monitor height adjustable (with keyboard): 125.7 146.1 cm (49.5 – 57.5in)
  • Tilt/Rotate Adjustable Monitor
  • Tilt Angle: Down 10°, Up 10°
  • Rotate Angle: 90° right, 90° left
  • Wide image area
  • Integrated high-fidelity speakers
  • Digital brightness; contrast adjustment

Console Design

  • 4 active Probe Ports
  • Integrated HDD (40 GB)
  • Integrated CD-RW drive
  • Integrated MO drive
  • Onboard storage for peripherals
  • Integrated cable management
  • Front and rear handles
  • Easily removable air filter

Electrical Power

  • Voltage:100-120 Vac or 220-240 Vac
  • Frequency: 50/60 Hz
  • Power: Max. 1.2 KVA with on-board peripherals
  • Maximum Thermal Output: 4095 BTU/hr.

Refurbished  of The GE Logiq 9 Ultrasound

Soma Tech Intl offers the GE Logic 9 Ultrasound up to 50% below OEM prices with the same service and warranty as new. The GE Ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to make sure that all aspects of the GE Logiq are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE Logiq 9 is working like new it undergoes a special cosmetic restoration process. The ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Ge Logiq 9 Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished ultrasounds contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase GE ultrasounds, If you or your facility is looking to sell your ultrasounds, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasounds takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
