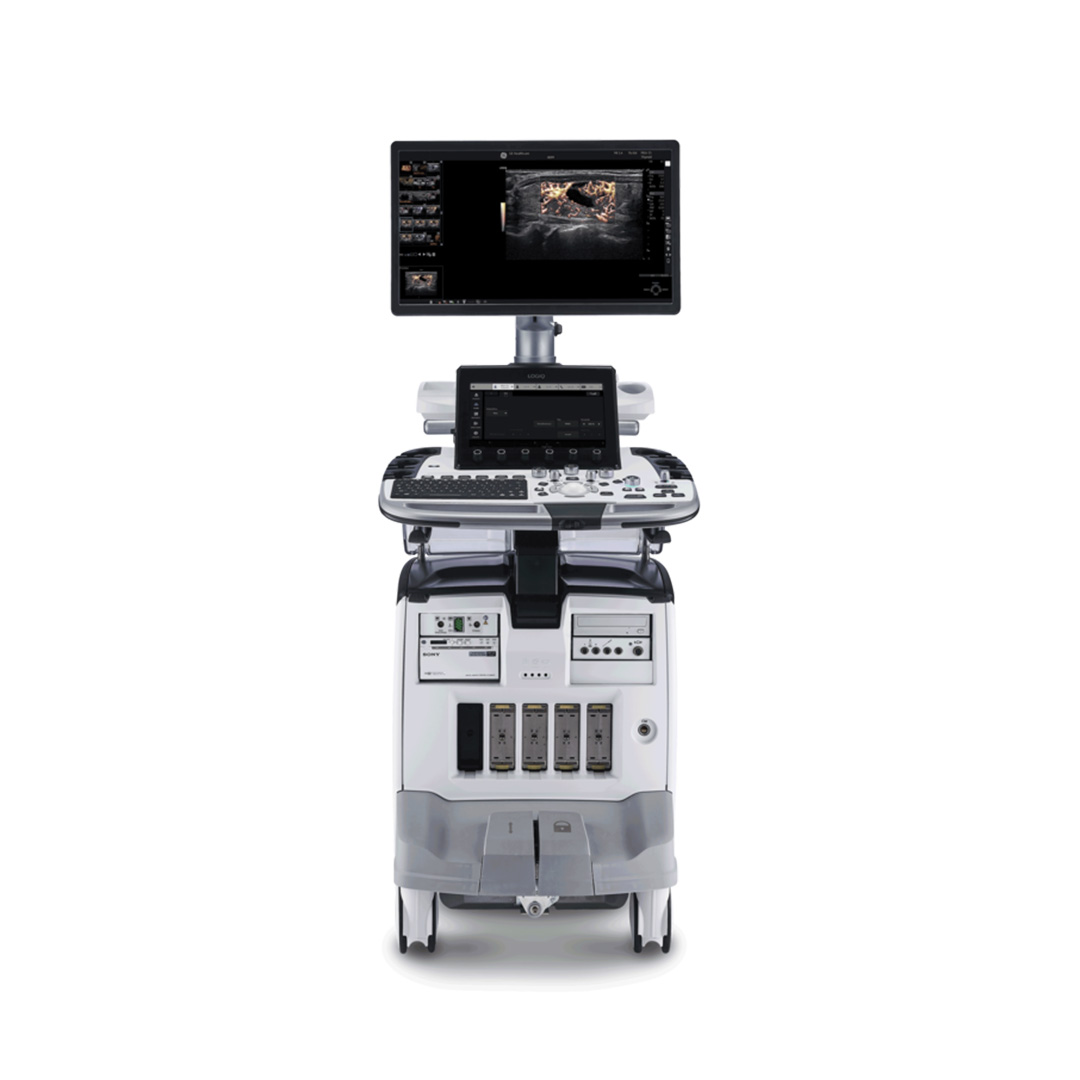

GE Logiq E10
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
GE Logiq E10 Features
The GE Logiq E10 is a state-of-the-art ultrasound imaging system that provides exceptional diagnostic accuracy across various clinical applications. Its advanced cSound architecture ensures precise and consistent imaging, while its innovative design enhances healthcare professionals’ workflow efficiency. Ideal for abdominal, vascular, obstetric, gynecologic, pediatric, and cardiac imaging, the Logiq E10 delivers reliable performance and unparalleled image quality.
- cSound Imaging Technology: Offers real-time data processing with 11,750,000 channels for superior image clarity.
- 22-Inch OLED Display: High-resolution monitor with anti-glare and wide viewing angles for optimal visualization.
- Wide Clinical Application: Supports abdominal, OB/GYN, vascular, small parts, and pediatric imaging.
- Advanced 4D Imaging: Real-time 4D volume imaging for enhanced diagnostic capabilities.
- Speckle Reduction Imaging (SRI-HD): Improves image quality by reducing noise for better lesion detection.
- Auto Optimization: Automatically adjusts imaging parameters for consistent and optimized results.
- Integrated Connectivity: Features HDMI, USB, and Ethernet ports for seamless data sharing and storage.
GE Logiq E10 Specifications
Dimensions
- Height: 51 in (1300 mm)
- Width: 23 in (585 mm)
- Depth: 35.5 in (900.9 mm)
- Weight: 278 lbs (126 kg).
Power AC
- Voltage: 100–240 VAC
- Frequency: 50/60 Hz
- Power Consumption: Maximum 0.9 KVA with peripherals.
Display
- Screen Size: 22 inches
- Resolution: 1920 × 1080 pixels
- Screen Type: OLED, anti-glare, wide viewing angles
- Touch Screen: 12.1-inch high-resolution interactive color touch display.
Imaging Capabilities
- Operating Modes: B-Mode, M-Mode, Color Flow Mode, B-Flow, Power Doppler Imaging, and more
- 4D Imaging: Real-time and static 3D/4D volume imaging
- Shear Wave Elastography: Quantitative tissue stiffness measurement
- Strain Elastography: For tissue deformation analysis
- Extended Field of View: LOGIQView for wide imaging coverage.
System Features
- Probe Ports: 4 active probe ports, 2 inactive storage ports
- Data Storage: 1 TB HDD, 128 GB SSD, and integrated DVD-R Multi Drive
- Connectivity: HDMI, USB 3.0, Ethernet, DICOM support, and wireless LAN (optional)
- Audio: Integrated speakers with sub-woofer for premium sound.
Refurbished GE Logiq E10 Ultrasound
Soma Tech Intl offers the GE Logiq E10 ultrasound system up to 50% below OEM prices with the same service and warranty as new. The Logiq E10 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Logiq E10, it is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on ultrasound systems. If necessary, parts are replaced to ensure that all aspects of the ultrasound meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the ultrasound is functioning like new, it undergoes a specialized cosmetic restoration. The Logiq E10 is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Logiq E10 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished ultrasound system, contact Soma at [email protected] or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase ultrasound systems. If you or your facility are looking to sell your GE Logiq E10, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
