Philips ClearVue 850

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Philips ClearVue 850 Ultrasound Features

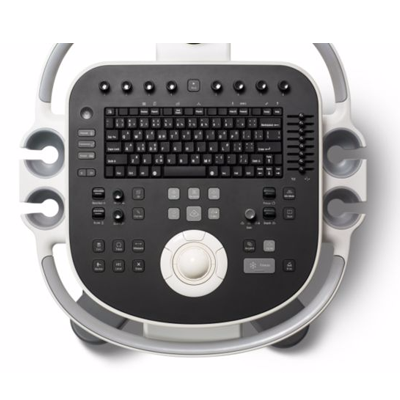

The Philips ClearVue 850 is a midrange Ultrasound. The ClearVue 850 is mainly used for women’s health but also offers ultrasonic imaging for vascular, cardiac, small parts, and echo exams. The System shares the same architecture as the ClearVue 350 , 550, and 650. The only difference is that the CleaVue 850 offers more advanced features. These features include; Iscan, AutoSCAN, SoonoCT, and XRES. The 850 offers additional 4D imaging options 4D Convex, 4D transvaginal, Auto Face Reveal, iSlice, and Fetal STIC. Philips Ultrasound can provide 2D, 3D, and 4D imaging options. Additional features include Blood flow and stress imaging. The ultrasound system offers quick action buttons for the most commonly used obstetric measurements and imaging modes. The 19-inch monitor comes on an articulating arm along with a height-adjustable control panel, for maximum user comfort.

  • 19-inch, 360-degree articulating monitor
  • Ergonomically advanced console for user height adjustment and comfort
  • Monitor tilt and swivel</li >
  • Monitor articulating arm
  • AutoSCAN automatically identifies tissue type and continuously adjusts image gain
  • 3D/4D for visualization and analysis of volume data
  • Upgradeable to 4D
  • Stress echo for cardiac imaging
  • Strain elastography
  • Pulse inversion harmonics
  • SonoCT
  • XRES
  • FloVue advanced imaging mode for direct visualization of blood flow in vasculature
  • Intima media thickness (IMT) imaging to automate measurement
  • iSlice for quick volumetric display
  • Curved ROI for OB imaging
  • One-button iSCAN
  • Active Array for superb image quality
  • Broadband beamforming
  • Tissue harmonic imaging

Philips ClearVue 850 Ultrasound Specifications


  • Width: Keyboard: 500 mm (19.7 in) Caster: 720 mm (28.3 in)
  • Depth: Maximum: 697 mm (27.4 in) Caster: 800 mm (31.5 in)
  • Height: Maximum: 1412 mm (55.6 in)
  • Weight: 56 kg, 123 lb

General Specifications

  • Digital beamformer
  • Displayed imaging depth: 0 – 33 cm (probe dependent)
  • Minimum depth of field: 0 – 2 cm (probe dependent)
  • Maximum depth of field: 0 – 33 cm (probe dependent)
  • Continuous dynamic receive focus/continuous dynamic receive aperture
  • Adjustable dynamic range up to 120 dB


  • Nominal input voltage: 100-240 VAC, frequency 50/60 Hz
  • Power consumption maximum: 400 VA with peripherals

System Overview

  • Monitor (inch): 19” LCD
  • Tilt/Rotate Adjustable Monitor: Yes
  • Monitor Resolution: 1280*1024
  • Touch Screen (Inch): No
  • Trackball or Trackpad: Trackball
  • CP Back-Lighting: Yes
  • Weight: 115 lbs (52kg)
  • Probe Ports: 4
  • Battery: No
  • Sleep Mode (Quick Start): No
  • Maximum Depth of Field: 30cm
  • Minimum Depth of Field
  • Cart (HCU): No
  • Independent Steer & Lockable Wheels: Yes

Imaging Modes

  • 2D, M mode: Yes
  • M-color Flow Mode: Yes
  • Anatomical M-mode: Yes
  • Trapezoidal Mode: Yes
  • Color, Power Angio, Pulse Wave Doppler: Yes
  • Bi-directional Power (=HD FLOW): Yes
  • SCW Doppler: Yes
  • Tissue Doppler(Velocity) Imaging: Yes
  • Freehand 3D: Yes
  • Live 3/4D OB/GYN: Yes
  • HD Live: No
  • STIC (Spatio-Temporal Image Correlation): Yes
  • Live 3D Echo: No
  • Stress Echo: No
  • Strain and Strain Rate (Cardiac): No
  • B Flow: Yes
  • Panoramic Imaging (=Logiq view): Yes
  • Contrast Imaging – Cardiac: No
  • Contrast Imaging – General Imaging: No
  • Strain-based Elastography: Yes
  • Shear Wave Elastography No


  • DICOM 3.0: Yes
  • DICOM SR_Cardiac: Yes
  • DICOM SR_Vascular: Yes
  • JPEG, WMV, & AVI: Yes
  • USB: Yes(3)
  • HDD/SDD: 500GB
  • DVD/CD RW: Yes
  • Wireless LAN: Nos

Refurbished Philips ClearVue 850 ultrasound

Soma Tech Intl offers the Philips ClearVue 850 ultrasounds up to 50% below OEM prices with the same service and warranty as new. The Philips ClearVue is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our in-house biomedical engineers that are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to ensure that all aspects of the Philips ultrasound are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the ultrasound is working like new it undergoes a unique cosmetic restoration process. The Philips ClearVue 850 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Philips ClearVue 850 ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Philips ClearVue ultrasound contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Philips ClearVue 850. If you or your facility is looking to sell your Philips ultrasound, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasound takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
