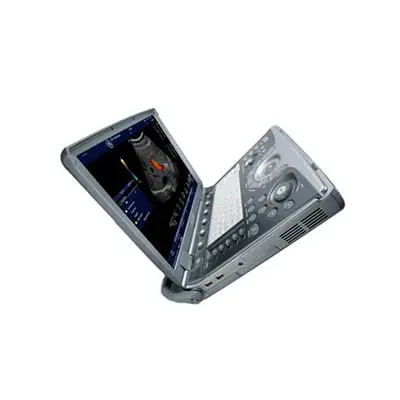

GE Logiq i Portable Ultrasound

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

GE LOGIQ i Features

The GE Logiq i is a portable ultrasound system. Offering point-of-care diagnostic imaging technology. The GE Logiq i ultrasound system can be used for many applications including; abdominal, obstetrics, gynecology, vascular, musculoskeletal, and more. The Logiq i comes with improved image quality that allows for deeper anatomy penetration. Technologies like Speckle Reduction imaging help enhance the resolution, allowing for better image quality. The GE Ultrasound system is equipped with a 15-inch LCD monitor that can showcase multiple imaging modes; from anatomical M-Mode, CW Doppler, PW Doppler, and others. The system offers data storage and image archiving as well. Data can easily be sent wirelessly from the ultrasound via a DICOM connection.

  • SRI-HD with organ-specific imaging for tissue-specific contract resolution.
  • CrossXBeam imaging for improved border detection.
  • B-Steer Plus for enhanced target-needle visualization.
  • Raw data imaging for improved workflow.
  • Wireless networking for convenience and enhanced workflow on portable procedures.

GE LOGIQ i Specifications

Dimensions

  • Height: 2.49 In (6.1 cm)
  • Width: 13.88 In (34 cm)
  • Depth: 11.71 In (28.7 cm)
  • Weight: 10.1 lb (4.6 kg)

Power

  • Voltage: 100- 240 V AC
  • Frequency: 50/60 Hz
  • Power: Max. 130 VA with Peripherals

Console

  • Laptop Style
  • Integrated HDD (40GB)
  • Lithium-Ion Battery Pack (standard)
  • Wireless LAN Support
  • USB ECG (AHA / IEC) (Optional) Support
  • CWD (Optional) Support
  • 1 probe port with micro-connector
  • Rear handle

Screen

  • Type: Color LCD
  • Size: 15 In 1024×768
  • Angles: 0 to 160°
  • Interactive Dynamic Software Menu
  • Integrated Speakers
  • Brightness Adjustment
  • Audio Volume Adjustment

Applications

  • Abdominal
  • Cardiology
  • Obstetrical
  • Gynecological
  • Musculoskeletal
  • Vascular
  • Urological
  • Small Parts
  • Pediatric and Neonatal
  • Intraoperative

Scanning Methods

  • Electronic Convex
  • Electronic Linear with slant scanning

Transducer Types

  • Convex Array
  • Microconvex Array
  • Linear Array
  • Phase Array

Operating Modes

  • B-Mode
  • M-Mode
  • Anatomical M-mode
  • Color Flow Mode (CFM)
  • Power Doppler Imaging (PDI)
  • Continuous Wave Doppler (CWD, optional)
  • Pulse Wave Doppler (PWD)

Standard Features

  • High Resolution 15 inch Color LCD
  • 325 Frames (15 sec) Standard CINE Memory (64MB)
  • 40GB Hard Drive
  • External DVD R/W storage
  • Loops storage-from ‘on the fly’ scanning and from memory
  • Automatic Optimization
    • Auto Tissue Optimization: ATO
    • Auto CFM Optimization: ACO
    • Auto Spectrum Optimization: ASO
  • ACE (Adaptive Color Enhancement)
  • TruAccess, Raw Data Processing
  • Patient Information Database
  • Image Archive on Hard Drive
  • Full M&A Calculation Package with Real Time Auto Doppler Calculations
  • Vascular Calcs
  • Cardiac Calcs
  • OB Calcs and Tables
  • Fetal Trending
  • Multi Gestational Calcs
  • Hip Dysplasia Calcs
  • Gynecological Calcs
  • Urological Calcs
  • Renal Calcs

Advanced Software Applications

  • Easy 3D
  • DICOM 3.0 Connectivity
  • LOGIQ View
  • SRI HD

Hardware Options

  • Battery Pack
  • 3 pedal Foot Switch (IPX8)
  • 1 pedal Foot Switch (IPX1)
  • Isolation Cart
  • CW Doppler
  • USB ECG (AHA / IEC)(Optional)

Media and Peripherals

  • External USB DVD-RW (standard)
  • USB thermal B&W printer, Sony UPD897 (option)
  • USB thermal color printer, Sony UPD23 MD (option)
  • USB DeskJet color printer, HP460/HP Pro K550 (option)
  • Wireless LAN using Linksys WUSB54G supporting the 802.11a/b/g formats, where available (option)
  • NetGear USB Wireless Adapter (Option)
  • Memory Stick (option)
  • USB2.0 Hub (option)

Display Modes

Simultaneous Capability

  • B/PW
  • B/CFM or PDI
  • B/M
  • Dual B (B/B)
  • Dual B + CFM or PDI
  • Real-time Triplex Mode

Selectable Alternating Modes

  • B/M
  • B/PW
  • B/CW
  • B + CFM (PDI)/M
  • B + CFM (PDI)/PW
  • B + CFM (PDI)/CW
  • 3D – Mode

Multi-Image Split Screen

  • Live and/or frozen
  • B + B/CFM or PDI
  • Independent Cine playback

Zoom

  • Read/Pan and from archive

Colorized Image

  • Colorized B
  • Colorized M
  • Colorized PW
  • Colorized CW

Time Line Display

  • Independent Dual B/PW/CW Display
  • Display Formats:
    • Top/ Bottom
    • Side/ Side selectable
  • Format Size:
    • 1/2:1/2
    • 1/3: 2/3
    • full format (switchable after freeze)
  • Update mode: timed based on

Refurbished GE Logiq i Portable Ultrasound

Soma Tech Intl offers the GE Logiq i ultrasound up to 50% below OEM prices with the same service and warranty as new. The GE Ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to make sure that all aspects of the Logiq i are to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE Logiq is working like new it undergoes a special cosmetic restoration process. The ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE Logiq Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished stretcher contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase GE Logiq ultrasounds, If you or your facility is looking to sell your ultrasounds, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasound takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
