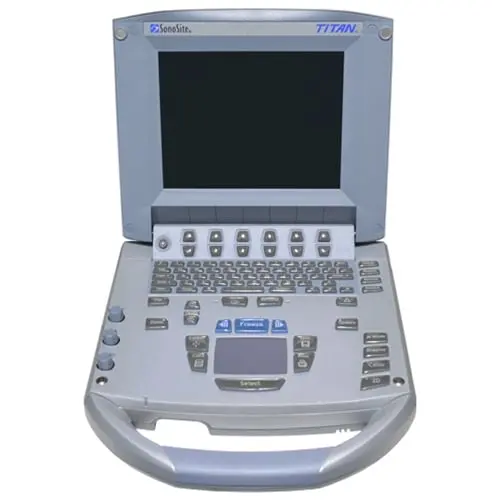

SonoSite Titan Portable Ultrasound

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

SonoSite Titan Features

The SonoSite Titan is a portable ultrasound system. The SonoSite Titan is based on the same technology as the Sonosite 180. The system offers a large high-resolution 8-inch LCD screen in a laptop-style ultrasound machine. The Sonosite system provides ultrasonic imaging for vascular, musculoskeletal, Anesthesiology, internal medicine, point-of-care, Emergency use, and Women’s health. The system provides amazing imaging capabilities with modes such as Pulse Wave Doppler, Color Power Doppler, Tissue Harmonic Imaging, and M-Mode.

  • All-digital LCD high-resolution display.
  • Triple Transducer Connect (TTC).
  • Integrates easily into your existing network via composite video, S-video, USB, VGA, or Ethernet.
  • SiteLink DICOM options.
  • CompactFlash memory.
  • Intuitive user-friendly interface.
  • Point-of-care connectivity.

SonoSite Titan Specifications


  • Length: 11.8 in (29.97 cm)
  • Width: 10.9 in (27.69 cm)
  • Depth: 3 in (7.62 cm)
  • Weight: 8.3 lbs (3.76 kg) with the C60 transducer and battery installed


  • Type: LCD (Liquid Crystal Display)
  • Length: 5.19 in (13.18 cm)
  • Width: 6.75 in (17.5 cm)
  • Diagonal: 8.5 in (21.59 cm)


  • Type: Lithium-ion battery pack
  • Cells: 6
  • Volts: 11.25 VDC
  • Amp Hours: 4.4 Ah
  • Charge Time: 5-6 Hours
  • Run time is 2 hours or more, depending on imaging mode and display brightness.

Imaging Modes

  • 2D (256 gray shades)
  • Color power Doppler (CPD) (256 colors)
  • Directional color power Doppler (DCPD) (256 colors)
  • M-mode
  • Pulsed wave (PW) Doppler
  • Tissue Harmonic Imaging


  • Abdominal Imaging
  • Cardiac Imaging
  • Gynecology and Fertility Imaging
  • Interventional and Intraoperative Imaging Applications
  • Obstetrical Imaging
  • Pediatric and Neonatal Imaging
  • Prostate Imaging
  • Superficial Imaging
  • Vascular Imaging


All transducers are lightweight with rapid, pinless connectors and feature a user-selectable menu to adjust frequency settings to suit the patient’s size. 2D settings are Penetration, General, and Resolution Imaging.

  • C60/5-2MHz broadband curved array for general purpose, abdominal and obstetric imaging. 2D, CPD, velocity color, PW Doppler. Biopsy guide available.
  • ICT/8-5MHz broadband intracavitary transducer for obstetric and gynecologic imaging. 2D, CPD, DCPD, PW Doppler. Biopsy guide available.
  • C11/8-5MHz broadband tightly curved array for neonatal and pediatric imaging. Applications include general imaging, abdominal, cardiac, and neonatal heads. 2D, CPD, velocity color, PW, and CW Doppler.
  • C15/4-2MHz broadband is tightly curved array. Applications include adult cardiology general imaging, and abdominal. 2D, CPD, velocity color, PW, and CW Doppler.
  • L38/10-5MHz broadband linear array. Applications include small parts, breast, vascular, musculoskeletal & superficial imaging. 2D, CPD, velocity color, PW Doppler. Biopsy guide available.
  • HST/10-5MHz broadband linear array. Applications include intraoperative, vascular & superficial imaging. 2D, CPD, DCPD, PW Doppler.
  • C8/8-5MHz broadband intracavitary transducer for prostate imaging. 2D, CPD, PW Doppler. Biopsy guide available.
  • L25/10-5MHz broadband linear array for venous access procedures. CPD. Biopsy guide available.

Remappable Controls

  • Soft keys to drive advanced features
    Delta key: user selectable functions can be assigned to the delta key for increased ease of use.

System Parameters

  • System dynamic range: up to 155 dB.
  • Frame rates up to 150Hz maximum acquisition, 60Hz internal video display.

Image Storage and CINE

  • Storage: High capacity using a flash card. 64MB and 256MB ScanDiskTM. The number of images saved to the flash card varies depending on the card storage capacity.
  • Cine: Review of up to 220 frame-by-frame images.
  • Connect directly to a PC with SiteLink Image Manager software using a USB or ethernet cable from the system. Allows transfers of high-resolution bitmap images. The software allows batch compression to JPEG on a PC.
  • Image transfer can be active while live scanning on the TITAN system.

Clinical Analysis Package

  • OB Calculation Package – The obstetric package includes fetal biometry measurements via user-selectable authors.
  • Vascular Calculation Package – The vascular package includes Lt/Rt CCA, ICA, ECA, ICA/CCA Ratio, user-defined ratio, angle correction, and volume flow.
  • Volume calculations via diameters.
  • Cardiac calculation package.
  • SonoCalc- IMT analysis PC-based package.

Measurement Tools

  • 2D Distance calipers – two sets of Ellipse for area and circumference measurements.
  • M-Mode Distance and time caliper set Heart rate.
  • Doppler Velocity caliper – two sets.


  • Operates via battery or AC power – from 1.5 up to 4 hours on a fully charged battery, the new battery life depends on the active functions used and keystrokes.
  • Battery: Rechargeable lithium ion.
  • AC: Via universal power adapter, 100-240 VAC, 50-60 Hz.

Display Annotation

  • Text and pictograms – User-selectable, application-specific text via function keys.

Peripheral Connections

  • Composite video output (NTSC/PAL) to a video cassette recorder, video printer, or external monitor.
  • Connect to a PC via USB or ethernet to download high-resolution bitmap images.
  • S-video output.
  • Ethernet output.
  • RGB output.


  • DICOM print and storage class software.
  • DICOM worklist.

Refurbished SonoSite Titan Ultrasound Machine

Soma Tech Intl offers Refurbished SonoSite Titan Ultrasound up to 50% below OEM prices with the same service and warranty as new. The SonoSite Titan Ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts the Sonosite Titan system is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Sonosite Titan. If necessary, parts are replaced to make sure that all aspects of the pump are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the SonoSite Titan system is working like new it undergoes a special cosmetic restoration process. The Ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the infant warmer functions and looks like new. Soma Technology is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished SonoSite Titan portable Ultrasound
contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a SonoSite Titan. If you or your facility is looking to sell your SonoSite, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned SonosSite Titan Portable ultrasound to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Tech is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our Portable Ultrasounds?

Soma Tech Intl offers a wide range of Portable Ultrasounds. If you have any questions about our portable ultrasound machines or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your portable ultrasound machines? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
