Philips Respironics Trilogy 202

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

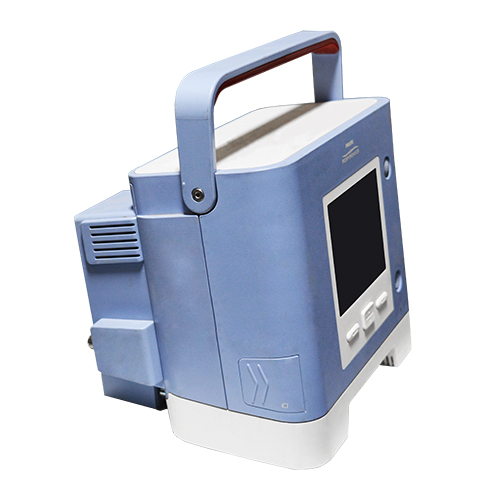

Philips Respironics Trilogy Ventilator 202 Features

The Philips Respironics Trilogy 202 is a Ventilator that offers both invasive and non-invasive ventilation. The Trilogy ventilator ventilator can control volume and pressure in the ventilation, making it easier for the patient to breath. The Trilogy is a ventilator that has a microprocessor control built into the system. Unlike the 100 and 200 Versions of the Trilogy, it has the air and Oxygen blended in the machine and runs at 50 psi, where the other version of the Philips Respironics Trilogy run off of low flow O2. The machine can be used in both home care, hospital care, and hospital transport settings. It comes with an internal battery that can last up to 3 hours and an additional backup battery that lasts up t 6 hours. The Philips Respironics Trilogy 202 can be used on a wide range of patients from Pediatrics to Adults.

The Respironics Trilogy provides continuous ventilation support for those individuals that are suffering from acute or chronic respiratory failure, and chronic repository distress. The system comes with an Auto-Track algorithm that can enhance the patient’s breathing by adjusting and changing the breathing patterns in the ventilator.

The Philips Respironics Trilogy ventilation system comes with an SD card slot on the side of the machine. it can record breath-by-breath patient data and the last 72 hours of waveforms This makes it easy and convenient to transfer the Data from the ventilator to a central data station in the hospital setting.

  • Compact design with long-life internal battery for intra-hospital transport.
  • Supports active and passive circuits for invasive and noninvasive ventilation.
  • Innovative leak compensated volume control ventilation.

Philips Respironics Trilogy Ventilator 202 Specifications


  • Height: 9.25 in (23.52 cm)
  • Width: 11 in (28.45 cm),/li>
  • Length: 8.3 in (21.13 cm)
  • Weight: 13.45 lbs (6.1 kg) (with the detachable battery attached)


  • CPAP : 4 – 20 cmH20 (passive leak port circuits) cm H2O
  • IPAP: 50 cm H2O
  • EPAP/PEEP (a) : 0 – 25 cmH20 (active valve circuits) cm H2O
  • EPAP/PEEP (b): 4 – 25 cmH20 (passive leak port circuits) cm H2O
  • Pressure support: 0 – 30 cmH2O cm H2O
  • Tidal volume: 50 – 2000 ml
  • Breath rate(a): 0 – 60 BPM (AC mode) beats per minute
  • Breath rate(b): 1 – 60 BPM (all other modes) beats per minute
  • Inspiratory time: 0.3 – 5.0 s Synchrony features
  • Rise time: 1 – 6 (relative scale)
  • Ramp start pressure (a): 0 – 25 cmH20 (active circuits) cm H2O
  • Ramp start pressure (b): 4 – 25 cmH20 (passive circuits) cm H2O
  • Ramp start pressure (c): 4 – 19 cmH20 (CPAP mode) cm H2O
  • Ramp time Off 5 – 45 min
  • C-Flex Off 1 – 3 (relative scale)
  • Flow trigger sensitivity: 1 – 9 l/min
  • Flow cycle sensitivity: 10 – 90 %


  • Operating temperature: 5 – 40 °C
  • Relative humidity: 15 – 95 %
  • Storage temperature: -20 – 60 °C
  • Atmospheric pressure: 60 – 110 kPa (450 – 825 mmHg)


  • Input voltage: 100 – 240 VAC and 50/60 Hz and 2.1 A
  • Detachable battery voltage: 14.4 VDC
  • Internal battery life: 3 hours under normal conditions hr
  • Detachable battery life: 3 hours under normal conditions hr
  • external battery connection: 12 VDC

Volume Modes

  • MPV Mouthpiece Ventilation Mode: Yes
  • Pressure control (PC): Yes
  • Synchronized intermittent mandatory ventilation (SIMV): Yes
  • SIMV with pressure support (SIMV w/PS): Yes
  • Control ventilation (CV): Yes


  • Low tidal volume Off: 50 – 2000 ml
  • Circuit disconnect Off: 10 – 60 sec
  • Apnea Off 10 – 60 s and 4 – 60 BPM
  • High tidal volume Off: 50 – 2000 ml
  • High minute ventilation Off: 1 – 99 l/min Off, 1 – 99 l/min
  • Low minute ventilation Off: 1 – 99 l/min
  • High respiratory rate Off: 4 – 80 beats per minute
  • Low respiratory rate Off : 4 – 80 beats per minute

Pressure Modes

  • Pressure control (PC): Yes
  • Pressure control-SIMV (PC-SIMV): Yes
  • Spontaneous ventilation (S): Yes
  • Spontaneous ventilation with timed back-up (S/T): Yes
  • Timed ventilation (T): Yes


  • Detachable backup battery: Offering up to 3 hours additional operating time
  • Hospital roll stand: Provides convenient accessory basket and humidifier mount
  • DirectView: 1 GB SD card data storage integrated into the ventilator software

Monitored Parameters

  • Tidal volume: 0 – 2000 ml
  • Minute ventilation: 0 – 99 l/min
  • Estimated leak rate: 0 – 200 l/min
  • Respiratory rate: 0 – 80 beats per minute
  • Peak inspiratory flow: 0 – 200 l/min
  • Peak inspiratory pressure: 0 – 99 cm H2O
  • Mean airway pressure: 0 – 99 cm H2O
  • % patient triggered breaths: 0 – 100 %
  • I:E ratio: 9.9:1 – 1:9.9

Synchrony Features

  • Auto-Trak sensitivity: Auto-Trak sensitivity Auto-adaptive triggering, cycling, and leak compensation (available in all modes, the passive circuit only)
  • Adjustable flow triggering: 1 – 9 l/min (available in all modes and circuit types) l/min

Circuit Types

  • Active exhalation valve with proximal airway pressure (PAP): Yes
  • Active exhalation valve with flow sensor: Yes
  • Passive exhalation port: Yes

Refurbished Philips Respironics Trilogy 202 Ventilator Systems

Soma Tech Intl offers the Philips Respironics Trilogy ventilator up to 50% below OEM prices with the same service and warranty as new. Soma Technology technically and cosmetically refurbishes these Respironics Trilogy back to the original engineering manufacturer specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the Trilogy 202 ventilator are in working order, the ventilator is calibrated back to OEM specifications, to make sure it works exactly the way it did when it originally left the manufacturer. Soma Technology not only refurbishes the product, but each unit also goes through a special cosmetic restoration process. The trilogy ventilator is cleaned and minor scratches and dents are repaired, and decals are replaced if necessary.

Soma Tech Intl also purchases used and pre-owned Philips Respironics Trilogy ventilators. If you or your facility wants to sell your Respironics Trilogy, Soma Technology has an experienced purchasing department that makes the process headache and hassle-free. When selling your ventilator system to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma Tech not only buys ventilators but also buys a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our ventilators?

Soma Tech Intl offers a wide range of ventilators. If you have any questions about any of our ventilators or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your ventilators? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
