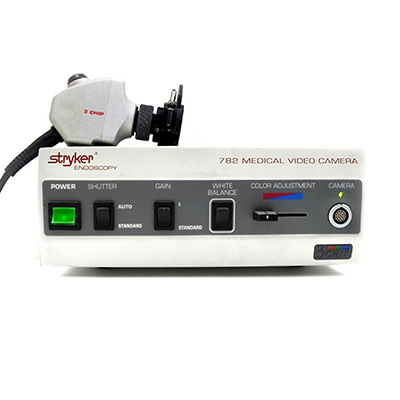

Stryker 782 Camera System

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Stryker 782 Camera System Features

The Stryker 782 three chip camera is for endoscopy use and provides high resolution for superior pictures and the clearest images possible with no interference.

  • Natural colors
  • Highest resolution for the clearest picture possible
  • Imaging System: 768 x 494 pixels
  • Scanning System: Progressive Scan of 525 lines, 2:1 interlace
  • Resolution: Horizontal: 600 lines, Vertical: 450 lines
  • Internal/External synchronization (automatic selection)
  • 60 dB signal-to-noise ratio
  • 1.5 lux illumination
  • 12.5 lbs weight

Stryker 782 Camera System Specifications


  • Camera Control Unit: 9.7″ W x 4.0″ H x 16″ D
  • Camera Head Cable to Camera Control Unti: 10.5 foot sealed cable

Video Output

  • Composite: Two NTSC Standard, 1.0V P-p into 75 Ohms
  • Connector: BNC Coaxial
  • Component: Two S-VHS, Y-1.0V P-p C-0.29V P-P
  • Connector: -pin S-VHS

Scanning System

  • Progressive Scan, 525 lines, 2:1 Interlaced
  • Horizontal: 15,73 KHz
  • Vertical: 59.94 Hz

Questions about our Video Cameras?

Soma Tech Intl offers a wide range of video cameras. If you have any questions about any of our cameras or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your flexible rigid video cameras? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
