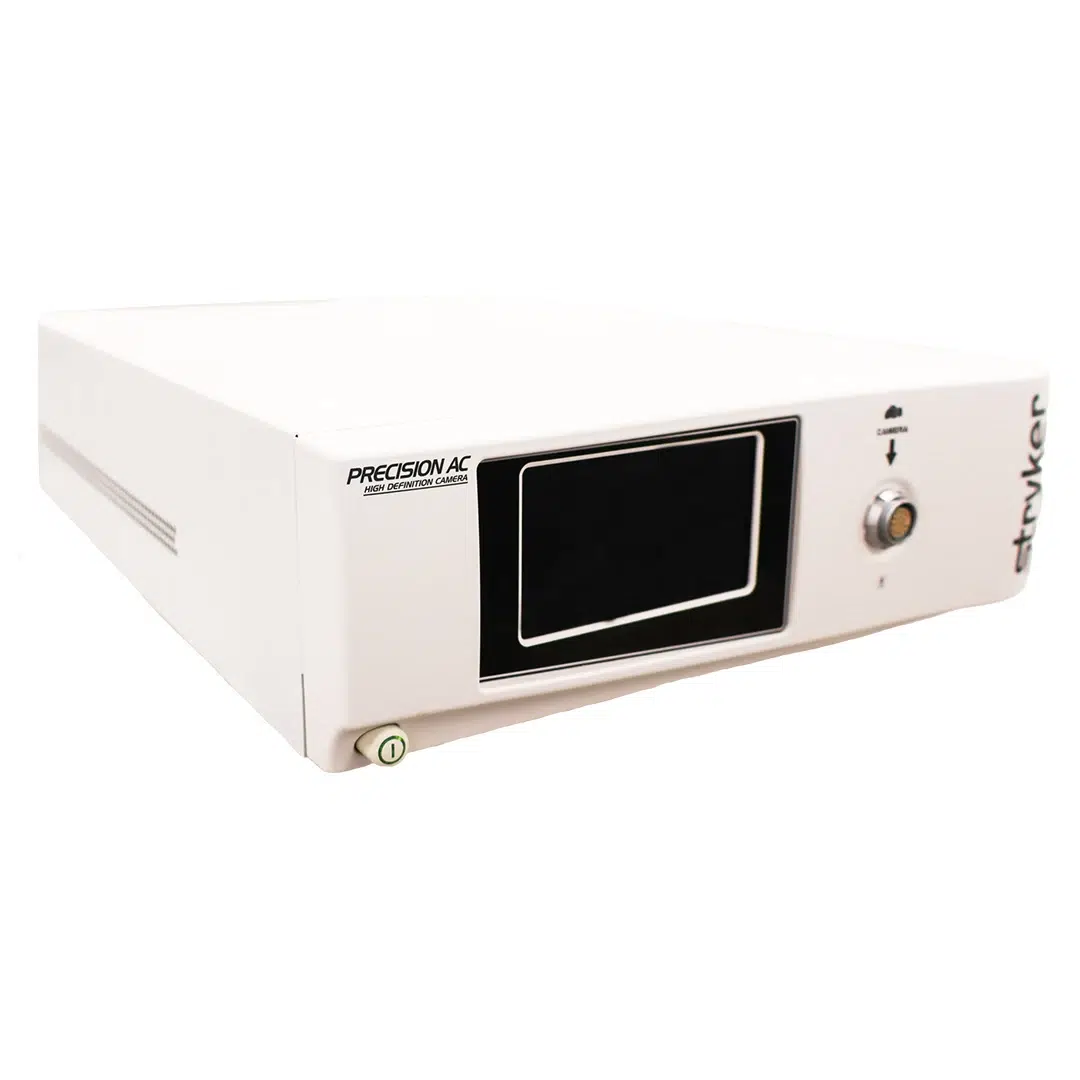

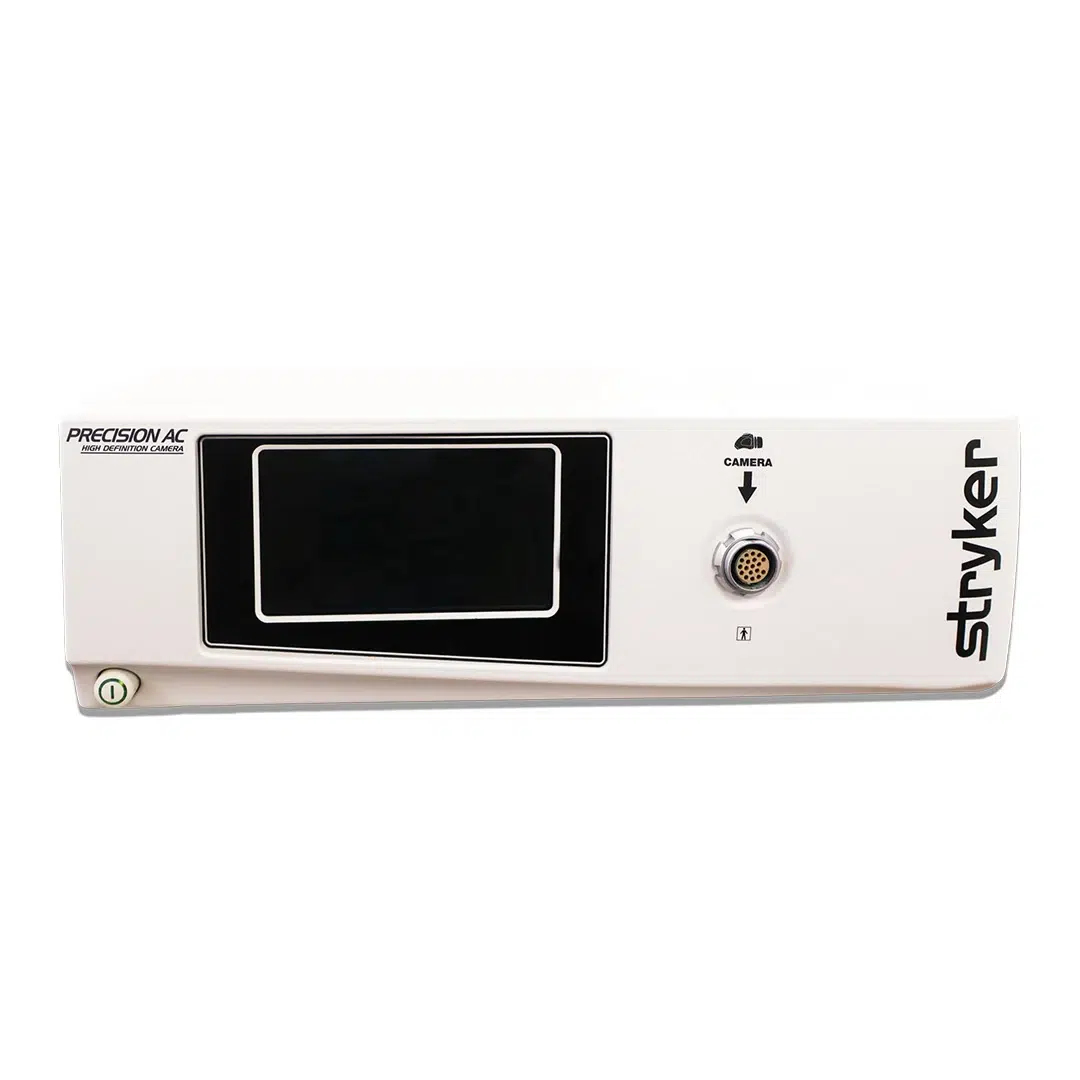

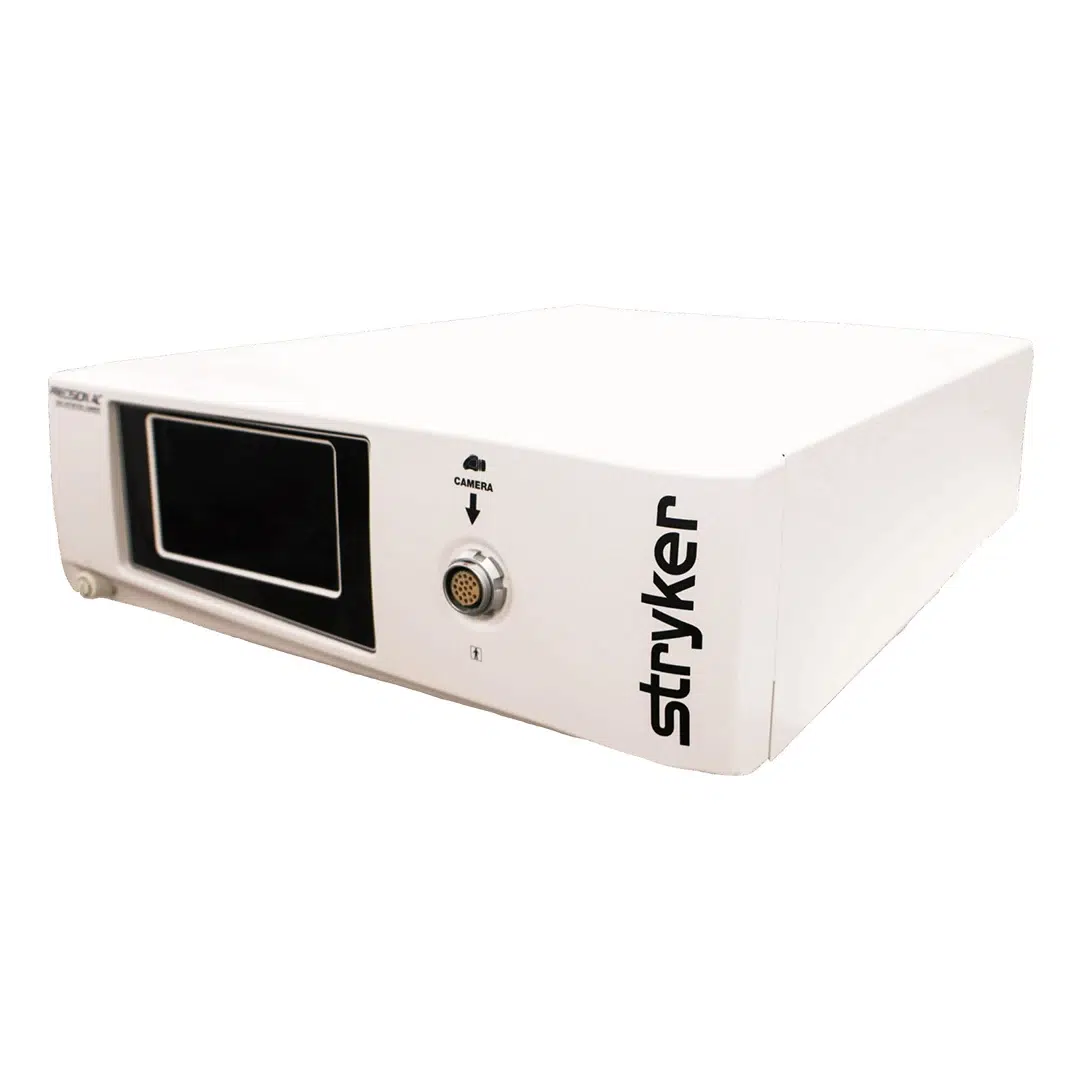

Stryker Precision AC Camera Features
The Stryker Precision AC camera is a medical imaging unit and the pinnacle of Stryker’s autoclavable camera systems. Representing the second generation in this distinguished line, the Precision AC is meticulously engineered to elevate the standard of visual acuity during medical procedures.
- 1080p Resolution
- Dynamic Range Enhancement (DRE) Technology
- Autoclavable Design
- Intuitive Control Unit with user-friendly controls, providing precise navigation and seamless integration into medical procedures.
Stryker Precision AC Camera Specifications
Dimensions
Camera Console
- Height: 4 in (10.2 cm)
- Width: 12.5 in (31.8 cm)
- Depth: 15.25 in (38.7 cm)
- Weight: 13 lb (6.0 kg)
Imaging System
- 1/3” Progressive Scan CCD – High Definition
Scanning System
- Horizontal: 64.00kHz (60.00 kHz)
- Vertical: 60.02 Hz (50.00 Hz)
Video Outputs
Digital/Analog:
- Two Digital Video Interrface (DVI/RGBHV)
- 1280 X 1024 (HD), 720p, 1080p (HDTV) format
Connector:
- 29-pin DVI-I
Y/C:
- One S-VHS
Connector:
- 4-pin mini-DIN
Digital Fiber:
- HD, HDTV (R, G, B, Clk)
Connector:
- Four Lucent fiber connectors with 1.25 mm ferrules
Auto Shutter Range
- 1/60 (1/50) – 1/50,000 second
Operating Conditions
- Temperature:10-300C
- Relative Humidity 25-75%
Mounting
- Endoscope eyepiece used with C-mount Coupler
- C-mount camera head used with C-mount scopes
- (C-mount coupler/scope thread: 1-32” UN 2A)
Input Electrical Ratings
- 100-240 VAC (0.2-0.7 A) @ 50-60 Hz
Refurbished Stryker Precision AC Camera System
Soma Tech Intl offers the Stryker Precision AC Camera up to 50% below OEM prices with the same service and warranty as new. Soma Tech technically and cosmetically refurbishes these cameras back to the original engineering manufacturer’s specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the Stryker Precision AC are in working order, the camera is calibrated back to OEM specifications, to make sure it works exactly the way it did when it originally left the manufacturer. Soma Technology not only refurbishes the product, but each unit also goes through a Special cosmetic restoration process. The Stryker Precision AC Camera is cleaned and minor scratches and dents are repaired, and decals are replaced if necessary.
Soma Tech Intl also purchases used and pre-owned Video cameras. If you or your facility wants to sell your Stryker Precision AC Cameras, Soma has an experienced purchasing department that makes the process headache and hassle-free. When selling your video camera system to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma not only buys video cameras but also buys a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to soma, send us a message here!
