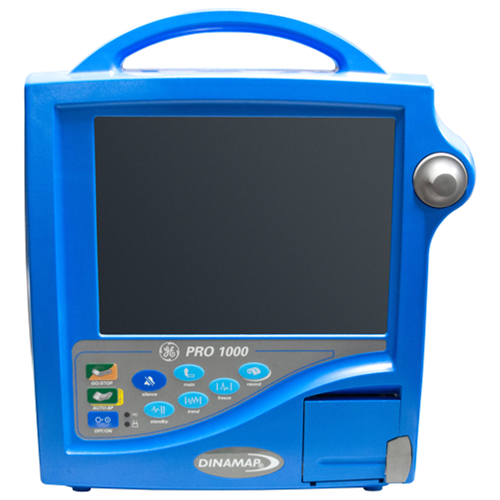

GE Dinamap Pro 1000

Quotes in less than 24 hours Download Specifications

Dinamap Pro 1000 Blood Pressure Monitor Features

The GE Dinamap Pro 1000 patient monitor gives you core vital signs with 3-lead ECG and respirations in one simple yet comprehensive system. And you can trust this monitor is built with only the gold standard technology for more accurate and reliable readings. Marquette ECG with EK-Pro and respirations offers comfort that lethal arrhythmias will be brought to your attention, The Dinamap Pro 1000
also offers Dinamap ASAP non-invasive blood pressure and pulse rate using technology that’s been clinically proven to be more accurate than competitive models, especially in hypertensive and hypotensive patients. IVAC TurboTemp takes an accurate temperature in about 7 seconds. And, we offer a choice among leading SpO2 technologies. Masimo SET or Nellcor OxiMax will minimize false alarms while providing accurate SpO2 values.

The Dinamap blood Pressure Machine monitor is easy to use and can enhance your productivity with its intuitive menu structure. With features that you can customize such as auto-cycle blood pressure and spot SpO2.

  • Comprehensive — One monitor for the entire range of patient populations – Neonatal, Pediatric, and adult
  • Versatile – Used in ER, Outpatient Surgery, Endoscopy, GI Lab, Special Procedures, Recovery/PACU, Telemetry, Med-Surg, and Labor & Delivery
  • Easy To Use – Big 10 “ Screen, Trim Knob, Simple Default Tables
  • DINAMAP NIBP and Marquette ECG with EK-Pro Technologies — Available in GE Solar modular monitors and Dash-configured monitors
  • Six Sigma Quality & Reliability – Built-In Quality Means Accurate Readings
  • Connectivity – Connects to Unity Network to Facilitate an Electronic Medical Record for the HIS/CIS

Dinamap Pro 1000 Specifications


  • Height: 12 in (30.5cm)
  • Width: 14.5 in (136.8 cm)
  • Depth: 4 in (10.2 cm)
  • Weight: 12 lbs; 5.5 kg)


  • Leads Available: 3-lead configuration, I, II, III, MCL1.

QRS amplitude range

  • 0.5 to 5.0 mV. QRS duration ranges from 40 to 120 ms.

Heart rate accuracy

  • 30 to 300 (adult/ped)/ 30 to 300 (neonate) beats/min ± 1 BPM or 1% of reading, whichever is greater.

Heartrate resolution

  • 1 beat/min

The NIBP Method is

  • oscillometric with step deflation.


  • manual, automatic, stat.


  • 30 to 290 mmHg (adult/ped), 30 to 140 mmHg (neonate).


  • 20 to 260 mmHg (adult/ped), 20 to 125 mmHg (neonate).


  • 10 to 220 mmHg (adult/ped), 10 to 110 mmHg (neonate).


  • 1 mmHg.

Pulse rate

  • 30 to 200 bpm ±3.5% (adult/ped), 30 to 220 bpm ±3.5% (neonate).

SpO2 Range

  • 0% – 100%.


  • 0% – 69% unspecified.

Pulse rate range

  • 20 to 250 beats/min. Accuracy: ±3 beats/min.

Temperature Scale

  • °F and °C. Range: 88.9°F (31.6°C) to 108°F (42.3°C). Accuracy: ±1.0°F (±0.6°C).


  • 0.1°F (0.1°C). Resolution: 0.1°F (0.1°C)

Battery Capacity

  • 7.0 amp-hr.

Battery life

  • 120 minutes (±10 minutes) using a fully charged internal battery.

Charge time

  • 3 hours maximum with the monitor switched off and 4 hours maximum with the monitor switched on..


Refurbished GE Dinamap Pro 1000 Blood Pressure Monitor

Soma Tech Intl offers Dinamap Pro 1000 up to 50% below OEM prices with the same service and warranty as new. The Pro 1000 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the blood pressure monitor, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on non-invasive blood pressure machines. If necessary, parts are replaced to make sure that all aspects of the Dinamap Pro 1000 are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Dinamap Pro 1000 is working like new it undergoes a special cosmetic restoration process. The Dinamap 1000 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Dinamap Pro 1000 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Dinamap Pro 1000 contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Dinamap Pro 1000 If you or your facility is looking to sell your Dinamap Pro 1000 blood pressure machine, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Dinamap Pro 1000 to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
