Mindray VS 9

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download SpecificationsDownload Specifications

Mindray VS 9 Features

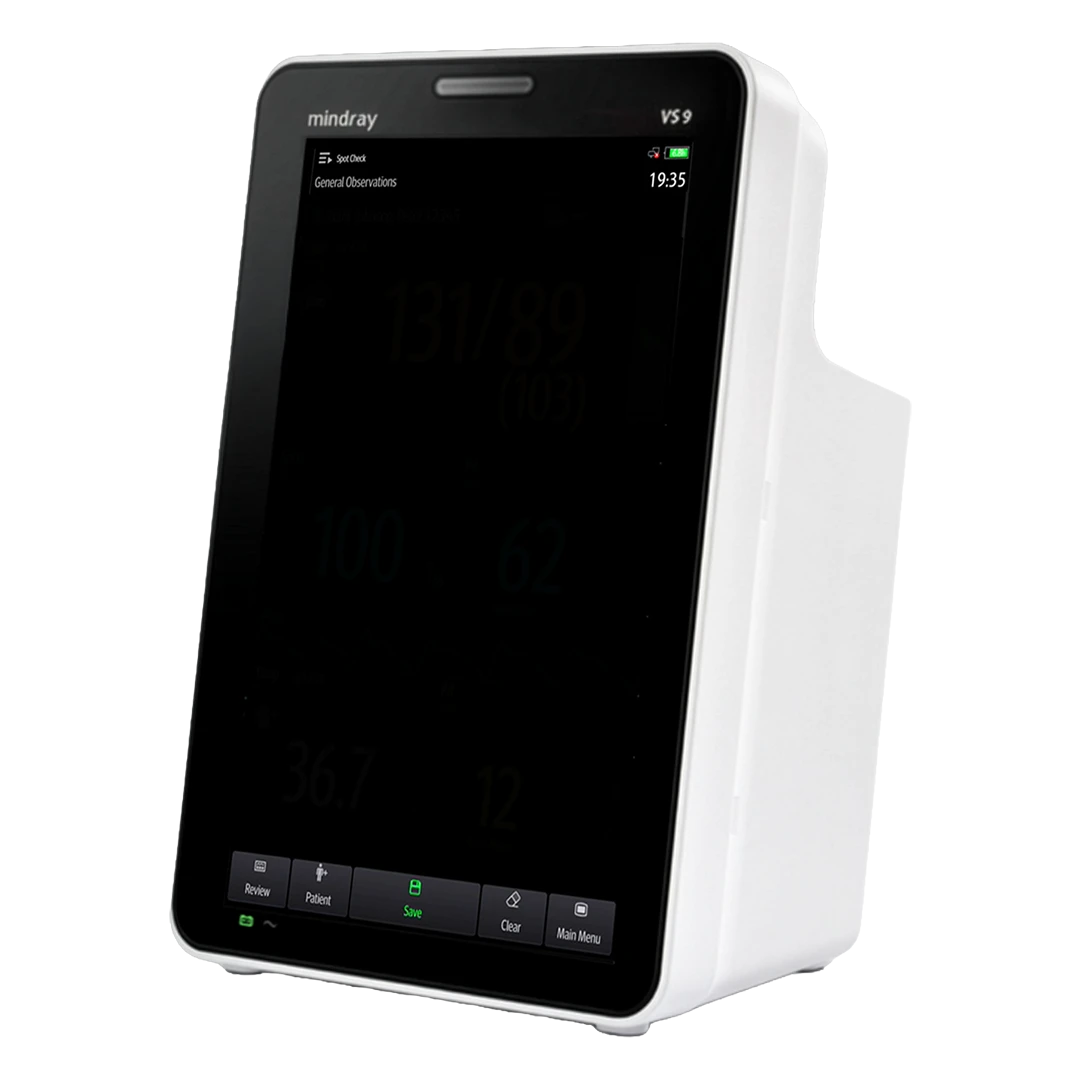

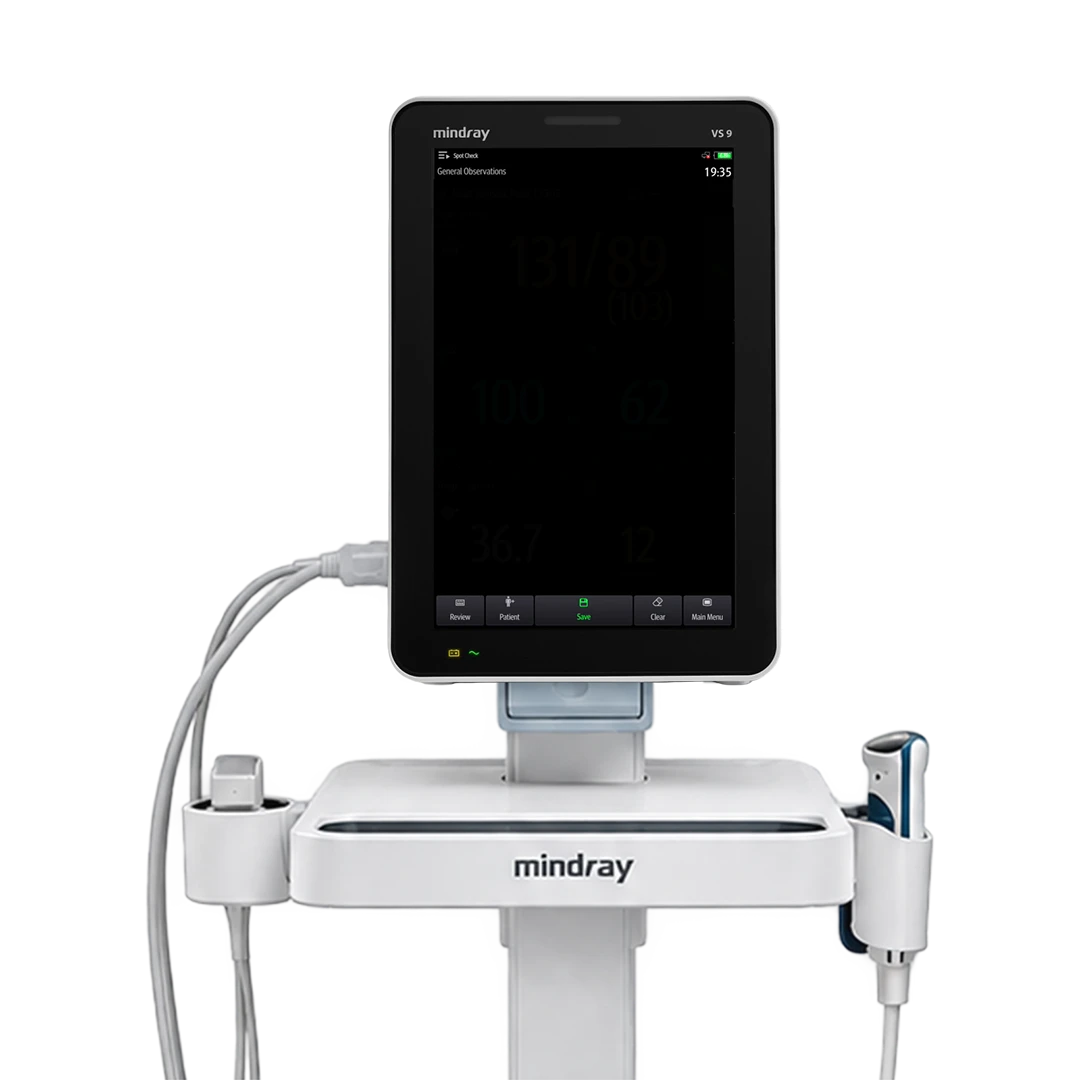

The Mindray VS 9 is a vital signs monitor designed for low-acuity care. It combines spot-check and continuous monitoring to support clinical decision-making and streamline hospital workflows. With capacitive touchscreen technology, like a smartphone, it incorporates a surprisingly new level of ease and speed. Featuring many intuitive tools and configurable workflow options to meet various clinical scenarios. The VS 9 is designed to be connected so clinicians can send vital signs at the point of care, improving efficiencies, and reducing errors.

  • Dual Monitoring Modes: Supports both spot-check and continuous monitoring.
  • Smartphone-Style Touchscreen: Features a fast, capacitive touchscreen interface.
  • Point-of-Care (POC) Connectivity: Sends patient vital signs directly to the EMR at the bedside.
  • Centralized Patient Views: Connects with the Mindray BeneVision Distributed Monitoring System (DMS).
  • Wireless Mobility: Integrates with your facility’s shared wireless infrastructure.
  • Configurable Workflows: Offers flexible settings and clinical decision tools tailored to fit various departmental scenarios.

Mindray VS 9 Specifications

Dimensions

  • Height: ≤10.83 in (≤27.5 cm)
  • Width: 7.28 in (18.5 cm)
  • Depth: 5.31 in (13.5 cm)
  • Weight: 7.496 lb (≤3.4 kg)

Power

AC Power Supply

  • Line Voltage: 100–240 VAC (±10%)
  • Current: 0.9–0.5 A
  • Frequency: 50/60 Hz (±3 Hz)
  • Fuse: T2AL-250V

Battery

  • Type: Rechargeable Lithium-Ion
  • Voltage: 10.8 VDC
  • Capacity: 5,600 mAh
  • Battery Runtime:
    • At least 8 hours — standard configuration with SpO₂ and NIBP
    • At least 5.3 hours — SpO₂, NIBP, SmarTemp, Wi-Fi, and barcode scanner
    • At least 4 hours — SpO₂, NIBP, CO₂, Wi-Fi, and recorder
  • Charge Time:
    • Monitor off/standby: ≤4 hours to 100%
    • Monitor powered on: ≤12.5 hours to 100%
  • Shutdown Delay: At least 20 minutes after the first low-battery alarm

Display

  • Screen Type: Color TFT LCD
  • Screen Size: 8 inches diagonal
  • Resolution: 1024 × 768 pixels

Recorder

  • Recording Method: Thermal dot array
  • Paper Speed: 25 mm/s

Monitor Interface

  • AC Power Input: 1 connector
  • Wired Network: 1 × RJ45 connector
  • USB: 2 × standard USB 2.0 Type-A connectors
  • Equipotential Grounding Terminal: 1
  • Multi-Functions Connector: 1
  • External Battery Connector: 1
  • Nurse Call Signal:
    • High level: 3.5–5 V ±5%
    • Low level: <0.5 V
    • Rising/falling time: ≤1 ms
  • Alarm Output: Available through the network connector

Wi-Fi Specifications

  • Standards: IEEE 802.11a/b/g/n/ac
  • Modulation Mode: BPSK, QPSK, 16QAM, 64QAM, 256QAM
  • Operating Frequency: 2412–2472 MHz; 5180–5320 MHz; 5500–5700 MHz; 5745–5825 MHz
  • Wireless Data Rate:
    • IEEE 802.11a: 6–54 Mbps
    • IEEE 802.11b: 1–11 Mbps
    • IEEE 802.11g: 6–54 Mbps
    • IEEE 802.11n: MCS0–MCS7
    • IEEE 802.11ac: MCS0–MCS8
  • Output Power: <20 dBm (CE requirements); <30 dBm (FCC requirements)
  • Working Mode: Infrastructure
  • Data Security: WPA/WPA2-PSK, WPA/WPA2-Enterprise, WPA/WPA2 CCKM
  • Encryption: TKIP and AES

Bluetooth Specifications

  • Protocol: Bluetooth 5
  • Modulation Mode: GFSK
  • Operating Frequency: 2402–2480 MHz
  • Wireless Data Rate: 2 Mbps, 1 Mbps, 125 kbps
  • Output Power: ≤8 dBm ±4 dB
  • Data Security: AES128

SpO₂ Specifications

Mindray SpO₂ Module

  • Measurement Range: 0–100%
  • PI Measurement Range: 0.05–20%
  • SpO₂ Resolution: 1%
  • PI Resolution:
    • PI <10.0: 0.01
    • PI ≥10.0: 0.1
  • Accuracy:
    • 70–100%: ±2% ABS (adult/pediatric)
    • 70–100%: ±3% ABS (neonate)
    • 0–69%: Not specified
  • Refreshing Rate: ≤1 second
  • Response Time: <30 seconds under specified normal-perfusion conditions
  • Standard: ISO 80601-2-61

Masimo SpO₂ Module

  • Measurement Range: 1–100%
  • PI Measurement Range: 0.02–20%
  • SpO₂ Resolution: 1%
  • PI Resolution:
    • PI <10.0: 0.01
    • PI ≥10.0: 0.1
  • Accuracy:
    • 70–100%: ±2% ABS without motion, adult/pediatric
    • 70–100%: ±3% ABS without motion, neonate
    • 70–100%: ±3% ABS with motion
    • 1–69%: Not specified
  • Refreshing Rate: ≤1 second
  • Response Time: ≤20 seconds under specified normal-perfusion conditions
  • SpO₂ Averaging Time: 2–4 s, 4–6 s, 8 s, 10 s, 12 s, 14 s, or 16 s
  • Low Perfusion SpO₂ Accuracy: ±2%
  • Standard: ISO 80601-2-61

Nellcor SpO₂ Module

  • Measurement Range: 0–100%
  • Resolution: 1%
  • Accuracy:
    • 70–100%: ±2% ABS (adult/pediatric)
    • 70–100%: ±3% ABS (neonate)
    • 0–69%: Not specified
  • Refreshing Rate: ≤1 second
  • Response Time: ≤30 seconds under specified normal-perfusion conditions
  • Low Perfusion Accuracy: ±2%
  • Standard: ISO 80601-2-61

PR (Pulse Rate)

Mindray SpO₂ Module

  • Measurement Range: 20–300 bpm
  • Resolution: 1 bpm
  • Accuracy: ±3 bpm
  • Response Time: <30 seconds
  • Refreshing Rate: ≤1 second

Masimo SpO₂ Module

  • Measurement Range: 25–240 bpm
  • Resolution: 1 bpm
  • Accuracy: ±3 bpm without motion; ±5 bpm with motion
  • Low Perfusion Accuracy: ±3 bpm
  • Response Time: ≤20 seconds
  • Refreshing Rate: ≤1 second

Nellcor SpO₂ Module

  • Measurement Range: 20–300 bpm
  • Resolution: 1 bpm
  • Accuracy: ±3 bpm from 20–250 bpm; 251–300 bpm not specified
  • Response Time: ≤30 seconds
  • Refreshing Rate: ≤1 second

PR from NIBP Module

  • Measurement Range: 30–300 bpm
  • Resolution: 1 bpm
  • Accuracy: ±3 bpm or ±3%, whichever is greater

NIBP (Non-Invasive Blood Pressure)

  • Standards: IEC 80601-2-30; ISO 81060-2
  • Technique: Oscillometry
  • Operating Modes: Manual, Auto, STAT, Sequence, and BP Averaging
  • Auto Measurement Intervals: 1 min, 2 min, 2.5 min, 3 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 hr, 1.5 hr, 2 hr, 3 hr, 4 hr, 8 hr
  • STAT Cycle Time: 5 minutes
  • Typical Measurement Time: ≤15 seconds for adult and pediatric patients under specified test conditions
  • Maximum Measurement Time:
    • Adult/Pediatric: 180 seconds
    • Neonate: 90 seconds
  • Heart Rate Range: 30–300 bpm
  • Systolic Measurement Range:
    • Adult: 25–290 mmHg
    • Pediatric: 25–240 mmHg
    • Neonate: 25–140 mmHg
  • Diastolic Measurement Range:
    • Adult: 10–250 mmHg
    • Pediatric: 10–200 mmHg
    • Neonate: 10–115 mmHg
  • Mean Measurement Range:
    • Adult: 15–260 mmHg
    • Pediatric: 15–215 mmHg
    • Neonate: 15–125 mmHg
  • Accuracy: Maximum mean error ±5 mmHg; maximum standard deviation 8 mmHg
  • Static Pressure Measurement Range: 0–300 mmHg
  • Static Pressure Accuracy: ±3 mmHg
  • Resolution: 1 mmHg
  • Software Overpressure Protection:
    • Adult: 297 ±3 mmHg
    • Pediatric: 297 ±3 mmHg
    • Neonate: 147 ±3 mmHg
  • Hardware Overpressure Protection:
    • Adult: ≤330 mmHg
    • Pediatric: ≤330 mmHg
    • Neonate: ≤165 mmHg

Temperature Specifications

SmarTemp Temperature Module

  • Standard: ISO 80601-2-56
  • Technique: Thermal resistance using a thermistor
  • Operating Modes: Adjusted/predictive mode and direct/monitor mode
  • Measurement Range:
    • Monitor Mode: 25–44 °C (77–111.2 °F)
    • Predictive Mode: 34–43 °C (93.2–109.4 °F)
  • Monitor Mode Accuracy:
    • 25–32 °C: ±0.2 °C
    • 32–44 °C: ±0.1 °C
    • Resolution: 0.1 °C
  • Minimum Measurement Time:
    • Monitor Mode: <60 seconds
    • Predictive Mode: <20 seconds
    • Typical predictive test: <12 seconds

Genius 3 Tethered Tympanic Thermometer

  • Operating Mode: Adjusted mode
  • Measurement Range: 33.0–42.0 °C (91.4–107.6 °F)
  • Accuracy: ±0.3 °C

Exergen TemporalScanner Thermometer

  • Measurement Range: 16.0–43.0 °C
  • Accuracy: ±0.2 °C
  • Resolution: 0.1 °C
  • Battery: 9 V alkaline
  • Battery Runtime: Approximately 1 hour continuous use or 15,000 readings

HeTaiDa Infrared Thermometer

  • Measurement Range: 34.0–42.9 °C
  • Accuracy:
    • 34.0–34.9 °C: ±0.3 °C
    • 35.0–42.0 °C: ±0.2 °C
    • 42.1–42.9 °C: ±0.3 °C

CO₂ Specifications

  • Standard: ISO 80601-2-55
  • Technique: Infrared absorption
  • Apnea Delay: 10, 15, 20, 25, 30, 35, or 40 seconds
  • Measurement Range: 0–150 mmHg
  • Accuracy — Full Accuracy Mode:
    • 0–40 mmHg: ±2 mmHg
    • 41–76 mmHg: ±5% of reading
    • 77–99 mmHg: ±10% of reading
    • 100–150 mmHg: ±(3 mmHg + 8% of reading)
    • 150 mmHg: Unspecified
  • ISO Accuracy Mode: Add ±2 mmHg to full accuracy mode
  • Resolution: 1 mmHg
  • Sample Flow Rate: 50 mL/min with Oridion sampling line
  • Sample Flow Rate Tolerance: ±15% or ±15 mL/min, whichever is greater
  • Start-Up Time: 20 seconds typical; 90 seconds maximum
  • Response Time: ≤5 seconds with standard sampling line; ≤6.5 seconds with extended sampling line
  • Rise Time: ≤250 ms with standard sampling line; ≤280 ms with extended sampling line

RR (Respiratory Rate)

RR from Mindray CO₂ Module

  • Measurement Range: 0–150 rpm
  • Precision:
    • <60 rpm: ±1 rpm
    • 60–150 rpm: ±2 rpm
  • Resolution: 1 rpm

RR from Mindray SpO₂ Module

  • Measurement Range: 4–70 rpm
  • Precision: Arms ≤3 rpm; mean difference [-1, 1] rpm
  • Resolution: 1 rpm
  • Time for First Measurement: ≤30 seconds
  • Refreshing Rate: ≤1 second

Refurbished Mindray VS 9

Soma Tech Intl offers the Mindray VS 9 Vital Signs Monitor up to 50% below OEM prices, with the same service and warranty as new equipment. This unit goes through both technical and cosmetic refurbishment so it performs and looks like new. During the refurbishment of the VS 9, our in-house biomedical engineers, who are trained and certified to work on Vital Signs Monitors, carefully inspect and test the unit and replace components as needed so every aspect of the unit meets the original manufacturer’s engineering specifications. Once it’s fully operational, the VS 9 moves into a detailed cosmetic restoration process: thorough cleaning, correction of minor scratches and dents, surface refinishing where needed, and decal replacement if required. Once that is complete the unit not only looks like new, but also functions like new.

Soma Tech Intl is ISO 13485:2016 certified, so strict quality control standards apply to every piece of capital medical equipment we sell. Before the Mindray VS 9 is labeled patient-ready and prepared for shipment, it goes through a final quality assurance inspection to confirm proper operation and performance.

Soma Tech Intl’s procurement team is also always looking to purchase Mindray VS 9 Vital Signs Monitors and other used Mindray equipment. If your facility has a VS 9 or similar model to sell, get in touch and our purchasing department will walk you through the process from start to finish. Selling directly to Soma cuts out the middleman, so your facility gets the best possible value for its used or pre-owned equipment. We’re 100% HIPAA compliant as well, meaning your equipment arrives at our facility in the same condition it left yours. Soma also offers trade-in credit, so if you have a VS 9 or any other used medical equipment to sell, just send us a message.
