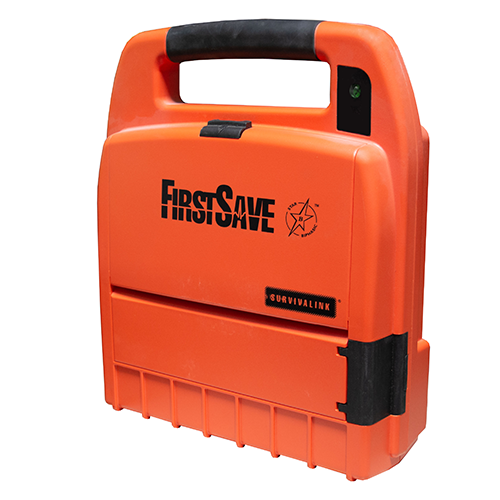

Cardiac Science Survivalink

Quotes in less than 24 hours Download Specifications

Cardiac Science Survivalink Features

The Cardiac Science Survivalink is an automated external defibrillator that is battery-operated. Once the electrodes are attached to the patient the Survivalink will analyze the patient’s ECG reading to decide if a shock is needed. The defibrillator system offers three different types of ECG reading; Ventricular fibrillation, Ventricular tachycardia, and Supaventricular tachycardia to decide how much is needed to shock the patient. The Cardiac Sciences AED guides the user through the process of rescue and necessitation through the combination of voice prompts, alerts, and visible indicators. The Survivalink can produce up to 360 joules of energy in a shock if needed.

  • One button for all operations.
  • Guides you through the rescue with voice prompts audible alerts, and visual indicators.
  • Shocks are delivered in a pre-programmed sequence of escalating monophasic, or biphasic energies.

Cardiac Science Survivalink Specifications


  • Height: 3.3” (8 cm)
  • Width: 10.6” (27 cm)
  • Depth: 12.4” (31 cm)
  • Weight: 7.4 to 7.8 lbs (3.3 to 3.5 kg)

Interpretation of ECG

The Survivalink AED Rhythm Recognition Detection System is designed to recommend a defibrillation shock when placed on a patient who is unconscious, not breathing, and has no pulse when it detects:

  • Ventricular fibrillation: when the peak-to-peak amplitude is greater than the asystole threshold (0.15 mV nominal) and cardiac rhythm rate of at least 180 bpm
  • Ventricular tachycardia: cardiac rhythm rate is at least 180 bpm
  • Supraventricular tachycardia: cardiac rhythm rate is at least 180 bpm


  • Type: Extended Life Lithium, disposable, non-rechargeable
  • Operating Life: 5-years
  • Shelf Life: 5-years
  • Charge Time: 11 seconds to charge a fully discharged Survivalink AED to its maximum energy with a new battery.

Energy Levels

  • The Survivalink AED utilizes variable energy. The precise energy delivered will vary with the patient’s impedance. Energy will be delivered at two different levels referred to as low current and high current. This allows for escalating energies of subsequent shocks.

Refurbished Cardiac Science Survivalink AED

Soma Tech Intl offers Cardiac Science Survivalink AEDs up to 50% below OEM prices with the same service and warranty as new. The Cardiac Science Survivalink is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the Cardiac Science Survivalink, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on defibrillators. If necessary, parts are replaced to make sure that all aspects of the Cardiac Science Survivalink are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Cardiac Science Survivalink is working like new it undergoes a special cosmetic restoration process. The Cardiac Science Survivalink is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Cardiac Science Survivalink is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Cardiac Science Survivalink AED contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Cardiac Science Survivalink AED. If you or your facility is looking to sell your Cardiac Science Survivalink, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Cardiac Science Survivalink to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our AEDs?

Soma Tech Intl offers a wide range of AEDs. If you have any questions about our automatic external defibrillators or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your AEDs? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
