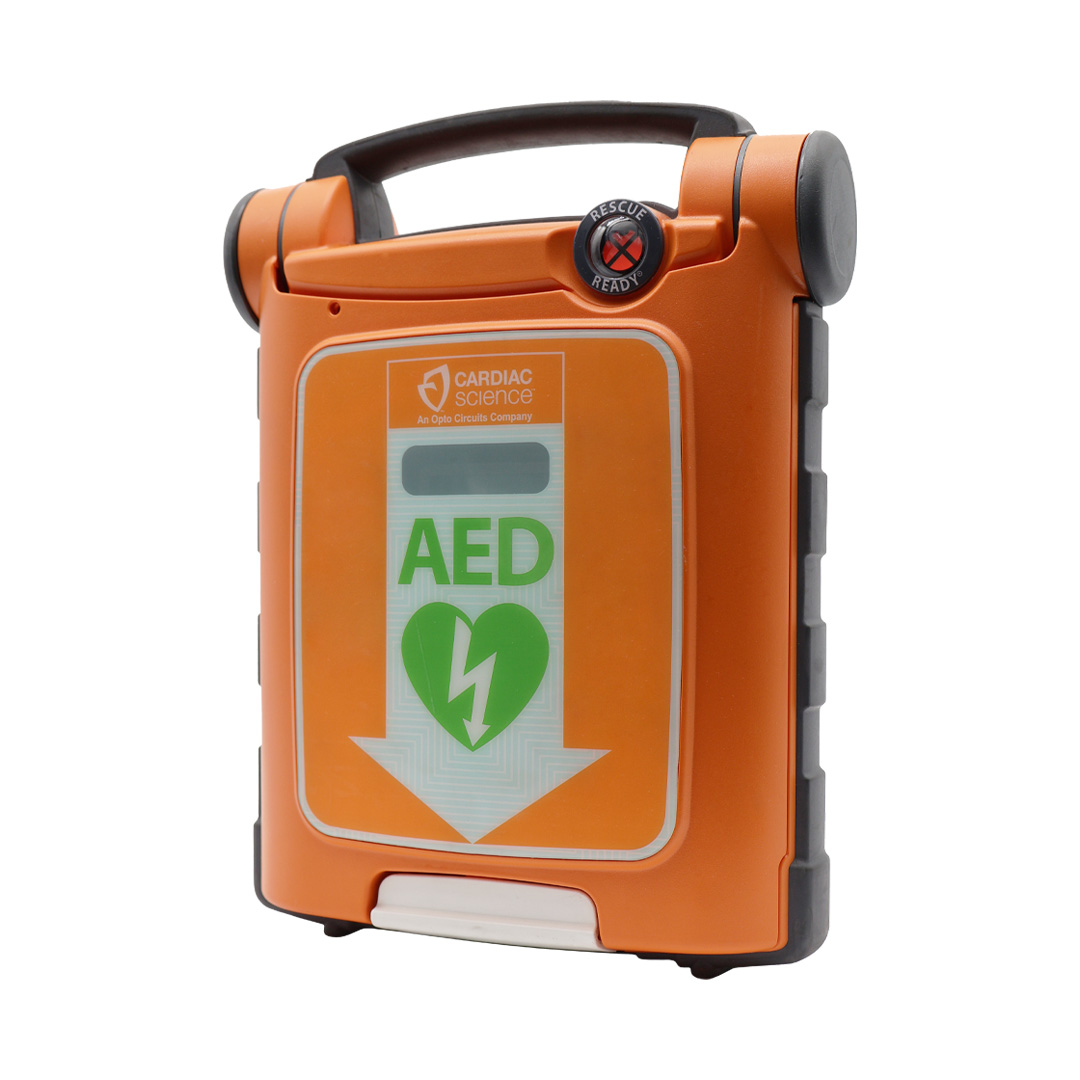

Cardiac Science Powerheart G5
The Cardiac Science Powerheart G5 is a highly advanced automated external defibrillator (AED) designed for rapid response to sudden cardiac arrest (SCA) emergencies. With its intuitive features and robust design, it supports both lay rescuers and professional responders in delivering effective life-saving interventions.
- RescueCoach™ Voice and Text Prompts: Provides clear, real-time voice and text prompts to guide users through each step of the defibrillation process
- Variable Escalating Energy: Delivers customized energy shocks, escalating up to 352 joules if needed, based on patient requirements and response
- CPR Assistance: Includes a metronome and CPR feedback to guide users on the proper compression rate and depth
- Automatic Shock Delivery: Analyzes the patient’s heart rhythm and automatically delivers a shock if a life-threatening arrhythmia is detected
- Daily, Weekly, and Monthly Self-Tests: Performs comprehensive self-tests on key components including the battery, hardware, software, and pads
- IntelliSense® Battery Technology: Equipped with a long-lasting battery that provides consistent power and includes a status indicator for battery life
- Robust and Durable Design: Built to withstand demanding environments with a high ingress protection (IP) rating
Cardiac Science Powerheart G5 Specifications
Dimensions
- Height: 3.4 in (9 cm)
- Width: 9.0 in (23 cm)
- Depth: 11.8 in (30 cm)
- Weight: 5.7 lb (2.6 kg), Including battery and pads
Physical / Environmental
- Dust/water resistance: IP55 (IEC 60529)
- Operating temperature: 32 F to +122 F (0 °C to 50 °C)
- Altitude: -1,253 ft (-382 m) to 15,073 ft (4,594 m)
- Drop: MIL-STD-810G, 516.6 (Procedure IV) for 1.22 m drop
- Shocks: MIL-STD-810G, 516.6 (Procedure 1)
- Vibration (sine and random): MIL-STD-810G, 514.6 (Procedure 1, Cat 24)
- EMI (radiated/immunity): IEC 60601-2-4
Pads
- Intellisense CPR Feedback: Disposable, non-polarized pads with CPR feedback sensor
- Standard Defibrillation Pads: Disposable, non-polarized (pads can be placed in either position)
- Shelf life: 2 years
Event Documentation
- Internal memory: 90 minutes of rescue data, multiple rescue functionality
- ECG, CPR compression, and rescue review: Viewable via AED Manager reporting and configuration software
- Communications: USB cable or USB memory stick
Battery
- Guarantee: 4-year, full operational replacement
- Capacity: 420 shocks (typical) at 300VE
Defibrillator
- Operations: Fully automatic and semi-automatic versions
- Waveform: STAR® biphasic truncated exponential
- Therapy range (J): 95J to 354J (adult)
- Fast shock feature: Able to deliver a shock after the end of a CPR cycle in 10 seconds or less
- Voice prompts: RescueCoach™ prompts provide user-paced instruction. Optional Intellisense™ CPR Feedback provides corrective voice prompts for both rate and depth.
- Text screen: Displays rescue prompts and critical rescue information. Optional Intellisense CPR Feedback provides corrective text prompts for both rate and depth.
- Audible alerts: Voice prompt, system alert
- Synchronized shock: Built-in automatic synchronization feature
- Pacemaker pulse detection: Yes
- Pediatric capability: Therapy range (VE) 22J to 82J, pediatric prompts
- Dual language: Latin American Spanish or French Canadian (optional)*
- Customizable: Voice prompt, CPR protocol, optional CPR Feedback device settings, and shock protocols via AED Manager
- CPR: Metronome for CPR compression rate
- Visible indicators: Rescue Ready® indicator, battery, service, and pad status
Refurbished Cardiac Science Powerheart G5 AED
Soma Tech Intl offers the Cardiac Science Powerheart G5 AEDs up to 50% below OEM prices with the same service and warranty as new. The Cardiac Science AEDs are not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Cardiac Science AEDs, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on automated external defibrillators. If necessary, parts are replaced to make sure that all aspects of the Powerheart G5 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the G5 is working like new it undergoes a special cosmetic restoration process. The Cardiac Science Powerheart G5 AED is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Powerheart G5 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Cardiac Science Powerheart G5 AEDs contact soma at Soma@SomaTechnology.com or call us at 1-800-GET-SOMA.
