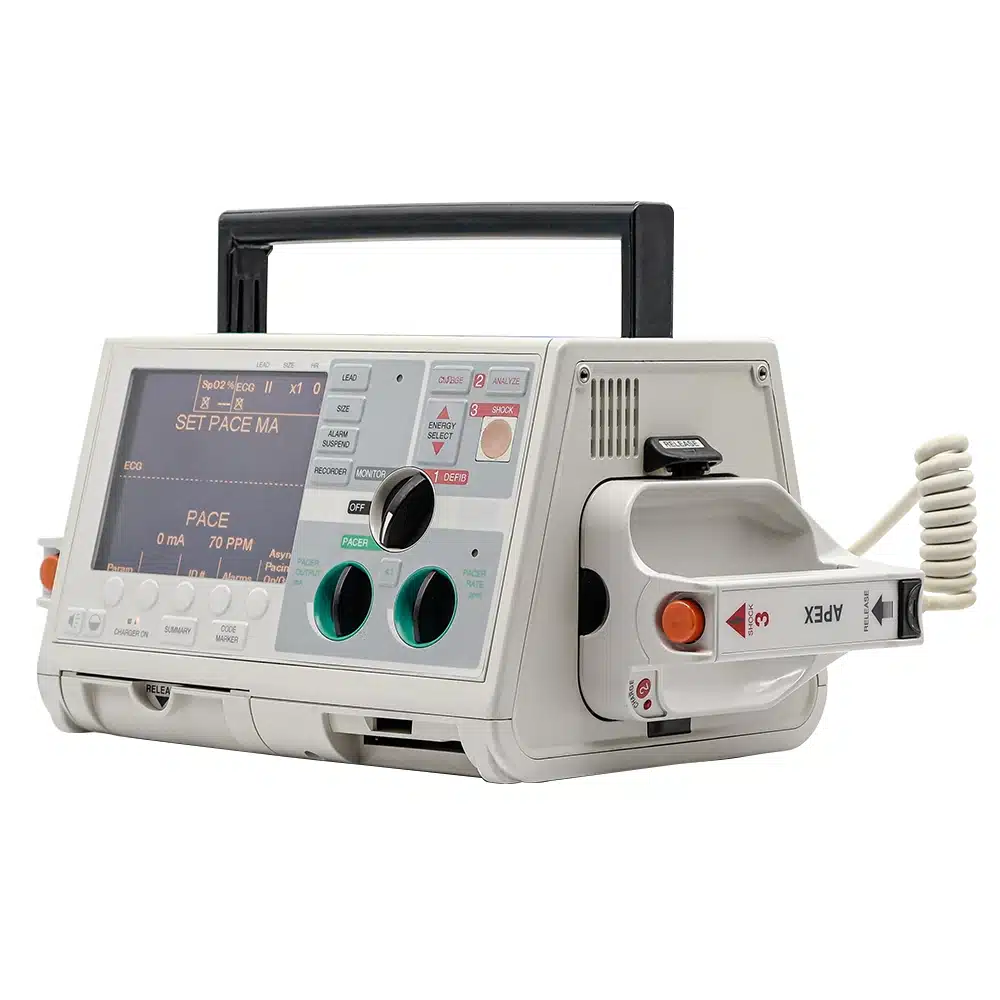

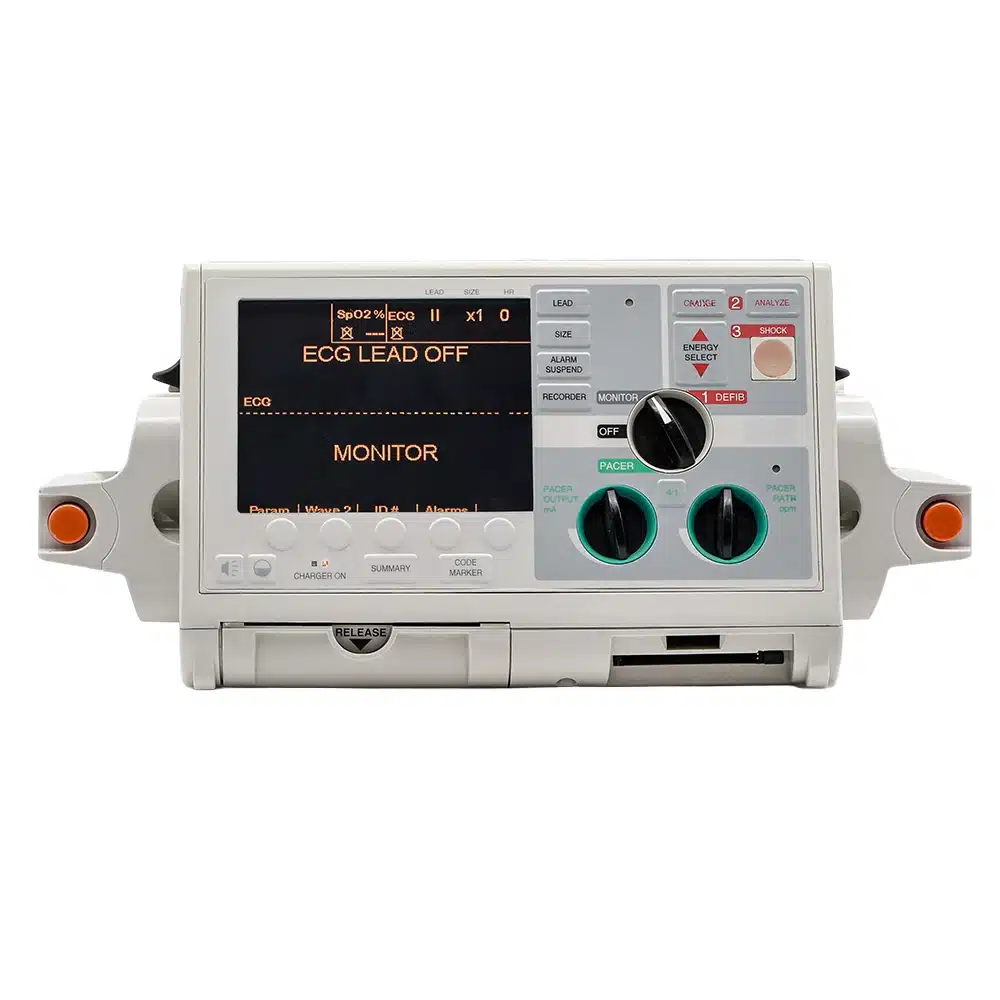

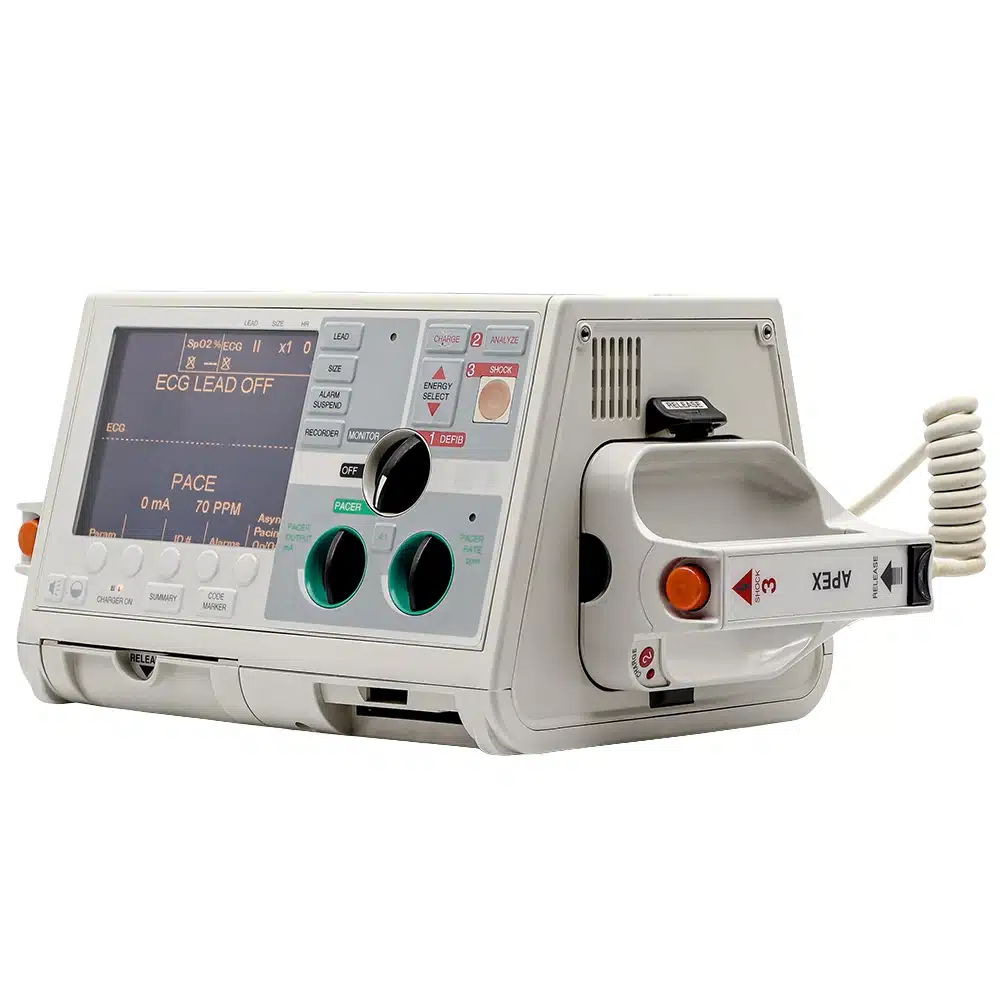

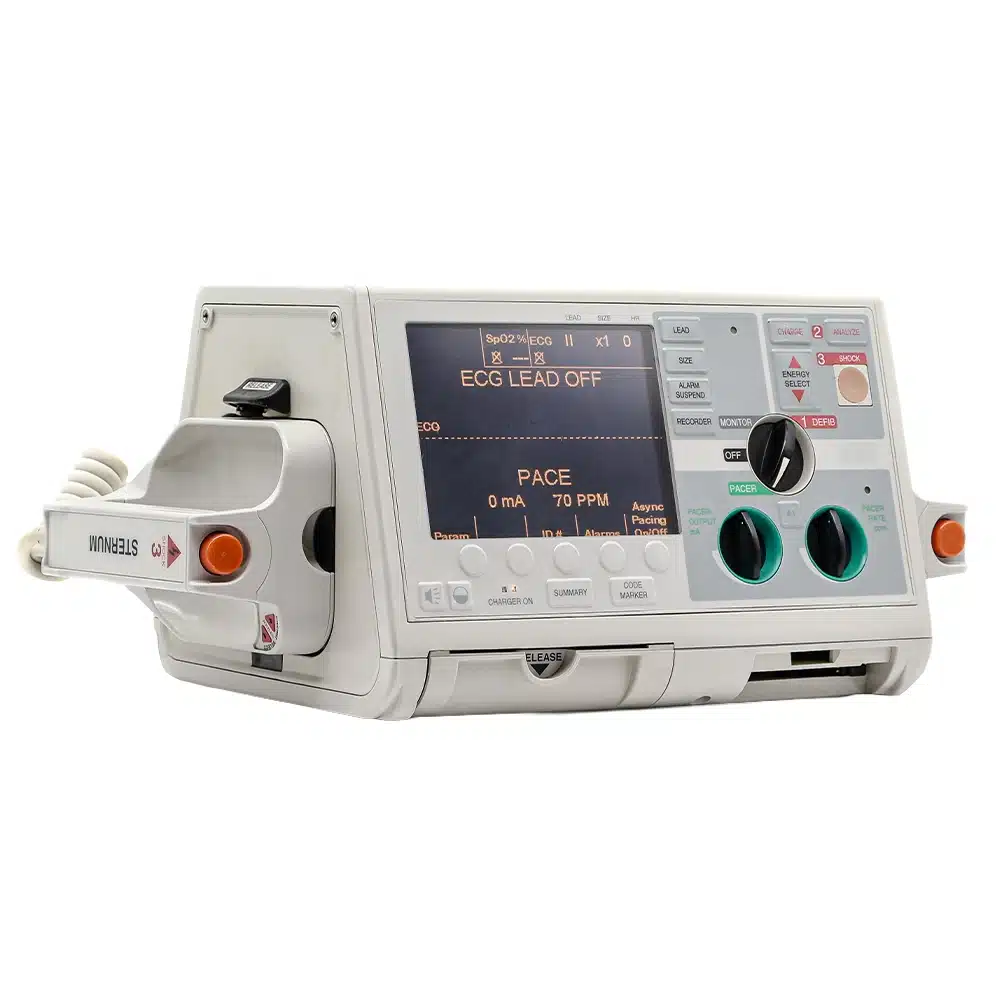

Zoll M Series

M Series Specifications

Dimensions

• Height: 6.8” (17.3 cm)
• Width: 10.3” (26.2 cm)
• Depth: 8.2” (20.8 cm)
• Weight: 13.5 lb (6.14 kg)

Power

• AC Power: 100-120 ~ 50/60 Hz, 220-240 ~ 50 Hz, 220 VA
• DC Input (Optional): 10-29 V. 130 W

Battery (PD 4410)

• Type: Rechargeable, Sealed Lead Acid
• Weight: 2.2 lbs (1 kg)
• Voltage: 2V/cell; 5 cells wired in series
• Recharge Time: 4 hours or less with an integral charger
• Operating Time: For a new, fully charged battery pack at 20 °C: 35 defibrillator discharges at maximum energy (360 J), or 2.75 hours of continuous ECG monitoring, or 2.25 hours of continuous ECG monitoring/pacing at 60 mA, 80 beats/min.

Battery (XL Battery)

• Type: Rechargeable, Sealed Lead Acid
• Weight: 3.7 lbs (1.7 kg)
• Voltage: 2V/cell; 5 cells wired in series
• Recharge Time: 7.2 hours or less with an integral charger
• Operating Time: For a new, fully charged battery pack at 20 °C: 60 defibrillator discharges at maximum energy (360 J), or 4 hours of continuous ECG monitoring, or 3.25 hours of continuous ECG monitoring/pacing at 60 mA, 80 beats/min.

Pacemaker

• Type: VVI demand; asynchronous (fixed rate) when used without ECG leads or in ASYNC pacing mode.
• Pulse Type: Rectilinear, constant current.
• Pulse Shape and Duration: Rectilinear, 40 milliseconds ±2 milliseconds
• Pulse Amplitude: Variable 0 mA to 140 mA ±5% or 5 mA, whichever is greater. Digitally displayed on the monitor (increments or decrements by a value of 2 mA).
• Pacing Rate: Variable from 30 ppm to 180 ppm ±1.5% (increments or decrements by a value of 2 ppm).
• Output protection: Fully defibrillator-protected and isolated
• Multi-Function Electrode (MFE) Pads: Specifically designed adult anterior-posterior pre-gelled ZOLL MFE Pads, and Multi-Function Stat-pads packaged in pairs.

Defibrillator

• Waveform: Dampened sinusoid.
• Patient Impedance Range: Minimum: 15 ohms; Maximum: 250 ohms; Internal paddle range: 7 – 250 ohms
• Synchronized Mode: Synchronizes the defibrillator pulse to the patient’s R-wave. 60ms maximum time delay between sync pulse and delivery of energy.
• Paddles: Standard anterior/posterior adult and pediatric. Adult paddles slide off to expose pediatric paddles.
• Defibrillation Advisory: Evaluate electrode connections and the patient’s ECG to determine whether defibrillation is required.
• Multi-Function Electrode Impedance Measurement Accuracy: 0 ohms – 250 ohms ±10% or 5 ohms, whichever is greater.

ECG Monitoring

• Patient Connection: 3, 5, or 12-lead ECG cables, paddles, or MFE Pads.
• ECG Size: 0.5, 1, 1.5, 2, 3 cm/mV – display on monitor
• Heart Rate Range: 30 – 300 bpm
• Heart Rate Accuracy: ±5%
• Input Protection: Fully defibrillator protected. A special circuit prevents the pacer pulse from distorting the ECG.
• Vital Signs Trends: Heart rate, SpO2, end-tidal CO2, respiration rate, and noninvasive systolic, diastolic, and mean blood pressure values.

CPR Monitoring

• Compression Depth: 0.75 to 3 inches ±0.25 inches (1.9 to 7.6 cm ±0.6 cm)
• Compression Rate: 50 to 150 compressions per minute

Display

• Screen Type: High resolution, electroluminescent, or liquid crystal display (LCD)
• Screen Size: 5.66 inches (14.4 cm) diagonally (EL Display)
• Sweep Speed: 25 mm/sec, 50 mm/sec (configurable for 12-lead ECG recording)
• Viewing Time: 4 seconds

Recorder

• Paper: 80 mm thermal (grid width) 90 mm (paper width)
• Speed: 25 mm/sec (configurable for 12-lead ECG printing at 50 mm/sec)
• Delay: 6 seconds
• Printing Method: High-resolution thermal-array printhead.
• Print-out Modes: Manual or automatic — user-configurable.
• On/Off Control: Front panel and paddle.
• Automatic Function: 15-second recording initiated by alarm activation or defibrillator discharge

PCMCIA Card

• Capacity: Standard series II flash card – 1 megabyte to 16 megabytes
• Audio Recording: Digital compressed audio data
