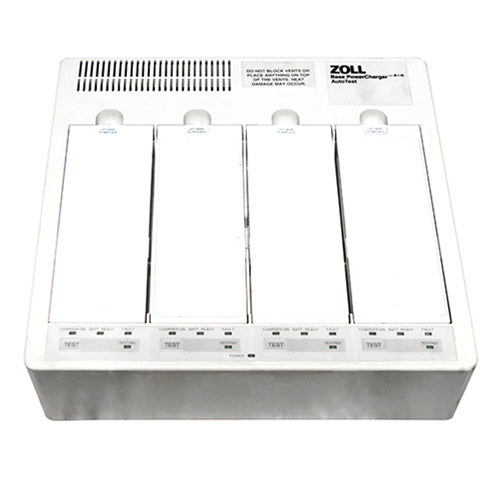

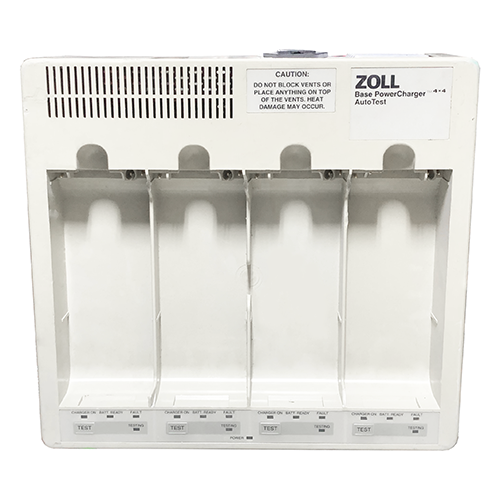

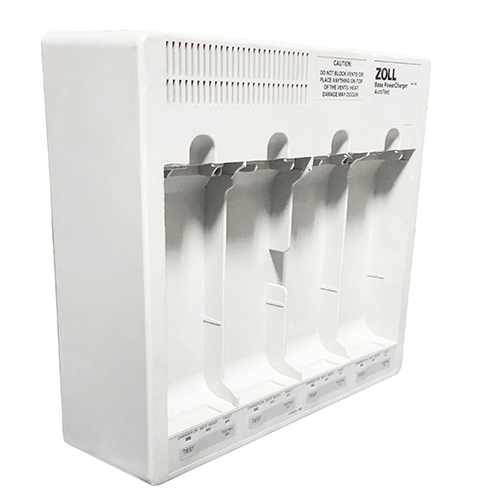

Zoll Base Powercharger 4×4 Battery Charger

Quotes in less than 24 hours Download Specifications

Zoll Base Powercharger 4×4 Features

The Zoll Base Powercharger 4×4 is a Zoll battery charging and testing system. The Zoll Powercharger 4×4 provides up to four battery charging and testing compartments, allowing for you to test up to 4 at once. The Zoll battery charger comes in either an AutoTest mode or a QuickCharge mode. The Autotest mode will automatically test the battery each time a battery is charged and will indicate when a battery is fully charged. The QuickCharge takes only 4 hours to fully charge but does not provide any information on the battery capacity. The Zoll Base Powercharger 4×4 can test or charge batteries for Zoll modules; M Series, E Series, PD 1400, PD 1600, PD 2000, smart, smart Ready, and XL battery packs.

  • Automatically tests and recharges a battery rapidly in eight hours or less
  • Uses visual and audible indicators to alert users to batteries with insufficient capacity, incomplete charge, and detected faults to ensure safe and reliable
  • Is equipped with automated testing to save technician time and cost by eliminating manual procedures and preventing battery problems before they occur
  • Includes Zoll 4 Bay Station Charger, A/C Power Cord

Zoll Base Powercharger 4×4 Specifications


  • Height: 4.2 in
  • Width: 13.2 in
  • length: 12.2 in
  • Weight: 4.1kg ( 9 lb) without batteries


  • Power Requirements: 100-120 VAC, 50/60 Hz input. 220-240 VAC, 50/60 Hz input.
  • Power Consumption: 100 watts Maximum

Recharge Time

    • QuickChargetotal recharge of a fully depleted battery
    • 4 hours or less for the PD 4410/Smart/ Smart Ready Battery.
    • 8 hours or less for all XL Batteries.

Auto Test AutoTest and total recharge of fully depleted Battery

  • 8 hours or less for the PD 4410/Smart/ Smart Ready Battery
  • 15 hours or less for all XL Batteries



  • 5 °C to 40 °C (operating)
  • 15°C to 35°C (optimal battery charging)
  • -40°C to 70°C (storage and transportation)


  • 5% to 95% (relative humidity – non-condensing)

External Fuses

  • 2 Type T, 2A/250V Time Delay fuses located above AC mains input.
