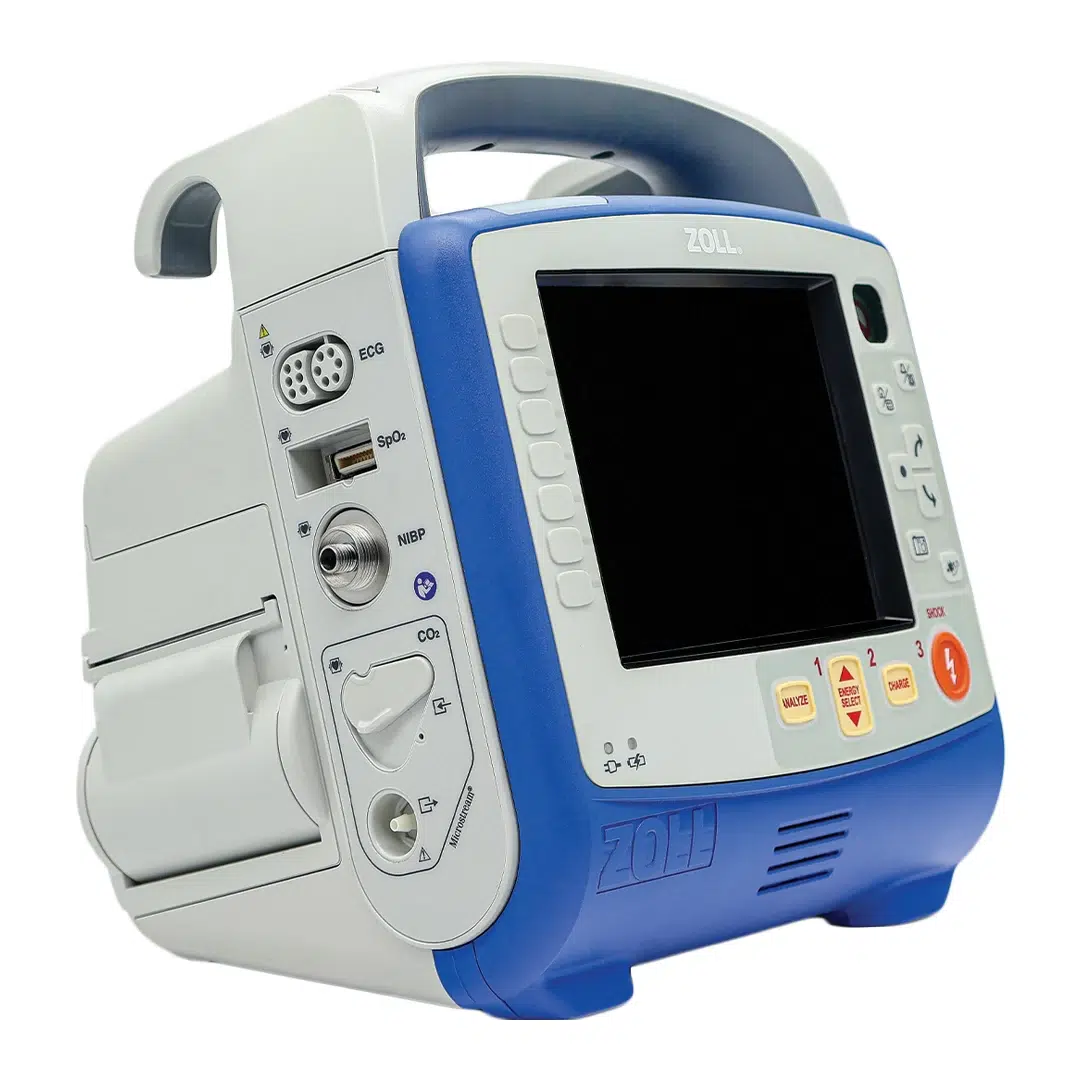

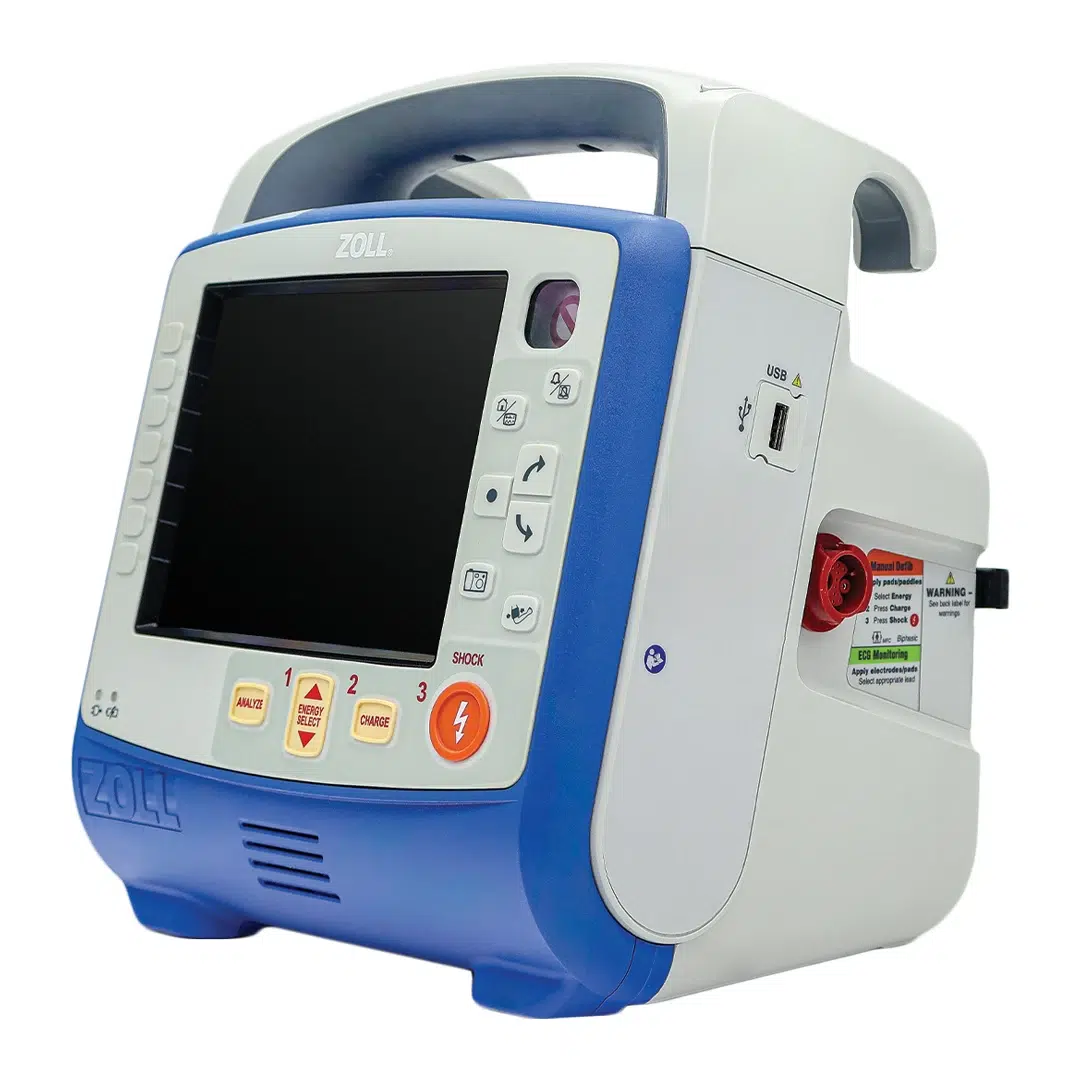

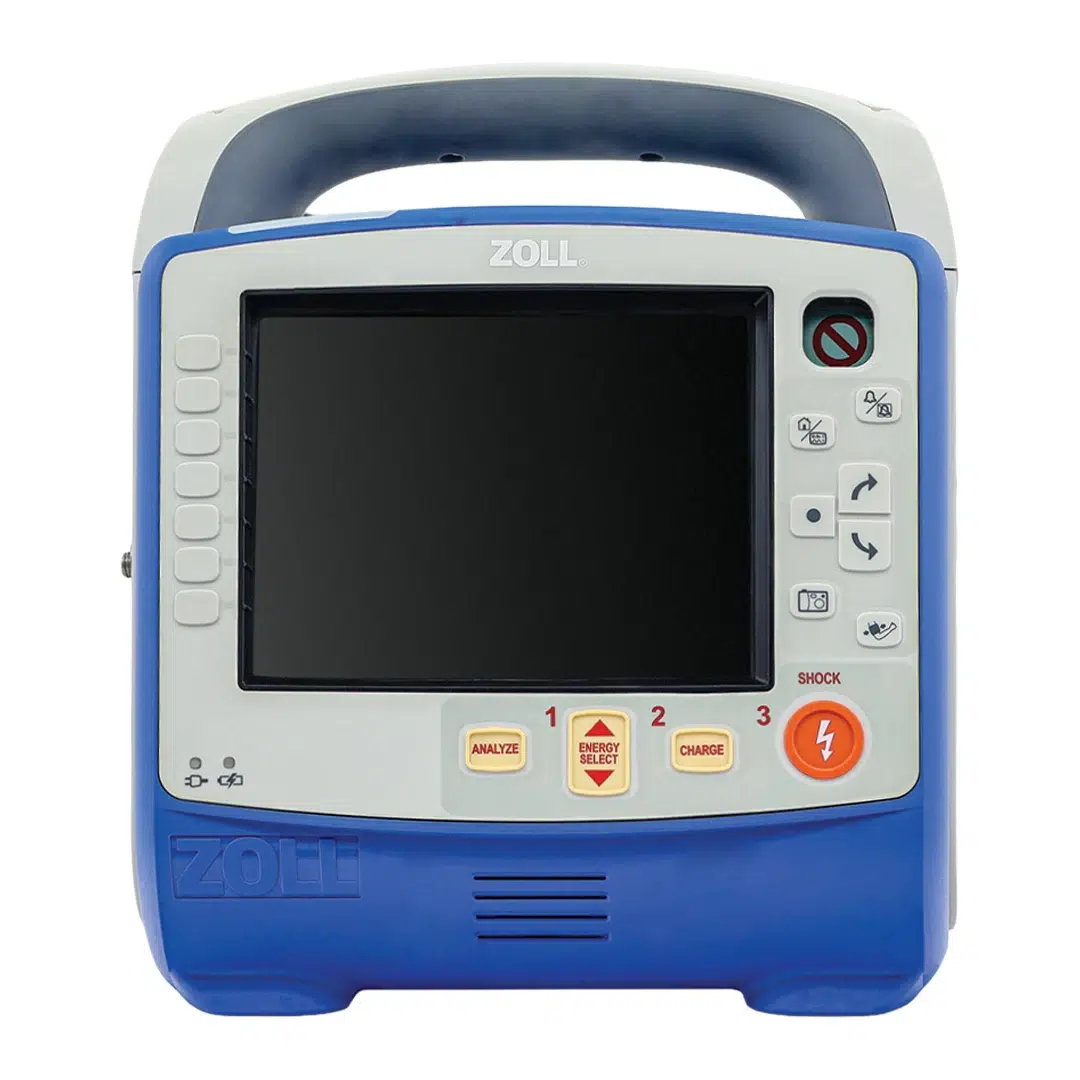

Zoll X Series

Specifications

Dimensions

• Height with Handle: 10.4 in (26.4 cm)
• Width: 8.9 in (22.6 cm)
• Depth: 7.9 in (20.1 cm)
• Weight with Battery and Paper: 11.7 lb (5.3 kg)

Zoll Battery

• Type: Rechargeable Lithium-Ion, 11.1 Vdc, 6.6 Ah, 73 Wh
• Capacity (new, fully charged battery at room temperature):
  • At least 6 hours of continuous monitoring of ECG, SpO2, CO2, three Invasive Pressure channels, and 2 channels of Temperature, with NIBP measurements every 15 minutes and 10 200-joule shocks
  • At least 300 shocks at 200 joules
  • At least 3.5 hours of pacing, with ECG, SpO2, CO2, three Invasive Pressures, Temperature, NIBP every 15 minutes, and pacing at 180 ppm and 140 mA
• Battery Indicators: 5 battery capacity LED indicators, fault indicator, recalibration indicator
• Recharge Rate: 100% in 4 hours via battery charger, when initiated at Low Battery indication.

Monitor / Display

• Size: 6.5 in (16.56 cm) diagonal
• Input: 3-lead, 5-lead, or 12-lead patient cable, paddles, or multifunction electrodes
• Type: Color LCD, 640 x 480 pixels, 800 MCD
• Sweep Speed (user selectable): 25 mm/sec or 50 mm/sec
• Lead Selections: Paddles (Pads), I, II, III, AVR, AVL, AVF, V1-6
• Frequency Response (user selectable):
  • 0.67 – 20 Hz Limited mode
  • 0.67 – 40 Hz Monitor mode
  • 0.25 – 40 Hz Filtered diagnostic mode
  • 0.05 – 150 Hz Diagnostic mode

Defibrillator / AED

• Waveform: Rectilinear Biphasic
• Energy Selections: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 85, 100, 120, 150, 200 joules
• Energy Display: Displays selected and delivered energy
• Charge Time: Less than 7 seconds with a new, fully charged battery
• Charge Controls: Front panel and on apex paddle
• Pads/Paddles: Hands-free pads, with adult paddles that slide off to reveal pediatric electrodes underneath.
• Synchronized Mode: Synchronizes defibrillator pulse to patient’s R wave; “SYNC” message displayed on monitor with markers on both monitor and recorded ECG. Meets Clause 104 of AAMI DF80

Pacer

• Type: External transcutaneous pacing
• Pulse Types: Rectilinear, constant current
• Pulse Width: 40 ms ± 2 ms
• Pacer Rate: 30 to 180 bpm ± 1.5%
• Output Current: 0 to 140 mA ± 5% or 5 mA (whichever is greater)
• Modes: Demand and Fixed
• Includes ECG pacing markers, visible on-screen and on the printed strip, so clinicians can confirm capture during pacing.

CPR Feedback

• See-Thru CPR: Filters out compression artifact so you can see the underlying rhythm during CPR
• Real CPR Help: Real-time compression depth and rate feedback
• CPR Dashboard: Numeric readout of depth and rate, release indicator, and perfusion performance indicator (PPI)

ECG

• Cable Detection: Automatic 3-, 5-, 12-lead ECG
• Input: 3-lead cable, 5-lead cable, 12-lead cable, paddles, therapy cable
• Leads: I, II, III, AVR, AVL, AVF, V1 – V6
• Heart Rate: Range: 30 – 300 bpm; Accuracy: ± 3 bpm or 3%
• ECG Sizes: 0.125, 0.25, 0.5, 1, 2, 4 cm/mV, and auto-ranging

Pulse Oximetry (Masimo)

• SpO2 Saturation Range: 1 – 100%
• Pulse Rate Range: 25 – 240 bpm
• SpCO: 0 – 99% range
• SpMet: 0 – 99% range
• SpHb: 0 – 25 g/dL measurement range
• SpOC: 0 – 35 mL O2/dL of blood
• Perfusion Index (PI): 0.02 – 20%
• Pleth Variability Index (PVI): 0 – 100%

Non-Invasive Blood Pressure (NIBP)

• Technology: Smartcuf and Sure BP
• Measurement Intervals: Automatic 1, 2, 3, 5, 10, 15, 30, 60-minute, plus manual
• Display: Systolic, diastolic, and mean
• Pressure Measurement Range: Systolic 20 – 260 mmHg, Diastolic 10 – 220 mmHg, Mean 13 – 230 mmHg
• Cuff Sizes: Neonate #1 – #5, Infant, Small Child, Small Adult, Adult Long, Large Adult, Thigh

EtCO2 (Microstream)

• CO2 Range: 0 – 150 mmHg
• Respiration Range: 0 – 149 breaths per minute
• Typical Response Time: 2.9 seconds

Respiration (Impedance Pneumography)

• Breath Rate Range: Adult/Pediatric 2 – 150 breaths/minute; Neonate 3 – 150 breaths/minute
• Leads: Lead I (RA – LA), Lead II (RA – LL)

Invasive Pressure

• Channels: Three
• Pressure Range: -30 – 300 mmHg
• Pulse Rate Measurement Range: 25 – 250 bpm

Temperature

• Channels: Two, YSI 400/700 series-compatible
• Range: 0 – 50°C (32 – 122°F)
• Display: T1, T2, and Delta temp

Trends & Memory

• Trend Intervals: 1, 5, 10, 15, 30, 60 minutes
• Trend Duration: 24 hours at 1-minute intervals
• Memory Capacity: 24 hours of trends at 1-minute intervals, 1,000 time-stamped events, and 32 snapshots (monitor, defibrillator, pacer, and treatment)

Printer

• Type: High-resolution thermal array
• Paper Width: 80 mm
• Paper Speed: 25 mm/sec, 50 mm/sec

Connectivity

• Integrated WiFi, Bluetooth, and USB cellular modem
• Direct file transfer to RescueNet CaseReview software
• Acquires, stores, and transmits 12-leads to RescueNet 12-Lead and RescueNet MedGate 12-Lead management systems

AC Auxiliary Operating Power

• Input:
  • 100-240V 50-60 Hz, 2A
  • 100-115V 400 Hz, 2A
• Output: 14.5V 4.15A 80W (peak)

Operating Environment

• Temperature: 0 to 50°C
• Humidity: 15 to 95% RH (non-condensing)
• Vibration:
  • MIL-STD 810G, Method 514.6, 4.4.2, Procedure II
  • EN ISO 9919 (per IEC 60068-2-64)
  • RTCA/DO-160G (multiple helicopter frequencies)
  • EN 1789 for ambulance
• Shock: IEC 60068-2-27, 100g, 6ms half sine
• Drop:
  • EN 1789, 30″ functional drop
  • IEC 60601-1, tested at 2 meters
• Altitude: -170 m to 4572 m (-557 feet to 15,000 feet)

Storage Environment

• Temperature: -30 to 70°C
• Humidity: 15 to 95% RH (non-condensing)
• Atmospheric Pressure: 572 mbar to 1034 mbar
• Safety Classification: Class 1 and internal power per IEC/EN 60601-1
