Zoll Cardiac Science Powerheart G5
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Zoll Powerheart G5 Features
The Zoll Powerheart G5 is an automated external defibrillator (AED) designed to be easy to use, even for people who may have never used one before. It talks the rescuer through each step and waits for them to finish before moving on. Once CPR starts, it listens to the compressions and tells you to push faster, slower, harder, or softer. It comes in fully automatic and semi-automatic versions, and it tests itself on a regular schedule so it’s ready when you need it. The case is rated IP55 for dust and water, so it holds up in workplaces, schools, and public spaces. As a Cardiac Science Powerheart AED, it is a practical choice for facilities preparing for sudden cardiac arrest. AED accessories and supplies, such as replacement electrode pads and batteries, are available from your Soma sales rep.
- Real-Time CPR Feedback: Gives voice and text prompts on compression rate and depth.
- RescueCoach Prompts: User-paced prompts guide the rescuer one step at a time and move on when each step is done.
- Dual Language: One button switches the prompts to a second language without stopping the rescue.
- Automatic Self-Tests: Checks the AED pads, battery, and internal circuitry, with a Rescue Ready indicator on the front.
- Rescue Data Storage: Records up to 90 minutes of data, which you can download over USB.
Zoll Cardiac Science Powerheart G5 Specifications
Dimensions
- Height: 3.4 in (9 cm)
- Width: 9.0 in (23 cm)
- Depth: 11.8 in (30 cm)
- Weight: 5.7 lb (2.6 kg), including battery and pads
Defibrillator
- Operation: Fully automatic and semi-automatic versions available
- Waveform: STAR biphasic truncated exponential
- Adult Energy Range: 95 J to 354 J, escalating with each shock
- Pediatric Energy Range: 22 J to 82 J, with pediatric prompts
- Charge Time: Less than 10 seconds with a new battery
- Fast Shock: Delivers a shock within 10 seconds or less after the end of a CPR cycle
- Pacemaker Pulse Detection: Yes
- Synchronized Shock: Built-in automatic synchronization
Rescue Guidance
- RescueCoach Prompts: Voice and text prompts that move at the rescuer’s pace, step by step
- Intellisense CPR Feedback: Real-time voice and text coaching on compression rate and depth (“Press Faster,” “Press Harder and Fully Release”)
- CPR Metronome: Built-in compression rate guide
- Display: Monochrome backlit LCD, 1.1 in x 2.2 in (2.8 cm x 5.6 cm)
- Languages: English, with a one-button switch to Latin American Spanish or Canadian French (optional), without interrupting the rescue

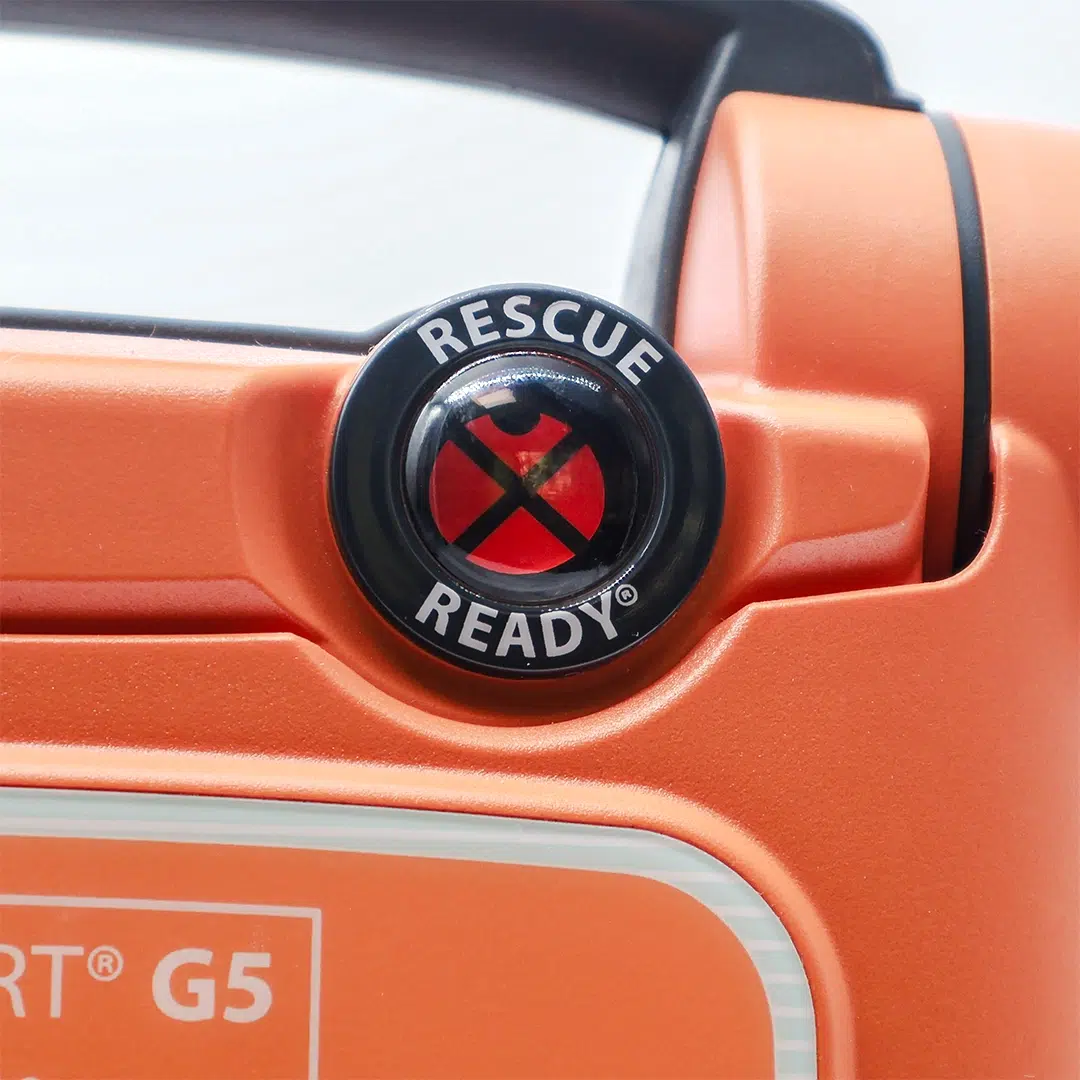

- Status Indicators: Rescue Ready indicator, plus battery, pad, and service status
Battery
- Type: Intellisense lithium, non-rechargeable
- Capacity: 420 shocks (typical)
- Standby Life: 4 years once installed
AED Pads
- Type: Disposable, non-polarized pads that can go in either position on the chest
- Intellisense CPR Feedback Pads: Include a CPR sensor placed at the center of the chest to guide hand placement and measure compressions
- Cable Length: 51.5 in (130 cm)
- Shelf Life: 2 years
Self-Testing
- Rescue Ready: Automatic daily, weekly, and monthly self-tests of the battery, pads, internal circuitry, and buttons
Data Storage
- Internal Memory: Up to 90 minutes of rescue data across multiple events, including ECG, device prompts, and CPR graph
- Data Transfer: USB cable or USB memory stick
- Review and Setup: AED Manager software for viewing rescue data and customizing voice prompts, CPR settings, and shock protocols
Refurbished Zoll AED
Soma Tech Intl offers the Zoll Powerheart G5 AED up to 50% below OEM prices, with the same service and warranty as new equipment. This device goes through both technical and cosmetic refurbishment so it performs and looks like new. During the refurbishment, our in-house biomedical engineers, who are trained and certified to work on AEDs, carefully inspect and test the unit and replace components as needed so every aspect of the device meets the original manufacturer’s engineering specifications. Once it’s fully operational, the unit moves into a detailed cosmetic restoration process: thorough cleaning, correction of minor scratches and dents, surface refinishing where needed, and decal replacement if required. After all of that, it functions and presents like new.
Soma Tech Intl is ISO 13485:2016 certified, so strict quality control standards apply to every piece of capital medical equipment we sell. Before the Zoll Powerheart G5 is labeled patient-ready and prepared for shipment, it goes through a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl’s procurement team is also always looking to purchase Cardiac Science AEDs and other used Zoll equipment. If your facility has a used AED or similar model to sell, get in touch and our purchasing department will walk you through the process from start to finish. Selling directly to Soma cuts out the middleman, so your facility gets the best possible value for its used or pre-owned equipment. We’re 100% HIPAA compliant as well, meaning your equipment arrives at our facility in the same condition it left yours. Soma also offers trade-in credit, so if you have an AED or any other used medical equipment to sell, just send us a message.
