Zoll E Series

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

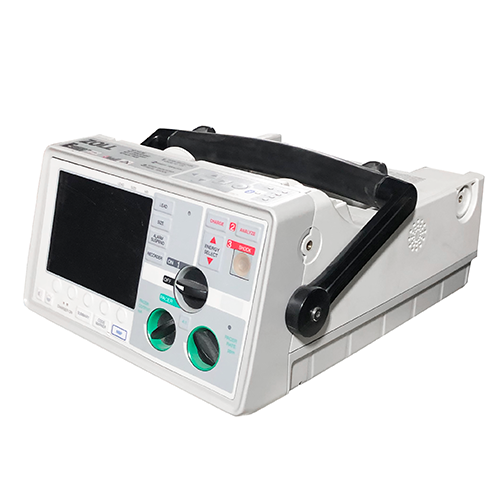

Zoll E Series Defibrillator Features

The Zoll E Series is a defibrillator/ monitor that offers ECG and pacing as well. The small, compact design makes it an easily portable device used for transport or in EMS situations. The Zoll E Series offers Real CPR Help, where it can measure chest compressions, rate, and depth in real time while providing feedback if needed. All data for the defibrillator can easily be recovered and transferred to other devices through the RescueNed Code Software or a PCMCIA card. Additionally, the defibrillator monitor can offer measurements including; SpO2, NIBP, and EtCO2. The previous model of the Zoll Defibrillator is the Zoll M Series

  • Measures chest compressions and rate and depth in real-time.
  • Provides visual and optional audible CPR feedback using CPR-D pads.
  • All CPR data can be recorded and reviewed using RescueNet Code Review software.
  • EasyRead Tri-Mode display, screen for use in the dark or direct sunlight.

Zoll E Series Defibrillator Specifications

Defibrillator

  • Height: 5.75” (14.6 cm)
  • Width: 13.1” (33.3 cm)
  • Depth: 10.5” (26.7 cm)
  • Weight: 13.2 lbs (5.99 kg)

Pacemaker (Pacer version)

  • Type: VVI demand; asynchronous (fixed rate) when used without ECG leads or in ASYNC pacing mode
  • Pulse Type: Rectilinear, constant current
  • Pulse Shape and Duration: Rectilinear, 40 milliseconds ±2 milliseconds
  • Pulse Amplitude: Variable 0 mA to 140 mA ±5% or 5 mA, whichever is greater Digitally displayed on the monitor (increments or decrements by a value of 2 mA)
  • Pacing Rate: Variable from 30 ppm to 180 ppm ±1.5% (increments or decrements by a value of 2 ppm)

Defibrillator

  • Waveform: Rectilinear Biphasic
  • Energy Selection: Adult Mode: Selectable at 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 85, 100, 120, 150, 200 J (Delivered into 50 O load). Selected using controls on sternum paddles or unit front panel.
  • Charge Time: 6-40 seconds depending on battery life and amount of joules selected.
  • Patient Impedance: Min: 15 oms; Max: 250 ohms
  • Energy Display: The monitor display indicates both selected and delivered energy

ECG Monitoring

  • Patient Connection: 3-lead ECG cable, 5-lead wire ECG cable, paddles, or MFE Pads. Selectable by front panel switch.
  • Input Protection: Fully defibrillator-protected. A special circuit prevents distortion of ECG by pacer pulse. (Pacer version only).
  • Bandwidth: 0.67 Hz – 21 Hz (-3 dB) standard/0.05 Hz – 150 Hz Diagnostic 0.67 Hz – 27 Hz and 1 Hz – 21 Hz user-configurable
  • Lead Selection: Displayed on the monitor
  • ECG Size: 0.5, 1, 1.5, 2, 3 cm/mV (Centimeter per millivolt) display on monitor
  • Heart Rate: Digital display; Range: 0 bpm – 300 bpm; Accuracy: ±5%

CPR Monitoring

  • Compression Depth: 0.75 to 3 inches ±0.25 inches 1.9 to 7.6 cm ±0.6 cm
  • Compression Rate: 50 to 150 compressions per minute

Display

  • Screen Type: High resolution, color liquid crystal display (LCD)
  • Screen Size: 5.63 inches (14.3 cm) diagonally
  • Sweep Speed: 25 mm/s
  • Viewing Time: 4 seconds

Recorder

  • Paper: 80 mm thermal (grid width); 90 mm (paper width)
  • Speed: 25 mm/s or 50 mm/s (apparent), configurable for 12 lead output
  • Delay: 6 seconds
  • Annotations: Time, date, defib energy, heat rate, pacer output (Pacer version only), QRS sync marker, ECG SIZE, lead, alarm, DEFIB TEST OK/FAIL, ANALYZE ECG, PADS OFF, ANALYSIS HALTED, NOISY ECG, SHOCK ADVISED, NO SHOCK ADVISED, ECG TOO LARGE, and diagnostic bandwidth.
  • Printing Method: High resolution, thermal array print head
  • Print-out Modes: Manual or automatic; user-configurable
  • On/Off Control: Front panel and paddle

PCMCIA Card

  • Capacity: Standard Series II Flashcard – 2, 4, 16, or 32 Mb
  • Audio Recording: Digital compressed audio data

Battery Packs

  • Lithium Ion
    • Weight: 1.5 lbs (0.68 kg)
    • Voltage: 4.2 Volts per cell; 3 cells wired in series
    • Recharge Time: 7 hours or less with an integral charger
  • Rechargeable, Sealed Lead Acid
    • Weight: 2.2 lbs (1 kg)
    • Voltage: 2 volts per cell; 5 cells wired in series
    • Charge Time: 4 hours or less with an integral charger



General Information About Defibrillators

Why Defibrillation?

  • Sudden Cardiac Arrest (SCR)-Rapid irregular rhythm causing heart to quiver
  • Cause: Ventricular Fibrillation (VF)
    • Can lead to death if emergency shock not delivered
  • Defibrillation – to counteract fibrillation

Defibrillator

  • Device used to administer an electric current (shock) to the heart
  • Types of Defibrillators
    • Manual external
    • Manual Internal
    • Automated External (AED)
    • Semi-Automated External
    • Implantable Cardioverter-Defibrillator (ICD)

Manual External Defibrillator

  • Widely used in Hospitals and clinics
  • Inbuilt EKG reader
  • Clinician Diagnoses the condition and accordingly administers the shock through paddles or pads

Manual Internal Defibrillator

  • Exclusively used in Operation Theatres
  • Charge delivered through internal paddles in direct contact with the heart

Automated External Defibrillator (AED)

  • Used by lay persons requiring little training
  • Built in heart rhythm analyzer
  • Advices whether shock is required

Semi-Automated External Defibrillators

  • Used by paramedics and emergency medical technicians
  • Automated capabilities of AED
  • With ECG display and manual over ride option

Implantable Cardioverter Defibrillator

  • Implants similar to pacemakers
  • Constantly monitor heart rhythm
  • Automatically administers shock for arrhythmias

Types of waveform – Shape of defibrillation current

  • Monophasic damped sine waveform – delivers energy in one direction
    • Relies on adjustment of joule settings
  • Biphasic damped sine waveform – bi-directional current flow
    • Measures impedance of patient and delivers precise dose of electricity
    • Uses significantly low energy levels
    • Decreases risk of burn in Myocardial damage

Refurbished Zoll E Series Defibrillator

Soma Tech Intl offers Zoll E Series Defibrillators
up to 50% below OEM prices with the same service and warranty as new. The Zoll E Series is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Zoll E Series Defibrillator, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on defibrillators. If necessary, parts are replaced to make sure that all aspects of the Zoll E Series Defibrillator are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Zoll E Series Defibrillator is working like new it undergoes a special cosmetic restoration process. The Zoll E Series is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Zoll E Series Defibrillator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Zoll E Series Defibrillator contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase Zoll E Series Defibrillators.
If you or your facility is looking to sell your Zoll E Series , be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Zoll E Series Defibrillators to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our </a href=”https://www.somatechnology.com/Sell-to-Soma/” target=”_blank”>Sell to Soma website.
