Medrad 9500 Features

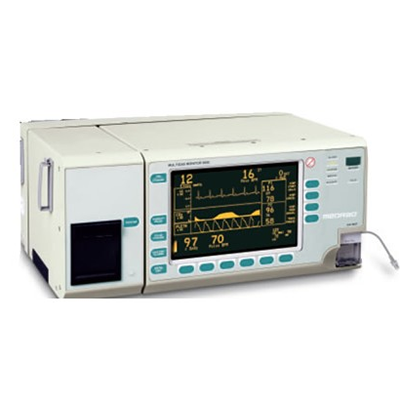

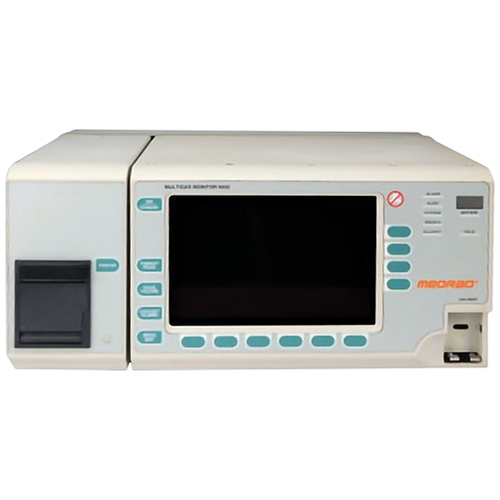

The Medrad 9500 Multigas Monitor is intended for healthcare professionals trained in monitoring respiratory and cardiovascular activity. The Medrad 9500 allows you to choose the measurement capabilities or parameters you need. The ECG monitoring combines fiber optic cables, and short graphic leads to protect the patient from RF heating. The fiber optic cables and MR-compatible components for a clear signal and reliable patient assessment.

  • Large, high-contrast screen and parameter display.
  • User-configurable visual and audible display and alarm.
  • Controllable from inside and outside the scanner room with a remote keypad.
  • Portable, stand-mounted monitor.
  • Modular platform that can be customized and updated to meet your needs.
  • Monitors agent gases, pulse oximetry, ECG, NIBP, Invasive Pressure, CO2.

Medrad 9500 Specifications


  • Height: 8.5” (21.6 cm)
  • Width: 18.6” (47.7 cm)
  • Depth: 13.4” (34.2 cm)
  • Weight: 38 lb (17.2 kg)


  • Type: Backlit electroluminescent
  • Size: 7.7 x 4.8” (19.5 x 12.2 cm)
  • Resolution: 640 x 200

Strip Printer

  • Print Speed: 12.5, 25, or 50 mm/sec for cardiac waveforms 3, 6, 12, or 25
  • Waveforms: Prints up to four groups of waveforms with up to 2 waveforms per group
  • Continuous: Prints a continuous strip chart of group 1 waveforms, with annotation lines printed every 200 mm (8”)

Anesthetic Agents

  • Technique: Piezoelectric Crystal Resonance
  • Gases: Isoflurane, Enflurane, Halothane, Desflurane, Sevoflurane
  • Display Range: 0 to 20%
  • Accuracy: 10% or 0.2%, whichever is greater


  • SpO2: Range: 0 – 100%; Accuracy: ±2% at 70%; ±3% at 50% – 69%; Calibration: Fractional
  • Pulse Rate: Range: 30 to 254 BPM; Accuracy: ±2% at 30 – 100 BPM


  • Heart Rate: Range: 30 – 250 BPM; Accuracy: ±2% at 30 – 100 BPM
  • Lead Selection: I, II, III
  • Bandwidth: 0.5 Hz to 40 Hz


  • Range: 0% to 100% O2
  • Accuracy: ±2% O2 (When % O2 cell is calibrated with 100% O2)
  • Resolution: 1% O2
  • Probe: Galvanic Fuel Cell


  • Range: 10 – 300 mmHg
  • Accuracy: ±4 mmHg
  • Inflate Time: 10 seconds

Invasive Blood Pressure

  • Trace Display Ranges: 0 – 300 mmHg; 0 – 150 mmHg; 0 – 75 mmHg; 0 – 50 mmHg; 0 – 25 mmHg

Refurbished Madrad 9500 agent monitor

Soma Tech Intl offers Medrad 9500 up to 50% below OEM prices with the same service and warranty as new. The Medrad 9500 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on Medrad 9500, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on agent monitors. If necessary, parts are replaced to make sure that all aspects of the Medrad 9500 are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Medrad 9500 is working like new it undergoes a special cosmetic restoration process. The Medrad 9500 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Medrad 9500 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished GE SAM Gas Module contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl also purchases used and pre-owned Madrad 9500. If you or your facility wants to sell your surgical tables, Soma Tech Intl has an experienced purchasing department that makes the process headache and hassle-free. When selling your Madrad 9500 agent monitor to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma Tech Intl not only buys surgical tables but also buys a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to Soma, send us a message here!
