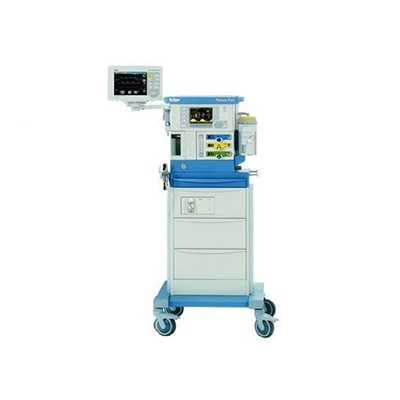

Drager Fabius Tiro

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Drager Fabius Tiro Features

The Drager Fabius Tiro combines everything you need to provide high-quality ventilation in small spaces. Its compact design makes it a natural choice for applications where you need to get the most out of the available room without having to compromise on features or flexibility. With a wide array of options to choose from, the Fabius Tiro can be customized to suit your needs and even be upgraded when those needs change. At its core, the Fabius Tiro anesthesia machine features our powerful and accurate E-vent piston ventilator, which gives you the ability to handle a wide range of acuity levels. The Tiro may be used withO2, N2O, and AIR supplied by a medical gas pipeline system or by externally mounted gas cylinders. Fabius Tiro is equipped with a compact breathing system, providing fresh gas decoupling, PEEP, and pressure limitation. The following ventilation options are available:

  • Volume controlled ventilation.
  • Pressure-controlled ventilation (optional).
  • Manual ventilation.
  • Spontaneous breathing.
  • Provides high-quality ventilation in small spaces.
  • Compact design without having to compromise on features or flexibility.
  • Highly maneuverable cart.
  • Standardized Drager user interface for easy and intuitive operation.
  • All major ventilation modes.
  • High-contrast display.
  • CLIC absorber compatible.
  • Intelligent safety features for enhanced patient protection.

Drager Fabius Tiro Specifications

Base Uint


  • Cart version without COSY: Approx. 22.8 × 53.6 × 24.7 in (57.9 × 136.1 × 62.7 cm)
  • Cart version (incl. COSY): Approx. 30.5 × 53.6 × 33.0 in (77.2 × 136.1 × 83.8 cm)
  • Wall version (incl. mounting bracket and COSY): Approx. 28.4 × 21.9 × 30.5 in (72.1 × 55.6 × 77.5 cm)

Weight and Load

  • Fabius Tiro Cart (incl. COSY) without supplementary cylinders and vaporizers: 256 lb (116 kg)
  • Wall mount (incl. mounting bracket): 105.5 lb (47.8 kg)

Power and Battery Backup

  • Power input: 100 to 240 VAC, 50/60 Hz, 70 VA
  • Operation time with fully charged batteries: Minimum 45 minutes (up to 120 minutes)

Anesthesia Gas Supply Module

  • Range of fresh gas flow indicators: 0.00 to 12.0 l/min
  • Total fresh gas flow meter: 0 to 10 l/min, calibrated with 50% O2 and 50% N2O mixture
  • O2 flush: At 87 psi (6 bar): max. 75 l/min; at 41 psi (2.8 bar): min. 25l/min)
  • Vaporizer mount: Single Drager or Selectatec; optional standby vaporizer parking holder

Ventilator Operating Specifications


  • Ventilator E-vent: Electronically controlled, electrically driven
  • TOperating modes: Standard; Manual/spontaneous, Volume control (VC), Option: pressure control (PC), Option: pressure support (PS), Option: synchronized volume control, Ventilation with PS (SIMV/PS)
  • O2 flush: At 87 psi (6 bar): max. 75 l/min; at 41 psi (2.8 bar): min. 25l/min)
  • Vaporizer mount: Single Dräger or Selectatec; optional standby vaporizer parking holder

Control Input Ranges

  • Breathing frequency (rate): 4 to 60 bpm
  • Positive end-expiratory pressure (PEEP): 0 to 20 cm H2O
  • Inspiration/expiration ratio (Ti:Te): 4:1 to 1:4
  • Pressure limit (Pmax): 15 to 70 cm H2O
  • Tidal volume (Vt): 20 to 1,400 ml in volume control; 20 to 1,100 ml in SIMV/PS
  • Inspiration pause (Tip:Ti): 0 to 50%
  • SIMV inspiratory time: 0.3 to 4.0 sec
  • Inspiratory pressure (Pinsp): PEEP +5 to 65 cm H2O
  • Inspiratory flow (InspFlow):> 10 to 75 l/min in volume and pressure control; 10 to 85 l/min in pressure support
  • Pressure support level (PPS): PEEP +3 to 20 cm H2O
  • Min. frequency for apnea ventilation (freq. in min.): 3 to 20 bpm and “OFF”
  • Trigger level: 2 to 15 l/min
  • Integrated safety functions: Sensitive oxygen ratio controller (S-ORC) guarantees a minimum O2 concentration of 23% in an O2/N2O mixture. N2O is cut off if the O2 fresh gas valve is closed or if the O2 flow is less than 0.2 l/min. Audible and visual (flashing red LED) indications turn on in the event O2 pressure drops below 20 psi (1.38 bar) ±4 psi (0.27 bar). In the event of electricity and battery failure, manual ventilation, gas delivery, and agent delivery are possible. The positive pressure relief valve opens at 75 ±5 cm H2O. The negative pressure relief valve opens at –8 ±2 cm H2O.

Ventilator Monitoring

  • Monitoring: Continuous monitoring of inspiratory O2 concentration, breathing frequency, tidaln volume expiratory, expiration, minute volume, peak airway pressure, PEEP, and selection of mean or plateau pressure. In addition, all fresh gas flow information is displayed as virtual flow tubes.
  • Expiratory minute volume range: 0 to 99 l/min
  • Control screen: 6.5 in (16.5 cm); black/amber (color mode option)

Breathing System

  • Volume of CO2 absorber: 1.5 l (standard) [option: prefilled Dräger Sorb CLIC absorber with 1.2 l volume]

Gas Supply and Connection

  • Gas supply: O2, N2O, and air
  • Cylinder yokes: O2 and N2O pin-indexed hanger yokes


  • Communication interface: 1 × RS232 (standard) [additional RS232 optional]
  • Protocols: Vitalink and Medibus
  • Data available for export: All alarms, pressure, O2, volume and fresh gas flow data, ventilations settings, flow curve, and pressure curve
  • Writing surfaces: Pull-out tray (standard)
  • Additional accessories: Anesthetic gas scavenging system (AGSS), endotracheal suction unit, and integrated O2 flow tube

Refurbished Drager Fabius Tiro Anesthesia Machine

Soma Tech Intl offers Drager Fabius Tiro anesthesia machines up to 50% below OEM prices with the same service and warranty as new. The Drager Fabius anesthesia machine is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts the Anesthesia Machine is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Drager Fabius Tiro. If necessary, parts are replaced to make sure that all aspects of the Anesthesia Machine are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Anesthesia Machine is working like new it undergoes a special cosmetic restoration process. The Drager Fabius Tiro is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Drager Fabius Tiro is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Drager Fabius Tiro contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Drager Fabius Tiro If you or your facility is looking to sell your Fabius Tiro, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Drager Fabius Tiro Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
