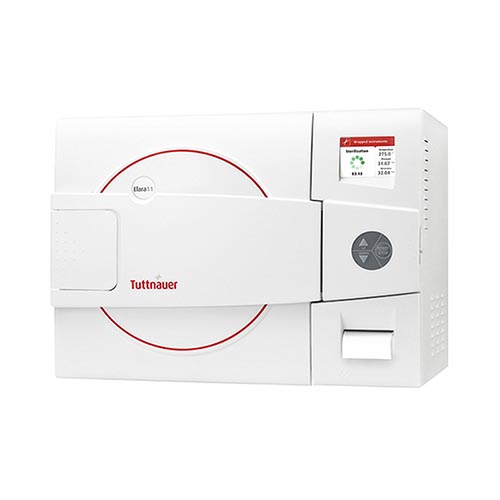

Tuttnauer EZ11 Plus

Quotes in less than 24 hours Download Specifications

Tuttnauer EZ11 Plus Features

The Tuttnauer EZ11 Plus is a fully automatic Autoclave that comes with all the premium features of the EZ 9 Plus but with a larger chamber size. The color display gives the user a brighter viewing area. With the Dynamic air removal technology and closed-door drying, the EZ11 Plus is more efficient. The tuttanuer’s autoclaves use steam as a sterilizing agent to completely sterilize surgical and non-surgical instruments. Steam Sterilization of medical instruments is a safe and effective way to clean.

  • The newly designed, ergonomically friendly EZGlide door features a sleek modern look and effortless opening and closing.
  • Innovative EZView Multi-Color Display offers real-time cycle information that is easy to read, even from a distance. The EZView displays cycle parameters, temperature, and pressure in the chamber. During a cycle, each stage is displayed with an active color wheel and text.
  • Closed door drying, meaning the door remains closed through the dry cycle to maintain sterility and ensure efficient drying. A high-efficiency air pump circulates filtered air through the chamber for fast drying. 0.2µ HEPA filter (replaceable).
  • Comprehensive 2-year parts & labor warranty and 10-year chamber warranty.
  • 11″ diameter X 19.8″ deep chamber and flexible loading options. The exceptionally deep 19.8” chamber works in a variety of loading options to suit any office:
  • Use the 5 full-sized trays for packs/pouches
  • Use the tray rack (included) to accommodate 4 full plus 4 half-sized cassettes…no additional cassette rack to buy!
  • Use the optional Tuttnauer pouch rack (model AR910) to encourage proper loading. One pouch rack is included with each EZ11Plus.
  • Front or top water fill options: accessible EZFill front or top water fill option to enable easier filling of the reservoir.
  • USB Port enables users to easily transfer cycle data via a flash drive to a PC.
  • Network Port allows for connection to a local network to provide remote monitoring of the system when used with optional RPCR Software. The network port is located in the rear of the unit.
  • Dynamic Air Removal Technology to effectively remove air from the chamber.
  • Designed to meet the most current sterilization standards ANSI/AAMI ST55.
  • Optional printer documents a detailed history of each cycle.

Tuttnauer EZ11 Plus Autoclave Specifications


  • Height: 17.3 in (440 mm)
  • Width: 20.9 in ( 530 mm)
  • Depth: 24.8 in ( 630 mm)
  • Weight: 122 lbs (56kg)

Chamber Dimensions

  • 11in x 19.8 in ( 230 mm x x504 mm)
  • Chamber Volume 7.5 gal – 28.5 liters
  • Tray Dimensions
    • Height: 0.6 in (16 mm)
    • Wight: 6.7 in (169 mm)
    • Depth: 16.3 in ( 413 mm)
  • No. of trays: 5


  • Current: 1400 W – 12 A
  • Voltage – Frequency: 120v – 50/60 Hz

Refurbished Tuttnauer EZ11 Plus Autoclave

Soma Tech Intl offers the Tuttnauer EZ11 Plus Autoclaves up to 50% below OEM prices with the same service and warranty as new. The Tuttnauer EZ11 Plus is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Tuttnauer EZ11 Plus, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on autoclave systems. If necessary, parts are replaced to make sure that all aspects of the Tuttnauer EZ11 Plus are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Tuttnauer EZ11 Plus is working like new it undergoes a special cosmetic restoration process. The Tuttnauer EZ11 Plus is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Tuttnauer EZ11 Plus is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Tuttnauer EZ11 Plus systems contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Tuttnauer EZ11 Plus autoclave. If you or your facility is looking to sell your Tuttnauer EZ11 Plus system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Tuttnauer EZ11 Plus to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
