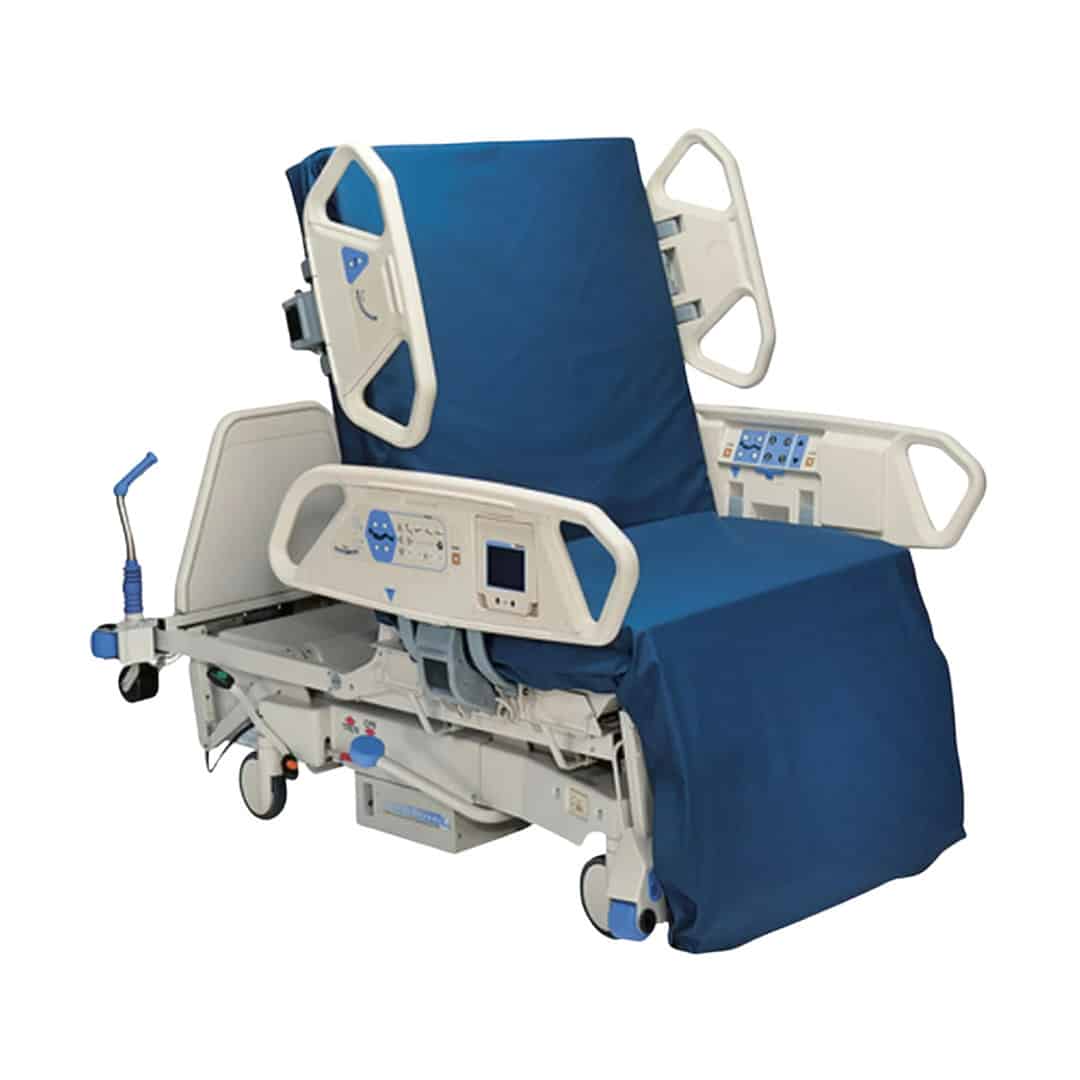

Baxter Hillrom TotalCare P1900 Bed System
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Baxter Hillrom TotalCare P1900 Features
The Baxter Hillrom TotalCare P1900 Bed System is a comprehensive, modular acute care bed designed for maximum versatility across care environments, including ICU, critical care, step-down, medical/surgical, and emergency departments. The TotalCare bed integrates advanced mechanical, hydraulic, pneumatic, and electronic systems to provide enhanced patient safety, caregiver efficiency, and therapeutic functionality.
- Modular Design: Configurable with various optional modules to suit specific patient and facility needs.
- Advanced Positioning: Offers a wide range of positions including Chair, Chair Egress, Recliner, Trendelenburg, Reverse Trendelenburg, and CPR.
- Patient Safety Systems: Includes bed exit detection, nurse call integration, siderail controls with lockout features, and a comprehensive alarm system.
- Caregiver Efficiency: Features Point-of-Care siderail controls, HandsFree emergency releases, and optional powered transport (IntelliDrive).
- Pressure Management: Compatible with advanced air surfaces for pressure injury prevention.
TotalCare P1900 Specifications
Safe Working Load
- 500 lb (227 kg) (patient and equipment)
Height Range
- Low Position: Between stepped sides, 14.5 in – 15.5 in (36.8 cm – 39.4 cm)
- High Position: Between stepped sides, 33.5 in – 34.5 in (85.9 cm – 87.6 cm)
Minimum Under Bed Clearance
- 4.75 in (12.07 cm)
- 4.25 in (10.80 cm) (“B” model beds and newer)
- 1.25 in (3.18 cm) (IntelliDrive Transport System Beds)
Overall Width
- Siderails Raised: 40.5 in (102.9 cm)
- Siderails Lowered: 37 in (94 cm)
- Distance Between Casters: 25.5 in (64.8 cm)
Overall Length
- Overall Length: 91.5 in (232.4 cm)
- With Roller Bumpers Installed: 92.5 in (235 cm)
- With Transport Shelf: 93.5 in (237.5 cm)
Foot Section Dimensions
- Width: 28.88 – 29.13 in (73.36 – 73.99 cm)
- Length: 26.75 – 27.25 in (67.36 – 73.99 cm)
Articulating Deck Length
- Length: 81.75 – 82.25 in (207.65 – 208.92 cm)
Movements
- Maximum Head Elevation: 75°
- Maximum Knee Elevation: 20°
- Maximum Foot Elevation: 85° down
- Maximum Foot Retract: 12 in (30 cm)
- Maximum Trendelenburg: 15°
- Maximum Reverse Trendelenburg: 15°
- Maximum Emergency Trendelenburg: 20°
Bed Weight
- With Minimum Options: 525 lb (238 kg)
- With Maximum Options: 585 lb (265 kg)
Casters
- Diameter: 5 in (13 cm)
Sleep Surface Length
- 83 in (211 cm) Total
- 56 in (142 cm) Primary Section
- 27 in (69 cm) Foot Section
Sleep Surface Width
- 35 in (89 cm) Primary Section
- 31 in (69 cm) Foot Section
Scale
- Maximum Scale Weight: 400 lb (181 kg)
Refurbished Hill-Rom TotalCare P1900 Bed System
Soma Tech Intl offers the Baxter Hillrom TotalCare P1900 bed system up to 50% below OEM pricing, while providing the same service and warranty as new. The Hillrom acute care bed is carefully refurbished both technically and cosmetically to ensure it looks and functions like new. When refurbishment begins on the Hill-Rom TotalCare, our in-house biomedical engineers, certified and experienced in hospital beds, thoroughly inspect and test the system. If necessary, parts are replaced so that every aspect of the Hillrom P1900 meets the original manufacturer’s engineering specifications, ensuring reliable and safe performance.
Once the TotalCare bed is fully functional, it undergoes a detailed cosmetic restoration process. The acute care bed is cleaned, scratches and dents are repaired, surfaces are repainted, and new decals are applied when needed. The result is a TotalCare P1900 bed system that both operates and appears like new. Soma Tech Intl, ISO 13485 certified, ensures every refurbished medical device meets the highest quality standards. Before the Baxter acute care bed is prepared for shipment, it undergoes a final quality control inspection to confirm it is patient-ready.
Soma Tech Intl is also actively seeking to purchase Baxter Hillrom TotalCare P1900 hospital beds. If your facility has a P1900 bed system available for sale, Soma’s experienced purchasing team will guide you through the process. Selling your used or pre-owned Hillrom equipment directly to Soma eliminates the middleman and ensures your facility receives top value. Soma is 100% HIPAA compliant and guarantees your equipment arrives at our facility in the same condition it left yours. Trade-in credit is also available. If you have a TotalCare bed or other hospital bed systems you’d like to sell, contact Soma Tech Intl today.
