Ziehm Exposcop 7000 Features

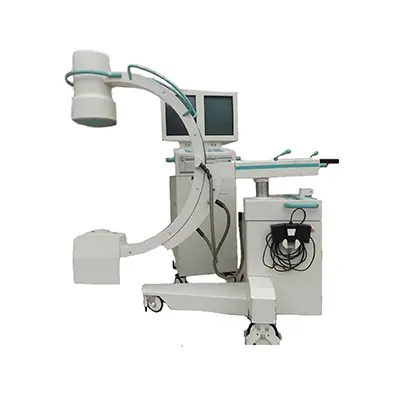

The Ziehm Exposcop 7000 is a c-arm that is mainly used for pain management. The Ziehm Exposcop is the first c-arm to use CCD cameras – and can be used for capturing images of the chest, head, spine, hip, etc. The system offers variable fluoroscopic operations to offer imaging at a lower dosage.

  • High-frequency X-ray generator 20,000 Hz
  • 9/6″ dual field image intensifier
  • Body region and application-specific keys – Extremities, Chest, Head, Spine, Hip, Metal, Soft tissue, 1/2 dose
  • 17” Monitor (anti-glare) 120 Hz
  • 5” Slave Control Monitor on the back of TV monitor (for technician)
  • Black and White Video Graphic Paper Printer (Optional)

Ziehm Exposcop 7000 Specifications

Dimensions of the C-Arm

    • Source/image receptor distance: 97 cm
    • Vertical free space (generator/i.i.): 75 cm
    • C-arm depth: 68 cm
    • Orbital rotation: 115° / 135°
    • Angulation: ± 225°
    • Swiveling (panning): 0°

Horizontal movement: o cm

  • Vertical movement: 23 cm



  • C-Arm Stand Weight:
    • Ziehm 7000 Plus: Approx. 264 kg ( 23 cm i.i.)
    • Ziehm 7000 Plus ( with flat screen monitor): Approx. 294 kg ( 23 cm i.i.)
  • Monitor Cart
    • Ziehm 7000 Plus with 23” flat screen monitor: Approx. 148 kg
    • Ziehm 7000 Plus with 18” flat-screen Monitor: Approx. 153 kg


  • Fluoroscopy: 40–110 kV / 0.1–6 mA – 40–110 kV / 0.1–6 mA
  • Direct radiography: 40–110 kV / 18–20 mA
  • Operating Frequency: 20 kHz

Image Intensifier

  • Scintillator: Cesium iodide
  • Nominal Sizes: 31 / 23 / (15) cm or 23 / 15 / (10) cm or 15 / 10 cm ( 23 / 15 / (10)cm for the Compact Litho Version)
  • Anti-scatter grid: Pb 8/40

Environmental Conditions

  • Temperature during storage: –10°C to +60°C
  • Relative air humidity in storage: 95%
  • Temperature during operation: +10°C to +35°C
  • Relative air Humidity during operation: 75%

Other Features

  • Iris and slot collimator
  • Fluoroscopic operation from 40 kV to 110 kV at 0.2 – 6 mA and pulse modes
  • Radiographic operation from 40 kV to 110 kV at 20 mA
  • 8 mA mode for a special procedure
  • Image rotation
  • 17” Monitor (anti-glare) 120 Hz
  • 5” Slave Control Monitor on the back of TV monitor (for technician)
  • Frame image storage
  • Last image hold
  • Integrated cable pushers allow for easy maneuverability and positioning
  • Large Patient Diameter Key

Black and White Video Graphic Paper Printer (Optional)

  • High dot density of 10.2 dots/mm 256 shades of grey
  • Picture Size: Approx. 75 x 100 mm or approx. 100 x 100 mm

Printer Modes

  • Normal mode will print the image exactly as it appears on the display.
  • The small mode will reduce two images and prints side by side.
  • Zoom 1.5x mode will print the image after expanding it 1.5 times.
  • Zoom 2X mode will print the image after expanding it 2.0 times vertically and
  • Large mode extracts a vertical strip from the center of the screen and prints it after
    expanding it 2.0 times vertically and horizontally.
  • Flouro Boost
  • Vascular
  • DSA
  • Road Mapping
  • 1000 Image Storage
  • Dual High Res Monitors
  • Touch Control Panel
  • 6/9 Inch Image Intensifier

Refurbished of The Ziehm Exposcop 7000 C-arm

Soma Tech Intl offers the Ziehm Exposcop 7000C-arms up to 50% below OEM prices with the same service and warranty as new. The Ziehm Exposcop 7000 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Ziehm Exposcop 7000, it is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on C-arms. If necessary, parts are replaced to make sure that all aspects of the Ziehm Exposcop 7000 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Ziehm Exposcop 7000 is working like new it undergoes a unique cosmetic restoration process. The Ziehm Exposcop 7000 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Ziehm Exposcop 7000 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Ziehm Exposcop 7000 C-Arms contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Ziehm Exposcop 7000 If you or your facility is looking to sell your Ziehm Exposcop 7000, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Ziehm Exposcop 7000 takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
