Nonin LifeSense LS1-9R
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Nonin LifeSense LS1-9R Features

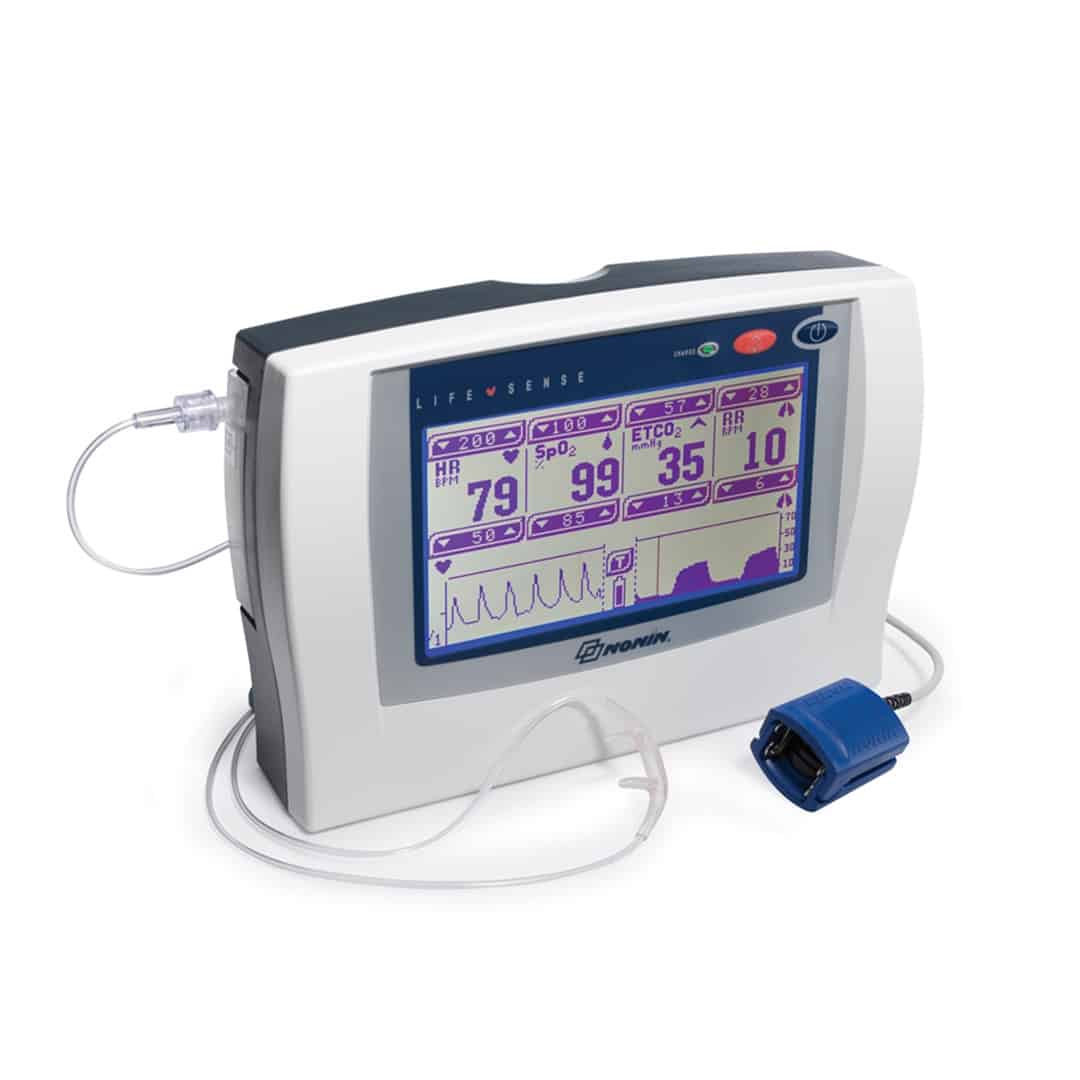

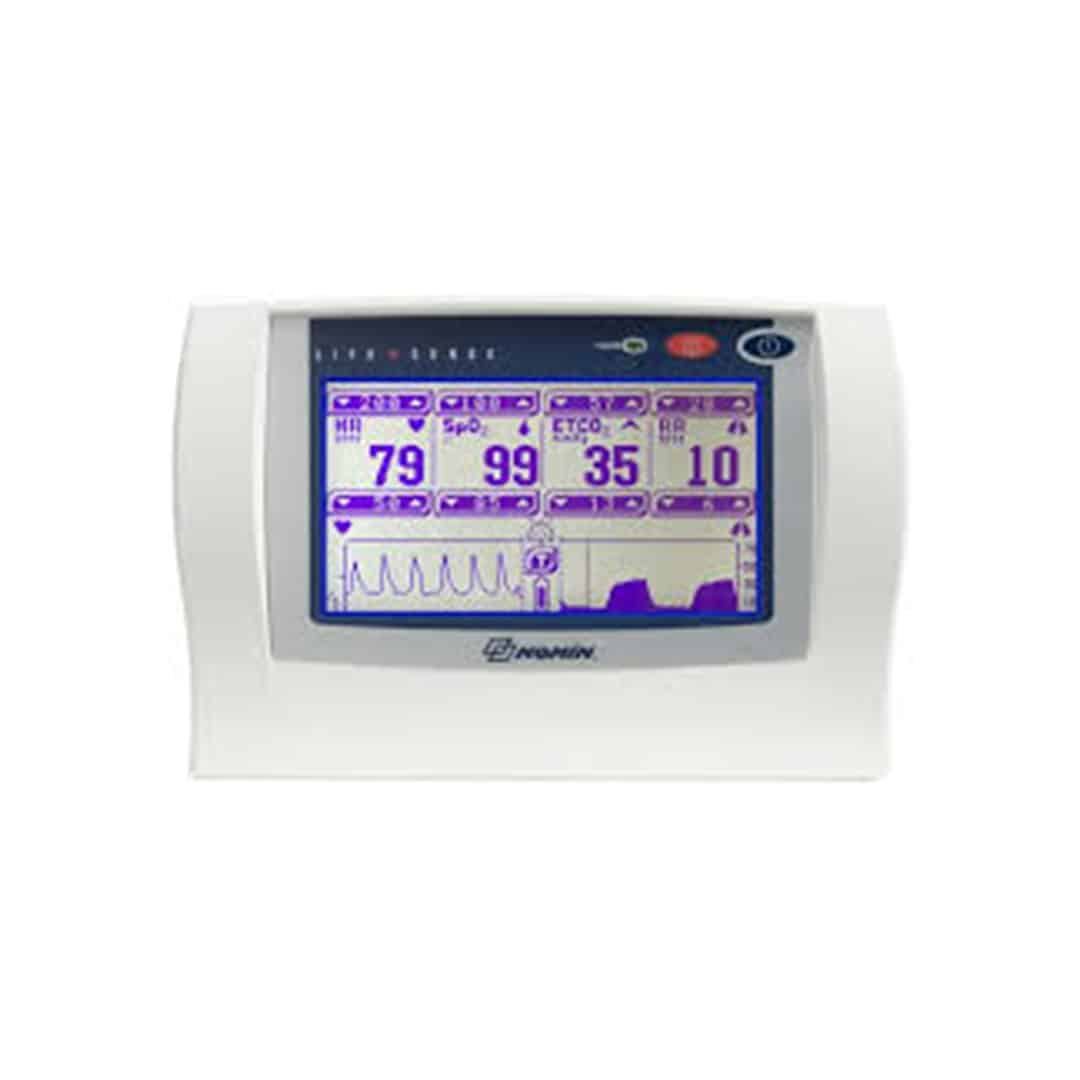

The Nonin LifeSense LS1-9R is a capnography and pulse oximetry monitor used for continuous, non-invasive monitoring of respiratory and oxygenation parameters. It displays end-tidal CO₂ (ETCO₂), respiratory rate, functional oxygen saturation (SpO₂), and pulse rate on a single touch-screen display. The unit is designed for straightforward operation with visual and audible alarms to alert staff to changes in patient status. Its compact housing allows it to be used in fixed care areas, transport situations, emergency response, and home care settings.
- Dual-Parameter Monitoring: Measures sidestream ETCO₂ and SpO₂ at the same time to track ventilation and oxygenation in one device.
- Touch-Screen Display: Full-color LCD screen allows adjustment of alarm limits, review of measurements, and viewing of up to four hours of trend data.
- Battery Operation: Internal rechargeable lithium-ion battery provides approximately eight hours of continuous use per charge.
- Alarm Functions: Adjustable high and low limits for all parameters with visual indicators, audible alerts, and a dedicated apnea/no-breath alarm.
- Patient Compatibility: Can be used with adult, pediatric, and infant patients using Nonin PureLight® SpO₂ sensors and disposable sampling lines such as nasal cannula or oxygen delivery adapters.
- Protective Housing: Lightweight enclosure with IPX1 drip resistance and an included carry case for transport use.
- Data Recording Option: Serial port supports the optional TrendSense memory module for storing more than 72 hours of patient data for later transfer to a computer.
Nonin LifeSense LS1-9R Specifications
Dimensions
- Height: 2.0 in (5.0 cm)
- Width: 7.9 in (20.0 cm)
- Depth: 5.3 in (13.5 cm)
- Weight: 1.8 lbs (0.8 kg)
Power
- AC Input (Charger): 120 VAC, 60 Hz (USA/Canada). Input to monitor: 12 VDC, 800mA.
- Battery: Internal, rechargeable Lithium-Ion (Li-Ion). Not user-replaceable.
- Battery Life: 8 hours
- Charge Time: 17 hours full charge
Environmental Conditions
- Operating Temperature: 23°F to 104°F (-5°C to +40°C)
- Operating Humidity: 10% to 95% relative humidity (non-condensing)
- Storage Temperature: -4°F to 122°F (-20°C to +50°C)
- Storage Humidity: 10% to 90% relative humidity (non-condensing)
Pulse Oximeter Specifications
- SpO₂ Range: 0 to 100%
- SpO₂ Accuracy: Varies by sensor model. Typically ±2 digits for adults over 70% saturation.
- Pulse Rate Range: 18 to 255 beats per minute (BPM).
- Pulse Rate Accuracy: Typically ±3 digits.
Capnography Specifications
- ETCO₂ Range: 0 – 9.9 kPa or 0 – 99 mmHg.
- ETCO₂ Accuracy: ±0.2 kPa / ±2 mmHg, +6% of reading.
- Respiration Rate (RR) Range: 3 to 80 breaths per minute.
- RR Accuracy: 3–50 BPM: ±2; 51–80 BPM: ±5.
- Sample Flow Rate: 75 ml/min ± 15 ml/min.
General
- Alarms: Visual and audible. Sound pressure ≤65 dBA at 1 meter.
- Display: Color TFT LCD touchscreen.
- Ingress Protection: IPX1 (Protected against vertically falling water drops).
- Safety Classification: Internally powered, Type BF Applied Part, Continuous operation.
Refurbished Nonin LifeSense LS1-9R Capnography Monitor
Soma Tech Intl offers the Nonin LifeSense LS1-9R Capnography Monitor up to 50% below OEM prices with the same service and warranty as new. The refurbished Nonin LifeSense LS1-9R is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the LifeSense LS1-9R, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on capnography monitors. If necessary, parts are replaced to ensure that all aspects of the LifeSense monitor meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the LS1-9R is functioning like new, it undergoes a specialized cosmetic restoration. The monitor is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Nonin LifeSense LS1-9R is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished capnography monitor, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase capnography monitors. If you or your facility are looking to sell your Nonin LifeSense LS1-9R, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
