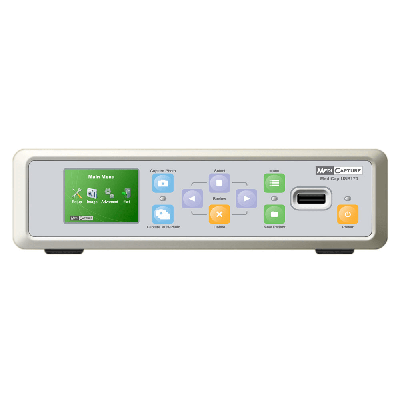

MediCap USB170 Image Capture Device

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

MediCap USB170 Features

The MediCap USB170 is an easy way to capture still images of your medical procedures. Images are recorded directly to a USB flash drive or optional hard drive. When you finish recording, just plug the flash drive into any computer. Then you can view, archive, edit, share, etc.

The USB170 is so easy to use, that you’ll be saving images just minutes after unpacking it – no training is needed and it’s simple to connect. The USB170 is compatible with all standard-definition medical cameras including endoscopes, arthroscopes, surgical microscopes, C-Arms, ultrasounds, etc.

  • Works with endoscopes, arthroscopes, ultrasounds, or any video source with standard outputs
  • Store thousands of images on the included USB flash drive or optional USB hard drive.
  • High-quality images in JPG, TIF, PNG, or DICOM.
  • Collect patient information using any USB keyboard.
  • Record via button, footswitch, or trigger.
  • Network Connection Option
  • The compact, rugged design fits easily on any cart.
  • No training required – a snap to connect and use!

MediCap USB170 Specifications


  • Size: 9.5in x 7.9in x 2.5in (240mm x 200mm x 63mm)
  • Weight: 3 lb 12oz. (approx.) 1.7kg

LCD Monitor

  • 2 1/2”, color (for video confirmation only, not for diagnosis)


  • Rugged metal case with high-impact plastic faceplate


  • 2 1/2” LCD (for video confirmation only; not for diagnosis)

Video In/Out

  • 2D ( 256 gray shedes)
  • Color powerDoppler (CDP) (256 colors)
  • Color Doppler (Color) (256 Colors)

USB Support

  • USB2.0, high speed, 1 front
  • connector, 3 rear connectors


  • Ethernet T10/100 connection via Network Upgrade Kit (optional)

Footswitch / Trigger

  • Hands-free capture
  • Standard 3.5mm mini jack/li>


  • Storage: -40° to +85° C
  • Operating: -20° to +40° C


  • AC 100-240V 50/60Hz
  • 3-prong AC jack


  • USB flash drives or external USB hard drive

Image Formats


Image size

  • 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480 pixels


Refurbished MediCap USB170 Image Capture Device

Soma Tech Intl offers Refurbished MediCap USB170 Image Capture Devices up to 50% below OEM prices with the same service and warranty as new. The MediCap Image Capture Device is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the MediCap the Image Capture Device is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on Image Devices. If necessary, parts are replaced to make sure that all aspects of the Device are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the MediCap USB170 Image Capture Device is working like new it undergoes a special cosmetic restoration process. The Image Capture Device is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Image Device functions and looks new. Soma Technology is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Device is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished MediCap USB170 Image Capture Device contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a MediCap USB170 If you or your facility is looking to sell your MediCap, be sure to contact Soma Tech. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned MediCap Image Capture Devices to Soma Technology takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Technology is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Technology also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our Capture Devices?

Soma Tech Intl offers a wide range of  Medical Capture Devices. If you have any questions about any of our capture devices or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your medical capture device? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
