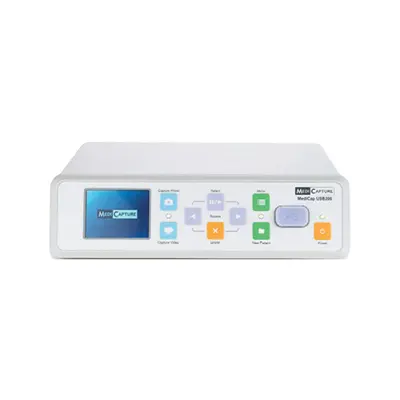

MediCap USB200 Image Capture Device

Quotes in less than 24 hours Download Specifications

MediCap USB200 Features

The Medicap USB200 is the medical industry’s easiest full-featured video recording solution. Your videos and still images are recorded directly to a USB flash drive or optional hard drive. The recorded videos on the MediCap USB200 are DVD-quality but without all the hassles of DVD disks.

Medical Video Recorder

Records from your endoscope, arthroscope, Surgical Camera, Ultrasound, etc. Saves to a flash drive or hard drive that can be accessed from any computer on your network.

Intuitive Use

It’s so easy, no training is needed. Just plug it in and go. You’ll be recording videos within minutes of opening the box.

Medical Grade

With its steel case and fluid-resistant front panel, the USB200 is built to withstand the rigors of the OR, and it’s so compact it will fit on any cart.

  • Captures and stores video and still digital images on a USB flash drive.
  • Color LCD monitor on the front panel.
  • Easy installation.
  • Affordable, small, and portable.
  • Powerful, friendly features.

MediCap USB200 Specifications


  • Width: 240 mm
  • Height: 63 mm
  • Depth:200 mm
  • Weight: 1.5 kg


  • Voltage: 100 – 200 VCA
  • Power Consumption: 15 W
  • 110/240 V3-prong Ac Jack


  • Operation Temperature: -20°C to +40° C
  • Storage Temperature: -40°C to +85° C


  • Video format: MPEG2 (DVD-quality)
  • Audio Format: MPEG1 L2, 2 Channels


  • USB Flash Drives or External USB hard drive
  • MediCapture brand USB flash drives (required)

Image Format

  • Format: JPEG, TIFF, PNG, DICOM
  • Image size: 1024 x 768, 800x 600, 640 x 480 Pixels


  • Inputs: Standard 3.5mm stereo phone jacks
  • Outputs: Standard 3.5mm stereo phone jacks


  • Input: 1xBNC, 1x S-Video ( S-VHS, Y/C)
  • Output: 1xBNC, 1x S-Video ( S-VHS, Y/C)


  • 200 Hz-15kHz, 1W ( for audio confirmation only)

LCD Monitor

  • 2.5 in, full color (for Navigation Only)

Kit Contents

  • MediCap USB200
  • USB flash drive
  • video cables
  • power cable
  • User guide

Refurbished MediCap USB200 Image Capture Device

Soma Tech Intl offers Refurbished MediCap USB200 Image Capture Devices up to 50% below OEM prices with the same service and warranty as new. The MediCap Image Capture Device is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the MediCap the Image Capture Device is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on Image Devices. If necessary, parts are replaced to make sure that all aspects of the Device are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the MediCap USB200 Image Capture Device is working like new it undergoes a special cosmetic restoration process. The Image Capture Device is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Image Device functions and looks new. Soma Technology is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Device is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished MediCap USB200 Image Capture Device contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a MediCap USB200 If you or your facility is looking to sell your MediCap, be sure to contact Soma Tech. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned MediCap Image Capture Devices to Soma Technology takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Technology is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Technology also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
