Stryker Physio-Control LUCAS 3
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Stryker Physio-Control Lucas 3 Features

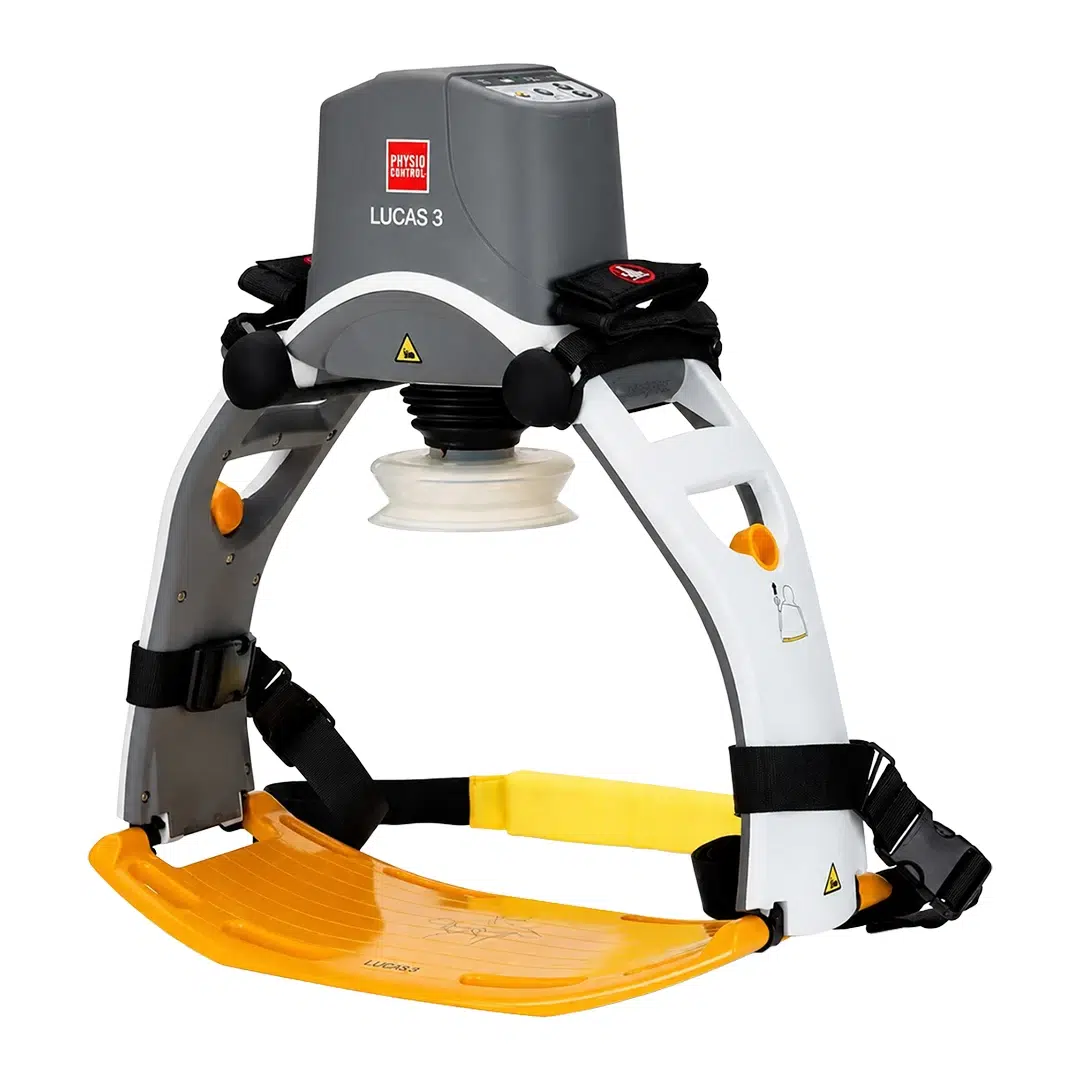

The Stryker Physio-Control Lucas 3 is an chest compression device used during CPR when manual compressions aren’t practical, like during a transport or a long resuscitation effort. It delivers compressions at a fixed rate and depth, so quality doesn’t drop off as rescuers get tired. The device connects to the LIFENET System over Wi-Fi, so a facility can push protocol settings to its whole fleet and pull usage reports after each event. It weighs under 18 pounds with the battery attached, and a full charge runs for about 45 minutes. The suction cup design is also compact enough to stay in place through defibrillation and cath lab procedures.
- Consistent Compressions: Delivers a fixed rate and depth no matter how long CPR continues.
- LIFENET Connectivity: Sets protocols and pulls usage reports wirelessly over Wi-Fi.
- Compact and Lightweight: Weighs about 17.7 pounds with the battery attached.
- 45-Minute Battery Life: Runs on a rechargeable battery, with an external power option for longer use.
Stryker Physio-Control Lucas 3 Specifications
Dimensions
- Height: 22.0 in (56 cm)
- Width: 20.5 in (52 cm)
- Depth: 9.4 in 24 cm
- Weight: 17.7 lb (8.0 kg) (with Battery)
Compression Therapy
- Rate: Configurable to 102, 111, or 120 ± 2 compressions per minute; fixed or variable during use (factory default: 102 ± 2 cpm)
- Depth: Configurable from 1.8 to 2.1 ± 0.1 in (45 to 53 ± 2 mm); fixed during operation (factory default: 2.1 ± 0.1 in / 53 ± 2 mm)
- Modes: ACTIVE 30:2 (30:2 or 50:2 ratio) or ACTIVE Continuous
Battery
- Type: Rechargeable Lithium-ion Polymer (LiPo)
- Capacity: 3300 mAh typical (86 Wh)
- Voltage: 25.9 V nominal
- Run Time: 45 minutes typical (nominal patient); extended run time available when connected to external power
- Charge Time: Under 2 hours in device with external power supply; under 4 hours in external battery charger
- Operating Input Voltage: 12-28 V DC
- Power Supply Input: 100-240 VAC, 50/60 Hz
- Power Supply Output: 24 VDC, 4.2 A
Connectivity
- Wireless Bluetooth and Wi-Fi connectivity for setup and data transfer
- Wireless device configuration and asset management via the LIFENET System
- Post-Event Reports transmitted wirelessly via e-mail (PDF)
- Device Data Storage: 4 GB (supports 8+ years of typical use)
Refurbished Stryker Physio-Control Lucas 3
Soma Tech Intl offers the Stryker Physio-Control Lucas 3 Chest Compression System up to 50% below OEM prices, with the same service and warranty as new equipment. This device goes through both technical and cosmetic refurbishment so it performs and looks like new. During the refurbishment of the Lucas 3, our in-house biomedical engineers, who are trained and certified to work on chest compression systems, carefully inspect and test the mechanism and replace parts as needed so every aspect of the device meets the original manufacturer’s engineering specifications. Once it’s fully operational, the Lucas 3 moves into a detailed cosmetic restoration process: thorough cleaning, correction of minor scratches and dents, surface refinishing where needed, and decal replacement if required. After all of that, it functions and presents like new.
Soma Tech Intl is ISO 13485:2016 certified, so strict quality control standards apply to every piece of capital medical equipment we sell. Before the Stryker Physio-Control Lucas 3 is labeled patient-ready and prepared for shipment, it goes through a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl’s procurement team is also always looking to purchase Stryker Physio-Control Lucas 3 units and other used chest compression systems. If your facility has a Lucas 3 or similar model to sell, get in touch and our purchasing department will walk you through the process from start to finish. Selling directly to Soma cuts out the middleman, so your facility gets the best possible value for its used or pre-owned equipment. We’re 100% HIPAA compliant as well, meaning your equipment arrives at our facility in the same condition it left yours. Soma also offers trade-in credit, so if you have a Lucas 3 or any other used medical equipment to sell, just send us a message.
