MedGyn AL-106
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

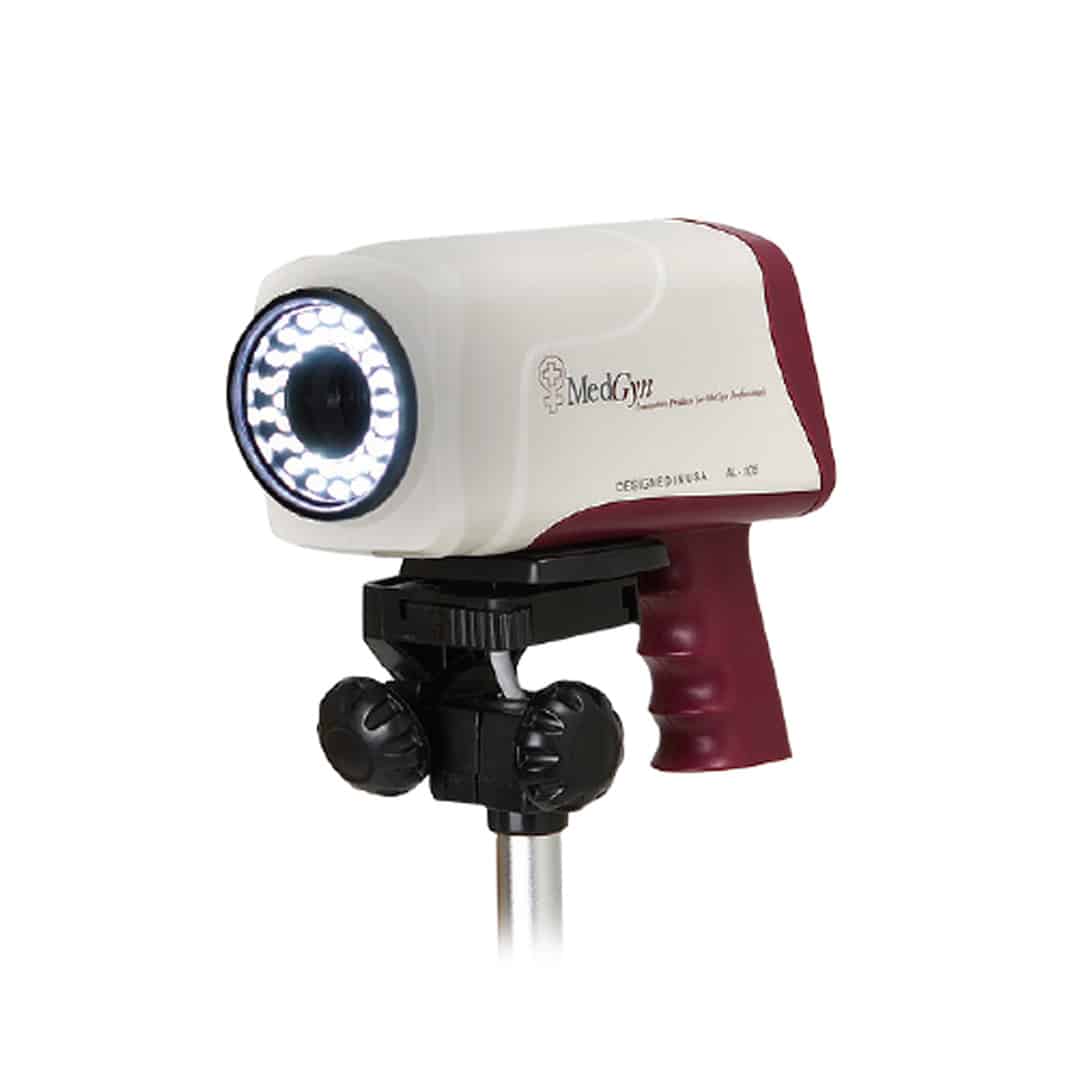

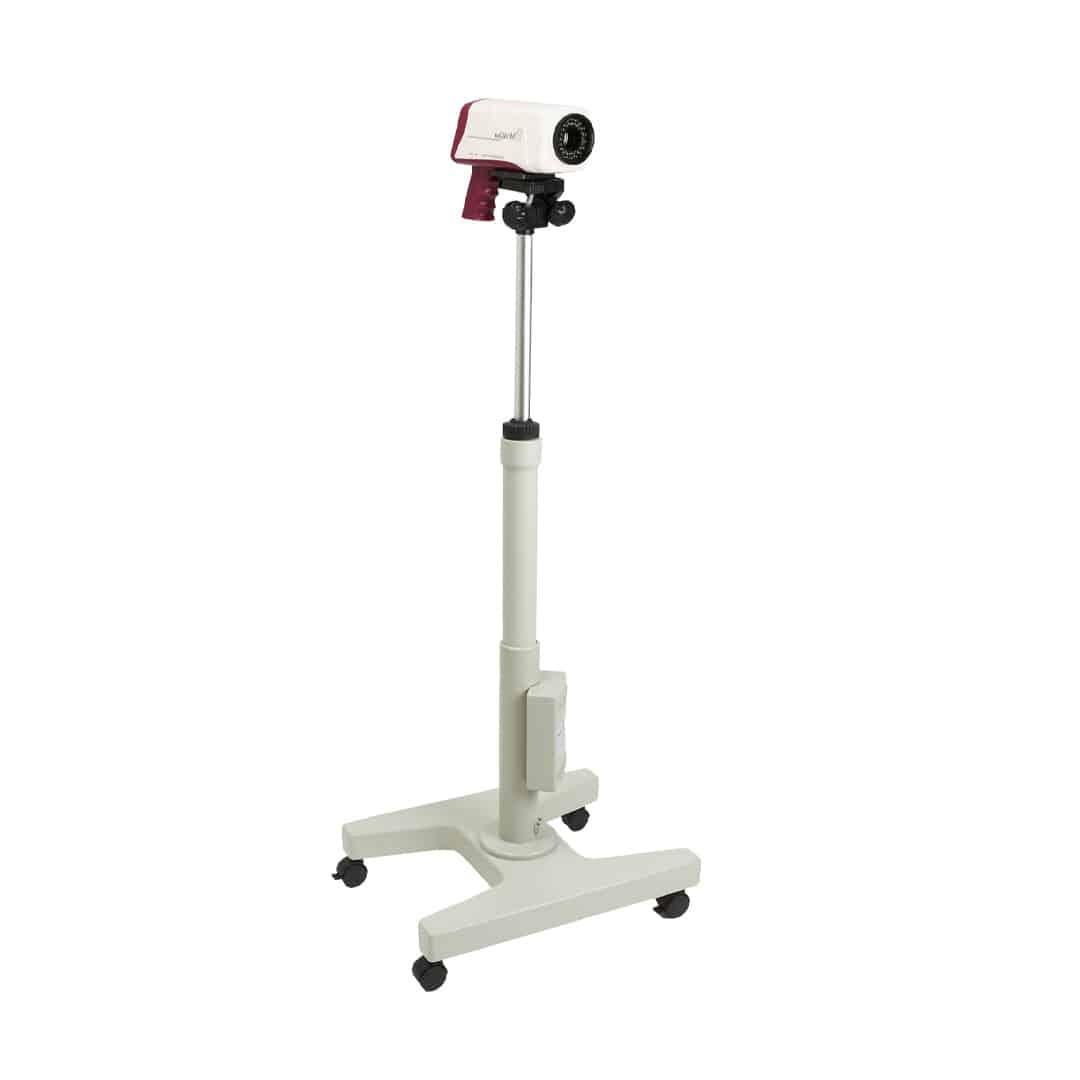

MedGyn AL-106 Digital Video Colposcope Features
The MedGyn AL-106 is a digital video colposcope built for OB/GYN examinations. It replaces the optical design of older systems with a CCD camera and bright LED lighting that give consistent illumination and a long service life. Three green filters in the optical path improve visibility of blood vessels and cervical tissue. The unit connects with MedGyn’s optional image management software to store and organize patient images and data.
- High-Resolution Imaging: The 440K-pixel CCD camera delivers 40× magnification and 550 horizontal lines, giving sharp, detailed views during exams.
- Optical Filter Set: Three green filters enhance image contrast and make tissue structures easier to distinguish.
- Adjustable Viewing Range: Working distance can be set between 200 mm and 300 mm, with a depth of field from 5 mm to 120 mm for flexible positioning.
- Software Connection: Works with MedGyn’s Image & Data Management Software for image capture, patient record organization, and report creation.
- Operational Controls: Includes auto and manual focus, image freeze, and live video output for precise visual work.
- Power Options: Operates on 110/240 VAC (50/60 Hz) and can run on an optional battery backup when mobility is required.
MedGyn AL-106 Specifications
Imaging
- Pixels: 440K
- Magnification: 40x
- Horizontal Resolution: 550 lines
- Camera Type: CCD
- Field of View: 60mm – 6mm
- Light Source: White LED
Operational Specifications
- Working Distance: 200mm – 300mm
- Depth of View: 5mm – 120mm
- Filters: 3x Green
- Focus: Auto/Manual Function
- Video Capability: Yes
- Image Freeze Function: Yes
Power
- Main Power: 110/240VAC 50/60HZ
- Battery Backup Option: Available
Connectivity
- Connection: AV
- Wireless Signal Transmission: Not Specified
Refurbished MedGyn AL-106 Colposcope
Soma Tech Intl offers the MedGyn AL-106 Colposcope up to 50% below OEM prices with the same service and warranty as new. The MedGyn AL-106 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the AL-106, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on colposcopes. If necessary, parts are replaced to ensure that all aspects of the AL-106 meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the AL-106 is functioning like new, it undergoes a specialized cosmetic restoration. The colposcope is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the AL-106 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished colposcope, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase colposcopes. If you or your facility are looking to sell your MedGyn AL-106, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
