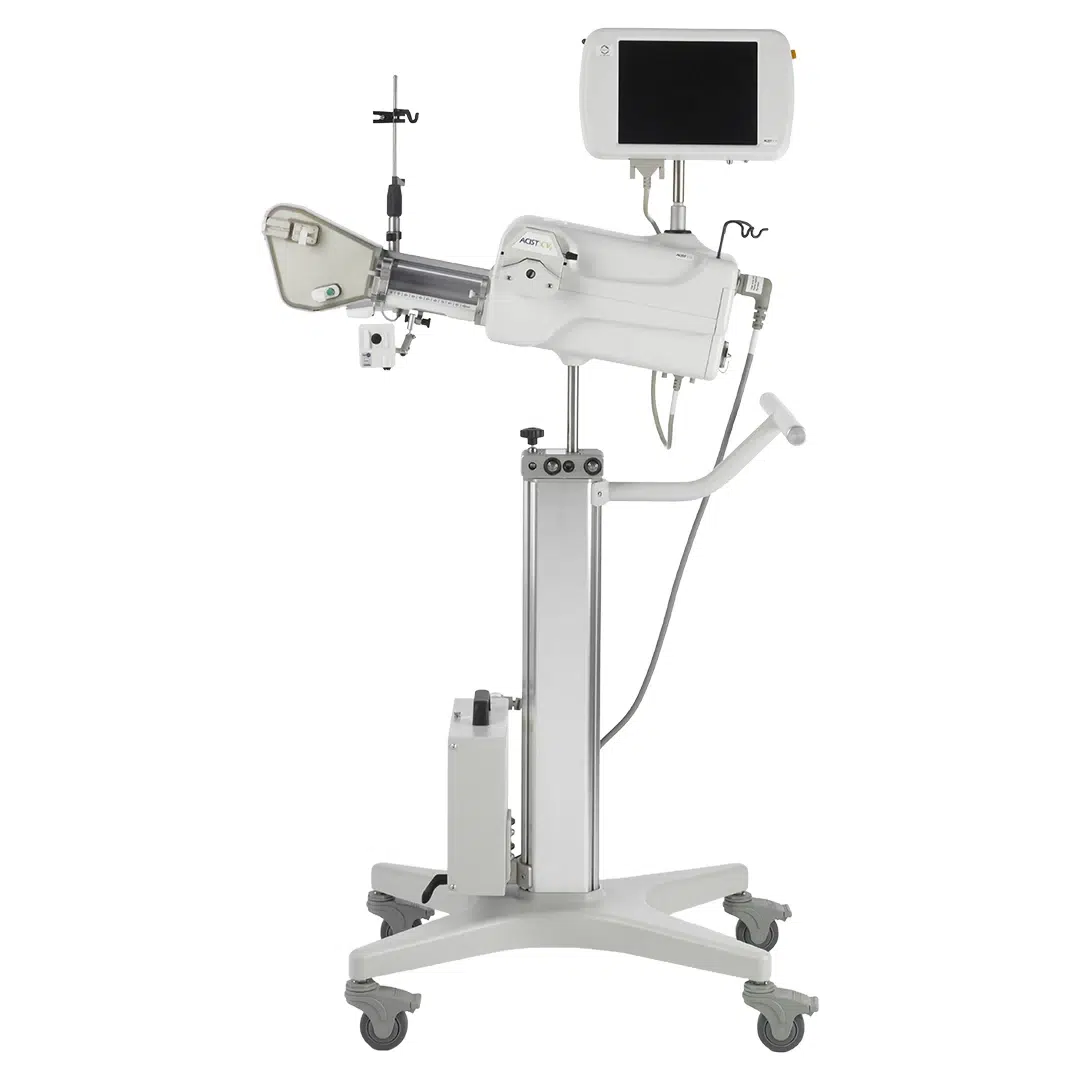

ACIST CVi
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
ACIST CVi Features
The ACIST CVi contrast delivery system is designed to deliver radiopaque contrast media during interventional cardiology, radiology, and vascular procedures. The system utilizes a motor-driven injector and handheld control device, allowing clinicians to precisely manage contrast delivery while maintaining focus on the procedure. Variable flow rate technology enables real-time adjustment of contrast injection based on procedural requirements and patient needs. The system is compatible with a variety of angiographic procedures and can be integrated with select imaging systems to support streamlined workflow within the cath lab. Designed to improve injection control and consistency, the ACIST CVi provides a flexible solution for contrast delivery during minimally invasive vascular interventions.
- Variable Flow Rate Control: Allows clinicians to adjust contrast delivery in real time using the AngioTouch hand controller.
- Motor-Driven Injection System: Provides controlled and consistent contrast media delivery.
- Handheld Operator Control: Enables users to manage injection flow while maintaining attention on fluoroscopic and procedural imaging.
- Imaging System Integration: Compatible with select X-ray and angiography systems for synchronized workflow when properly configured.
- Multi-Specialty Applications: Suitable for interventional cardiology, vascular, and radiology procedures utilizing endovascular techniques.
ACIST CVi Specifications
Dimensions
- Pedestal Cart Footprint: 21 x 25 in (53.3 x 63.5 cm)
- Pedestal Cart Height: 36 in (91.4 cm)
- Total System Weight: 87.7 lb (39.8 kg)
Injection Performance
- Contrast Syringe Capacity: 100 ml
- Contrast Flow Rate: 0.8–40 ml/sec (0.1 ml/sec increments)
- Saline Flow Rate: 1.6 ml/sec
- Injection Volume: 0.8–99.9 ml (0.1 ml increments)
- Pressure Range: 200–1200 psi
- Fill Rate: 3 ml/sec (manual or automatic)
- Rise Time: 0–1 sec (0.1 sec increments)
Injection Programs
- Cardiac Modes: LCA, RCA, LV/Ao, User Defined
- Peripheral Vascular Modes: Pigtail, Selective, Microcatheter, User Defined
- Injection Delay: 0–99.9 sec
- X-ray Delay: 0–99.9 sec
- KVO Range: 0.1–10 ml/min (20-minute timeout)
Monitoring & Safety
- Air Column Detection
- Isolation Manifold Monitoring
- Contrast Source Empty Detection
- Automatic Contrast Syringe Refill Monitoring
- Contrast Source Isolation Monitoring
- Compatible with most X-ray imaging systems for synchronization
User Interface
- 10.5 in (27 cm) Color Touchscreen
- Flexible mounting options: Table Mount, Adjustable Arm, Stationary Stem, or Pedestal Cart
Electrical Requirements
- 100–120 VAC, 50–60 Hz, 10 A maximum
- 200–240 VAC, 50–60 Hz, 5 A maximum
Refurbished ACIST CVi
Soma Tech Intl offers the ACIST CVi contrast delivery system up to 50% below OEM prices, providing the same service and warranty as a new. This contrast injector system undergoes both technical and cosmetic refurbishment to ensure reliable performance and a clean, professional appearance. During the refurbishment of the ACIST CVi, our in-house biomedical engineers, who are highly trained and certified to work on contrast delivery systems, carefully inspect and test the unit. If required, components are replaced to ensure the CVi contrast injector meets the original manufacturer’s engineering specifications.
Once the ACIST CVi contrast delivery system is fully operational, it proceeds through a detailed cosmetic restoration process. The system is thoroughly cleaned, minor cosmetic imperfections are addressed, exterior surfaces are refinished when necessary, and labels or decals are replaced if needed. After completing this refurbishment process, the ACIST CVi both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the ACIST CVi is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and consistent performance.
Soma Tech Intl is actively seeking to purchase ACIST CVi contrast delivery systems. If your facility is interested in selling a CVi contrast injector or other ACIST contrast delivery systems, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned ACIST equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have an ACIST CVi contrast delivery system, contrast injector, or other used medical equipment you would like to sell, send us a message.
