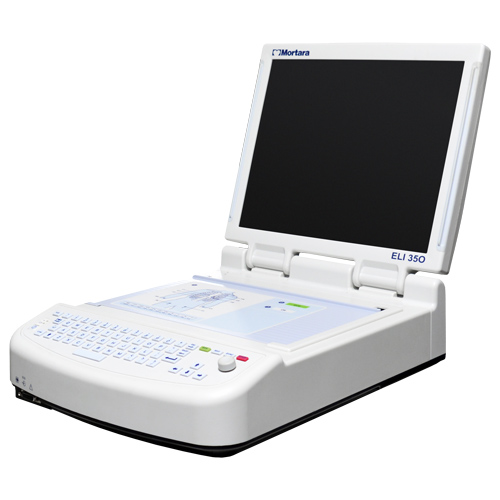

Mortara ELI 350

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Mortara ELI 350 Features

The Mortara ELI 350 is a 12-lead electrocardiograph that can acquire, view, transmit, print, and store ECG data. The ELI 350 from Mortara can optionally be configured with expanded memory, bi-directional connectivity, and DICOM. This Mortara ECG system can also optionally be equipped with a VERITAS resting ECG interpretation algorithm. It has a 17” liquid crystal display to view waveforms and other parameters.

  • 12-Lead electrocardiogram.
  • 17-inch backlit LCD.
  • Prints on full-size 8.5×11 or A4 Z-fold thermal paper.
  • Weighs less than 30 pounds.


Mortara ELI 350 Specifications


  • Height: 17 in. (43.2 cm)
  • Width: 15.5 in. (39.4 cm)
  • Depth: 6 in. (15.2 cm)
  • Weight (with battery but without paper): 27.9 lb (12.68 kg)


  • Instrument Type: 12 or 15-lead resting electrocardiograph
  • Input Channels: Simultaneous acquisition of all 12 or 15 leads
  • Standard Leads: Acquired I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6; optional:V3R, V4R, V7; V7, V8, V9; or E1, E2, E3
  • Digital Sampling Rate: 10,000 s/sec/channel used for pacemaker spike detection; 1000s/sec/channel used for recording and analysis
  • Special Functions: Optional Mortara VERITAS resting ECG interpretation with age and gender-specific algorithm; connectivity options for bi-directional communication; Exercise Stress option with report generation; Late Potential


  • Type: Backlit, 17 ” SXGA color LCD display

Paper and Recorder

  • Paper Type: Full-size (8.5 x 11” or A4), Z-fold thermal paper; 250 sheets stored in paper tray
  • Thermal Printer: Computer-controlled dot array; 8 dots/mm
  • Thermal Printer: Speeds 5, 10, 25, or 50 mm/s
  • Gain Settings: 5, 10, or 20 mm/mV
  • Report Print Formats: Standard or Cabrera: 3+1, 3+3, 6, or 12 channel
  • Rhythm Print Formats: 3, 6, or 12 channels with configurable lead groups


  • Keyboard Type: Elastomer keypad with complete alphanumeric keys, softkey menu, and dedicated function keys. Click the knob or touchpad option
  • Frequency Response: 0.05 to 300 Hz
  • Filters: High-performance baseline filter; AC interference filter 50/60 H z; lowpass filters 40 Hz, 150 Hz, or 300 Hz
  • A/D Conversion: 20 bits (1.17 microvolt LSB)
  • Device Classification: Class I, Type CF defibrillation-proof applied parts
  • ECG Storage: Internal storage up to 200 ECGs; optional expanded up to 500 or 2,000 ECGs
