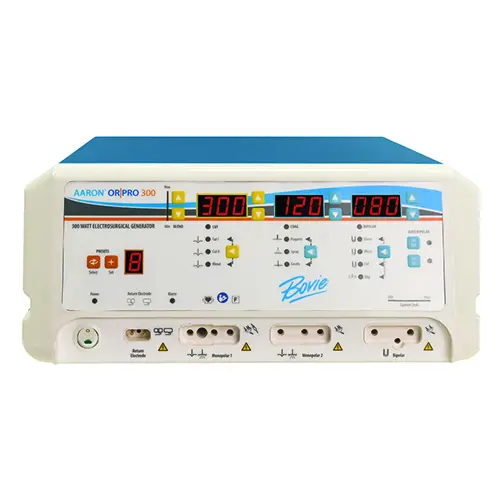

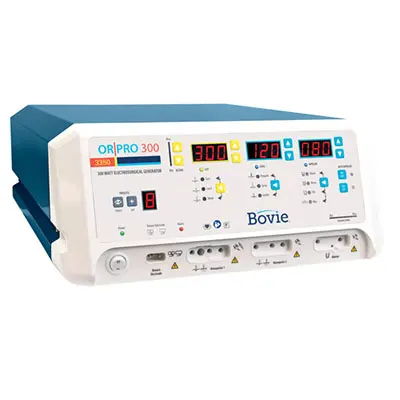

Bovie OR Pro 300
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included. Download Specifications
Bovie OR Pro 300 Features
The Bovie OR PRO 300 Electrosurgical Generator. The system was designed in conjunction with OR clinicians to provide a safe, user-friendly generator to meet all operating room procedure performance demands. This innovative energy-based device offers 13 modes of surgical energy delivery. Special modalities include the advanced Bovie Bipolar, Auto Bipolar options, and special Laparoscopic modes. The OR Pro 300 offers two (2) modes of Pure Cut, four (4) modes of Blend, three (3) modes of Coagulation, Bipolar Coagulation, and Bovie FCFS™ technology allowing the Doctor to move almost effortlessly from Monopolar to Bipolar during a procedure.
- Bovie Bipolar (BBp) – Pulsing coagulation for quick and powerful coagulation of tissue
- Auto Bipolar Intuitive Technology
- Surgical Memory Technology – Recalls the last used power and mode for up to 10 presets
- Adjustable Power During Activation – during all activations, the power can be adjusted up or down in variable steps
Bovie OR Pro 300 Specifications
Dimensions
- Height: 6.5 In (16.5 cm)
- Width: 14.75 In (37.5 cm)
- Depth: 18.1 In (46 cm)
- Weight: < 20 lbs (< 9.07 kg)
Operating Parameters
- Ambient temperature range 10° to 40° C
- Relative humidity 30% to 75%, non-condensing
- Atmospheric pressure 70kPa to 106kPa
- Warm-up time If transported or stored at temperatures outside the operating temperature range, allow one hour for the generator to reach room temperature before use.
Transport
- Ambient temperature range -40° to +70° C
- Relative humidity 10% to 100%, including condensation
- Atmospheric pressure 50kPa to 106kPa
Storage
- Ambient temperature range 10° to 30° C
- Relative humidity 30% to 75%, non-condensing
- Atmospheric pressure 50kPa to 106kPa
General
- Audible/Visible Output Meter: Yes
- Contact Monitoring Systems: BovieNEM
- Contact Monitoring Systems
- Range/Trip Point: 10 ohms or less over entire
- operating range (10C° to 40°C)
- Cooling System: Passive Cooling
- Technology: Isolated RF Output
- Pre-set Feature: Yes
- Monopolar HP Ports: 2
- Dual Activation Tone Alert: Yes
- Connector Ports/Power Switch: White
Bipolar
- Macro Bipolar
- Watts: 150
- VPeak Max Voltage: 600V
- Crest Factor (Typical): 1.5 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Micro Bipolar
- Watts: 80
- VPeak Max Voltage: 450V
- Crest Factor (Typical): 1.5 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Standard Bipolar
- Watts: 50
- VPeak Max Voltage: 300V
- Crest Factor (Typical): 1.5 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Bovie Bipolar
- Watts: 225
- VPeak Max Voltage: 250V
- Crest Factor (Typical): 1.5 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Auto Bipolar
- Watts: 80
- Frequency: 490 kHz ± 4.9 kHz
Monopolar
- Cut I
- Watts: 300
- VPeak Max Voltage: 1000V
- Crest Factor (Typical): 1.7 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Cut II
- Watts: 300
- VPeak Max Voltage: 750V
- Crest Factor (Typical): 1.7 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Blend (1)
- Watts: 200
- VPeak Max Voltage: 1320V
- Crest Factor (Typical): 1.8 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Blend (2)
- Watts: 200
- VPeak Max Voltage: 1475V
- Crest Factor (Typical): 2.0 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Blend (3)
- Watts: 200
- VPeak Max Voltage: 1650V
- Crest Factor (Typical): 2.2 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Blend (4)
- Watts: 200
- VPeak Max Voltage: 1870V
- Crest Factor (Typical): 2.4 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Pinpoint Coagulation
- Watts: 120
- VPeak Max Voltage: 1800V
- Crest Factor (Typical): 3.1 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
- Spray Coagulation
- Watts: 120
- VPeak Max Voltage: 4000V
- Crest Factor (Typical): 6.0 ± 20%
- Frequency: 350 to 450 kHz
- Gentle Coagulation
- Watts: 120
- VPeak Max Voltage: 450V
- Crest Factor (Typical): 1.6 ± 20%
- Frequency: 490 kHz ± 4.9 kHz
