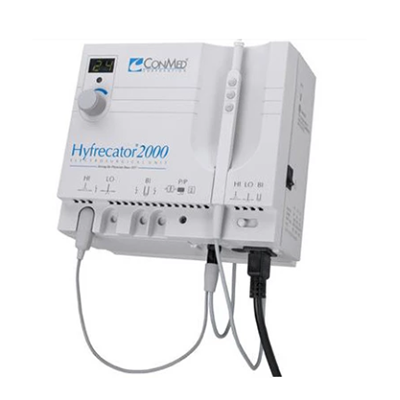

Conmed Hyfrecator 2000

Quotes in less than 24 hours Download Specifications

Conmed Hyfrecator 2000 Features

The Conmed Hyfrecator 2000 is an electrosurgical unit that has a wide range of applications from dermatology, gynecology, ophthalmology, and urology procedures. The Hyfrecator 2000
utilizes two microprocessors to provide great output power and accuracy while keeping patient safety in mind. This Hyfrecator is compatible with your currently existing Hyfrecator accessories, such as bipolar forceps and reusable electrodes.

The Hyfrecator 2000 is safe and simple to use and has a wide range of applications: dermatology (benign and malignant lesions), urology, gynecology, otolaryngology, ophthalmology, plastic surgery, dental/oral surgery, etc. The Hyfrecator 2000 is more powerful, and accurate, and has a wider range of power than the previous model ConMed Hyfrecator Plus 7-797.

The 2000s state-of-the-art electronic circuitry utilizes two microprocessors to provide unsurpassed output power accuracy and patient safety. Whether it’s full power for broad surface coagulation or low power in 1/10-watt increments for delicate facial procedures, 2000 provides the precision you demand.

  • Internal self-diagnostic tests are performed when powered on.
  • Compatible with existing Hyfrecator accessories.
  • Ergonomic design.
  • Precise and accurate power delivery.
  • Lightweight (6 lbs.)

Conmed Hyfrecator 2000 Specifications


  • Height: 7.5” (19 cm)
  • Width: 8.75” (22.2 cm)
  • Depth: 4” (10.2 cm)
  • Weight: 6 lbs. (2.7 kg)

Power Accuracy at Rated Load

  • LO and BI: 0 to 10 W: Greater of 90 mW or 10% of settings 10 to maximum settings: 10% of setting
  • HI: Greater of 1W or 10% of setting
  • RF Frequency: 450 kHz ±50kHz (open circuit)
  • Output Wave Shape: Clipped, damped sinusoidal
  • Line Regulation: ±5% at max. power for a ±10% line voltage
  • Duty Cycle: Intermittent: 30 sec. on, 30 sec. off
  • Audio: Adjustable from >45 dba to =65 dba at 1 meter
  • 60 Hz Leakage: 50 microamps max. third wire of the line cord open


  • Lower output Terminal
    • 0-10 Range: 0.1 watt increments
    • 10-20 Range: 1-watt increments
  • Bipolar & High Output Terminals
    • 0-35 Range: 1-watt increments

Functional Characteristics

  • Hi Mode
    • Max Power Setting (Watts): 35
    • Max Voltage: 8000
    • Rated Load (Ohms) 1000
    • Repetition Frequency (kHz): 24.4
  • LO Mode
    • Max Power Setting (Watts): 20
    • Max Voltage: 3000
    • Rated Load (Ohms) 500
    • Repetition Frequency (kHz): 32.3
  • BI Mode
    • Max Power Setting (Watts): 35
    • Max Voltage: 3000
    • Rated Load (Ohms) 500
    • Repetition Frequency (kHz): 32.3

Environmental Conditions

    • Operating Temperature Range: +10 degrees to +40 degrees C
    • Relative Humidity: 10% to 95% non-condensing
    • Storage Restrictions: -40 degrees to +70 degrees C, 95% humidity N.C

Operating Conditions</h3

  • 10°C to 30°C, 95% RH Non- non-condensing maximum at altitudes between 60 meters below and 3000 meters above mean sea level.

Refurbished Conmed Conmed Hyfrecator 2000 Electrosurgical Unit

Soma Technology, Inc. offers Refurbished Conmed Hyfrecator 2000 Electrosurgical unit Systems up to 50% below OEM prices with the same service and warranty as new. The Conmed Hyfrecator 2000 Electrosurgical Unit is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Conmed Hyfrecator 2000 system is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on the Conmed Hyfrecator 2000 Electrosurgical Unit If necessary, parts are replaced to make sure that all aspects of the pump are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Conmed system is working like new it undergoes a special cosmetic restoration process. The ConMed Hyfrecator 2000 Electrosurgical Unit is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the infant warmer functions and looks like new. Soma Technology is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Conmed Hyfrecator 2000 system is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Conmed Hyfrecator contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Technology, Inc. is also actively looking to purchase a Conmed Hyfrecator 2000 Electrosurgical Unit System if you or your facility are looking to sell your Conmed Hyfrecator 2000, be sure to contact Soma Technology, Inc. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Conmed Hyfrecator 2000 Electrosurgical Unit System to Soma Technology takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Technology is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Technology also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain floor space for new equipment, or looking to upgrade current equipment, contact Soma Technology’s purchasing department at [email protected] or send us a message on our Sell to Soma website.


Questions about our Electrosurgical Units?

Soma Tech Intl offers a wide range of electrosurgical units. If you have any questions about any of our electrosurgical units or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your electrosurgical units? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
