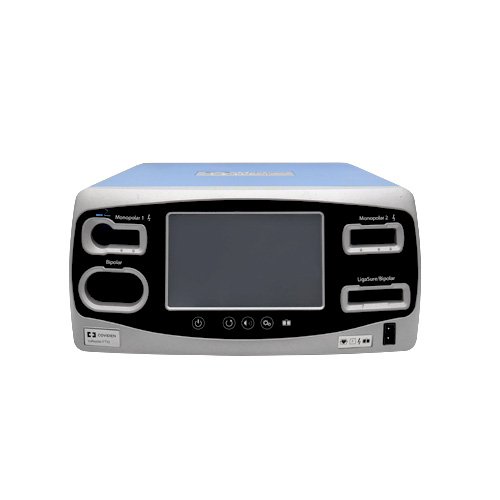

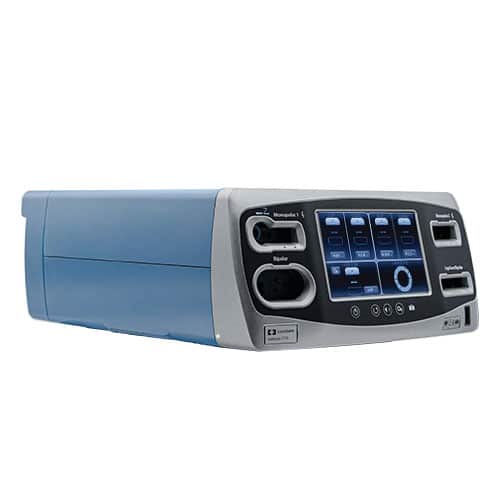

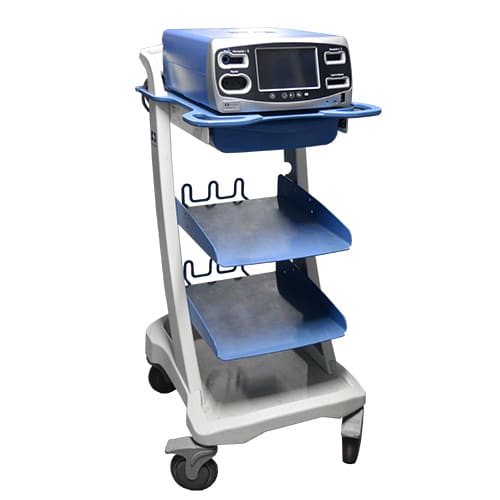

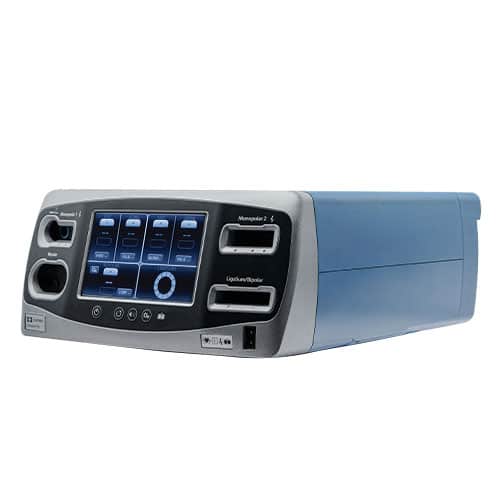

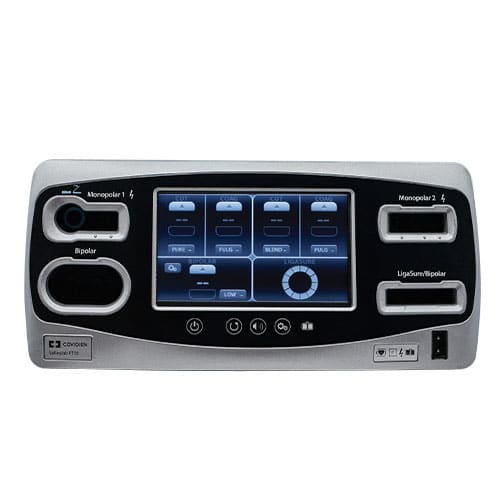

Medtronic Valleylab FT10 Energy Platform
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Medtronic Valleylab FT10 Energy Platform Features
The Medtronic Covidien Valleylab FT10 energy platform delivers precise energy with enhanced performance, resulting in faster sealing and cutting times. Its built-in intelligent TissueFect technology improves the speed and consistency of handheld devices by reading tissue composition in real-time, evaluating device performance 434,000 times per second, and monitoring tissue impedance to ensure effective and efficient energy delivery. The FT10 provides RF energy for monopolar and bipolar surgical applications, tissue fusion, and vessel sealing, featuring a touchscreen interface divided into four sections for easy user input and monitoring. Additionally, the energy platform automatically detects coded handsets and adjusts configurations accordingly. Medtronic Valleylab offers various electrosurgical units, including the Medtronic Covidien Valleylab Force Triad.
- 50% faster sealing times
- Lower jaw temperatures
- Auto bipolar has a faster activation time
- Monopolar performance is improved
- Power by smart generators that manage every energy delivery
- Improves all surgical applications
Medtronic Valleylab FT10 Energy Platform Specifications
Physical Specifications
- Height: 6.7″ (17 cm)
- Width: 14.1″ (35.8 cm)
- Depth: 18.2″ (46.25 cm)
- Weight: 22.3 lbs. (10,1 kg)
Performance
- Faster sealing times: (1-4 seconds vs. 3-6 seconds with ForceTriad)
- Lower max jaw temperature
- Automatic power settings require minimal setup and minimize the need for further handling during surgery
- Simple, intuitive controls and information displays
New ES Settings
- Soft coag
TissueFect Tissue Sensing Technology
- Reads tissue: 434,000 times per second
Bipolar Cable Compensation
Reads cable length and width for consistent electrosurgical output
- Low
- Power Setting Ranges: Off, 1–15 W
- Peak Voltage: 133 V
- Medium
- Power Setting Ranges:16–40 W
- Peak Voltage: 214 V
- High
- Power Setting Ranges: 45–95 W
- Peak Voltage: 462 V
Upgradeable Software
- Ethernet connection (Has WiFi capabilities that are not yet enabled)
General
- Output configuration: Isolated output
- Cooling: Natural convection and fan
- Display: 7 in. LCD touchscreen
- Connector Receptacles: LED illuminated connector readers on the LigaSure/Bipolar receptacle
- Enclosure: Magnesium
- Operating System: Linx
Environmental Parameters
- Operating Temperature: 50 to 104 °F (10 to 40 °C)
- Operating Humidity: 30% to 75% non-condensing
- Operating Atmospheric Pressure: 700 to 1060 millibars
- Transport and Storage Temperature: 14 to 140 °F (-10 to +60 °C)
- Transport and Storage Humidity: 25% to 85% non-condensing
- Transport and Storage Atmospheric Pressure: 500 to 1060 millibars
Internal Memory
- Storage Capacity: 8 GB
Input Power
100-127 VAC
- Line Voltage Full Regulation Range: 90–140 VAC
- Line Frequency: 47-63 Hz
- Max VA Nominal Line Voltage: 950 VA
- Max Mains Current: 9.5 ARMS
- Max Heat Dissipation: 180 W
220-240 VAC
- Line Voltage Full Regulation Range: 198-264 VAC
- Line Frequency: 47–63 Hz
- Max VA Nominal Line Voltage: 950 VA
- Max Mains Current: 4.8 ARMS
- Max Heat Dissipation: 180 W
Leakage
- Touch Current: < 100 µA NC, < 500 µA SFC
- Earth Leakage Current: < 500 µA NC, < 1000 µA SFC
- Patient Auxiliary Current (< 1kHz): < 10 µA NC, < 50 µA SFC
- Patient Auxiliary Current (> 1kHz): Scaled with frequency per IEC 60601-1:2012, but does not exceed 10mA NC/SFC
- Patient Leakage Current: < 10 µA NC, < 50 µA SFC
- Total Patient Leakage Current: < 50 µA NC, < 100 µA SFC
Refurbished Medtronic Valleylab FT10 Electrosurgical Units
Soma Tech Intl offers the Medtronic Covidien Valleylab FT10 electrosurgical unit up to 50% below OEM prices with the same service and warranty as new. The Valleylab FT10 units are not only technically refurbished but also cosmetically refurbished to make them work and look like new. When the refurbishing process starts on the Valleylab FT10, it is carefully inspected and tested by our in-house biomedical engineers, who are highly skilled and certified to work on electrosurgical units. If necessary, parts are replaced to ensure that all aspects of the Medtronic Covidien Valleylab FT10 meet the original manufacturer’s specifications. This ensures that the unit operates as it did when it originally left the manufacturer. After the electrosurgical unit is fully restored, it undergoes a cosmetic restoration process. The unit is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are applied if necessary. After this meticulous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified, guaranteeing the highest quality for all capital medical equipment sold. Before the Medtronic Covidien Valleylab FT10 is labeled patient-ready and packed for shipment, it undergoes a final quality control test to ensure all components are working as intended. If you are looking to buy a refurbished Medtronic Covidien Valleylab FT10 electrosurgical unit, contact Soma at [email protected] or call us at 1-800-438-7662.
Soma Tech Intl is actively looking to purchase Medtronic Covidien Valleylab FT10 electrosurgical units. If you or your facility is looking to sell your Valleylab FT10, be sure to contact Soma Tech Intl. Soma’s experienced purchasing department will guide you through the entire process. Selling your used or pre-owned electrosurgical unit directly to Soma cuts out the middleman, ensuring that your medical facility receives top dollar for your equipment. Soma is 100% HIPAA compliant and guarantees that your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here.
